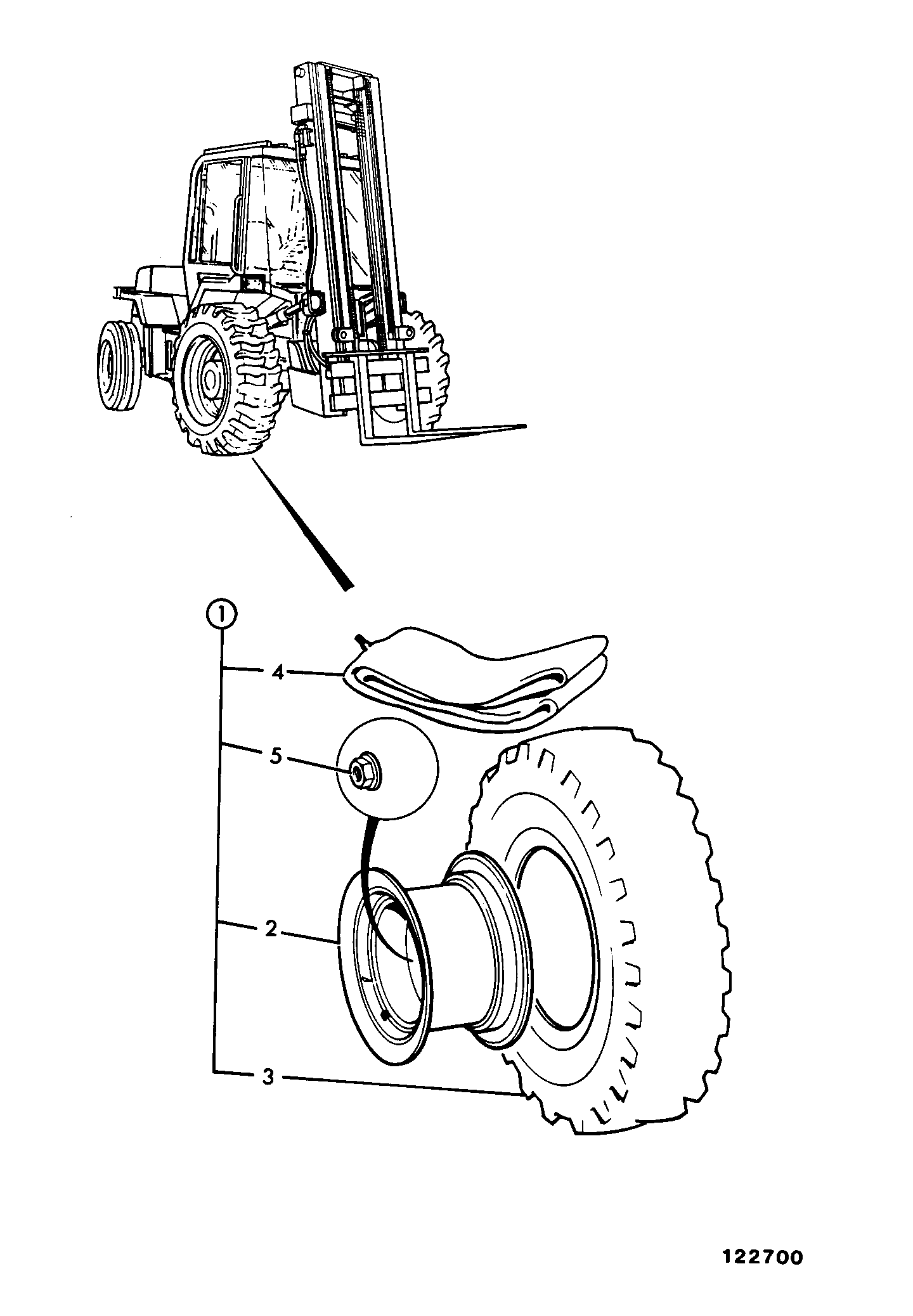

F3-2-8 WHEELS & TYRES 2WD ONLY,FRONT TRACTION RADIAL Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	WHEEL RIM -12X25 41/921400	1	AVAILABLE TO ORDER	$2,025.09	Quantity
3	TYRE 15.5X25 XHA 1 42/105900	1	AVAILABLE TO ORDER	$5,841.28	Quantity
4	TYRE VALVE 151/05201	1	AVAILABLE TO ORDER	$24.00	Quantity
5	WHEEL NUT 3/4"UNF 40/304179 400/N6589	1	3 IN STOCK	$7.98	Quantity

Showing 1 to 4 of 4 parts

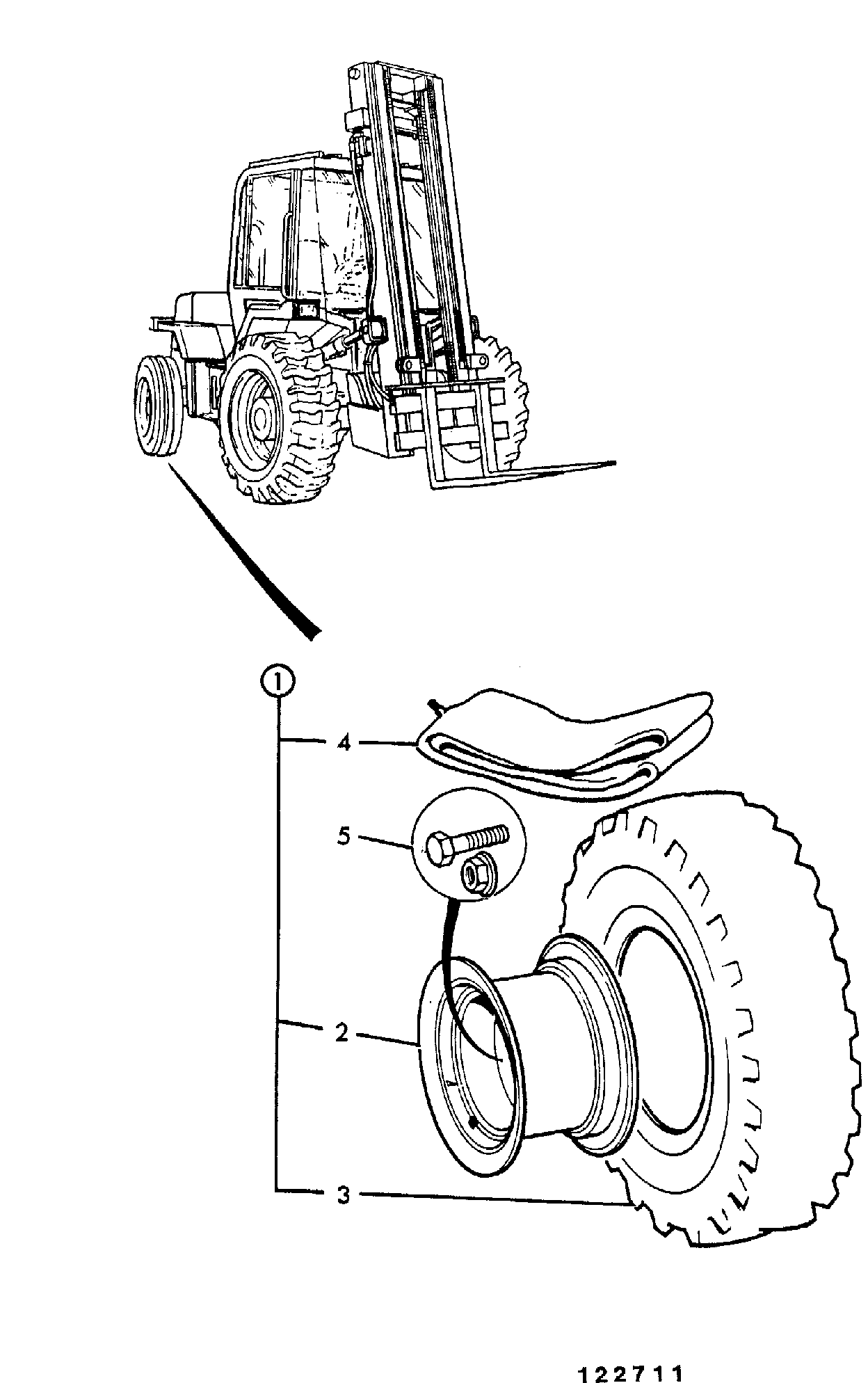

DIAG-F3-2-2-399270 F3-2-2 WHEELS & TYRES 2WD, REAR SUPERSEDED BY F3-2-19 & F3-2-20
