F3-2-7 WHEELS & TIRES 2WD, 4WD, FRONT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	WHEEL RIM -12X25 41/921400	1	AVAILABLE TO ORDER	$2,025.09	Quantity
4	VALVE TR621A Tyre Vale 159/26901	1	AVAILABLE TO ORDER	$123.39	Quantity
5	WHEEL NUT 3/4"UNF 40/304179 400/N6589	1	3 IN STOCK	$7.98	Quantity

Showing 1 to 3 of 3 parts

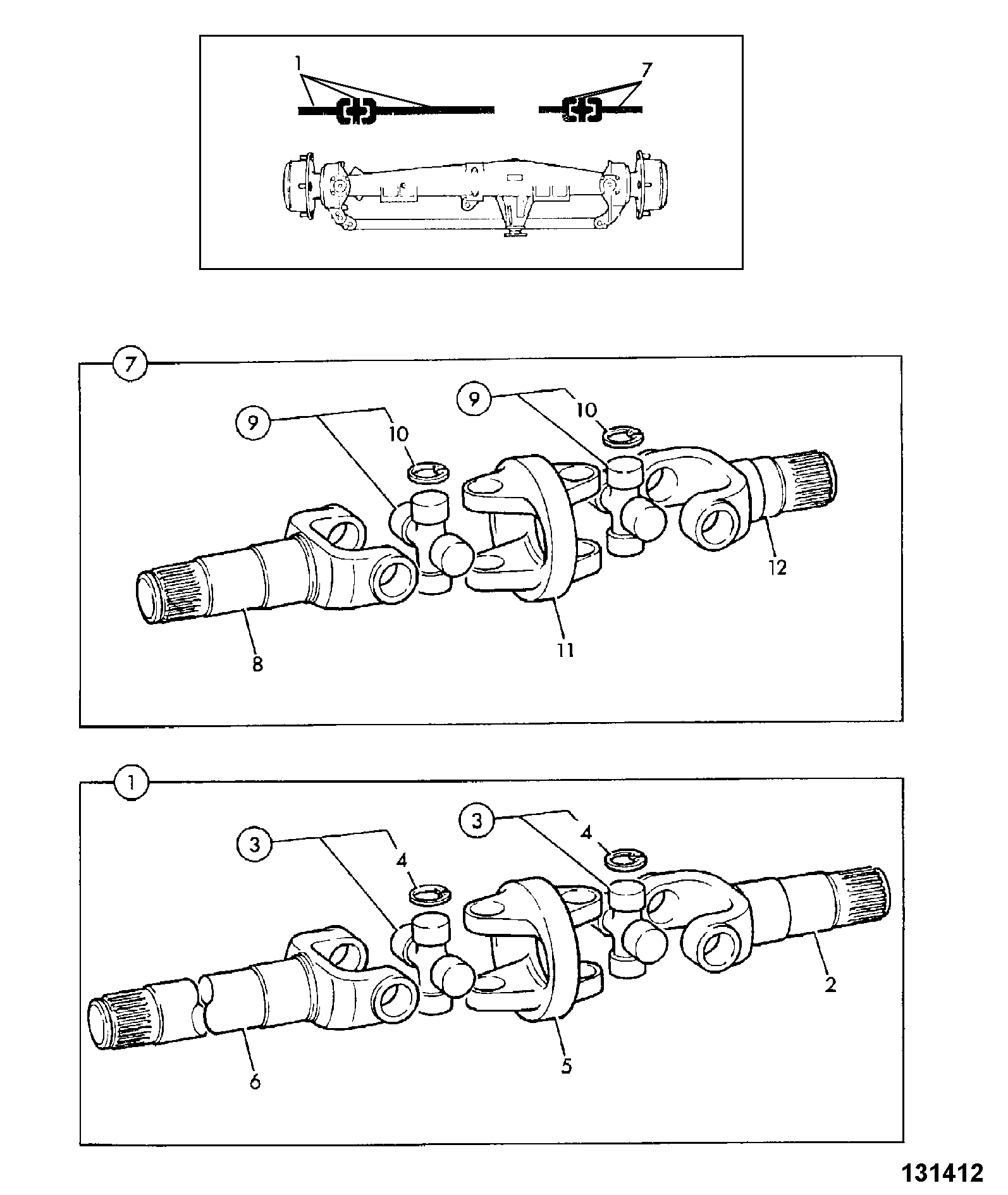

DIAG-F2-5-1-399402-12281152 F2-5-1 SHAFT, DRIVE
View Diagram

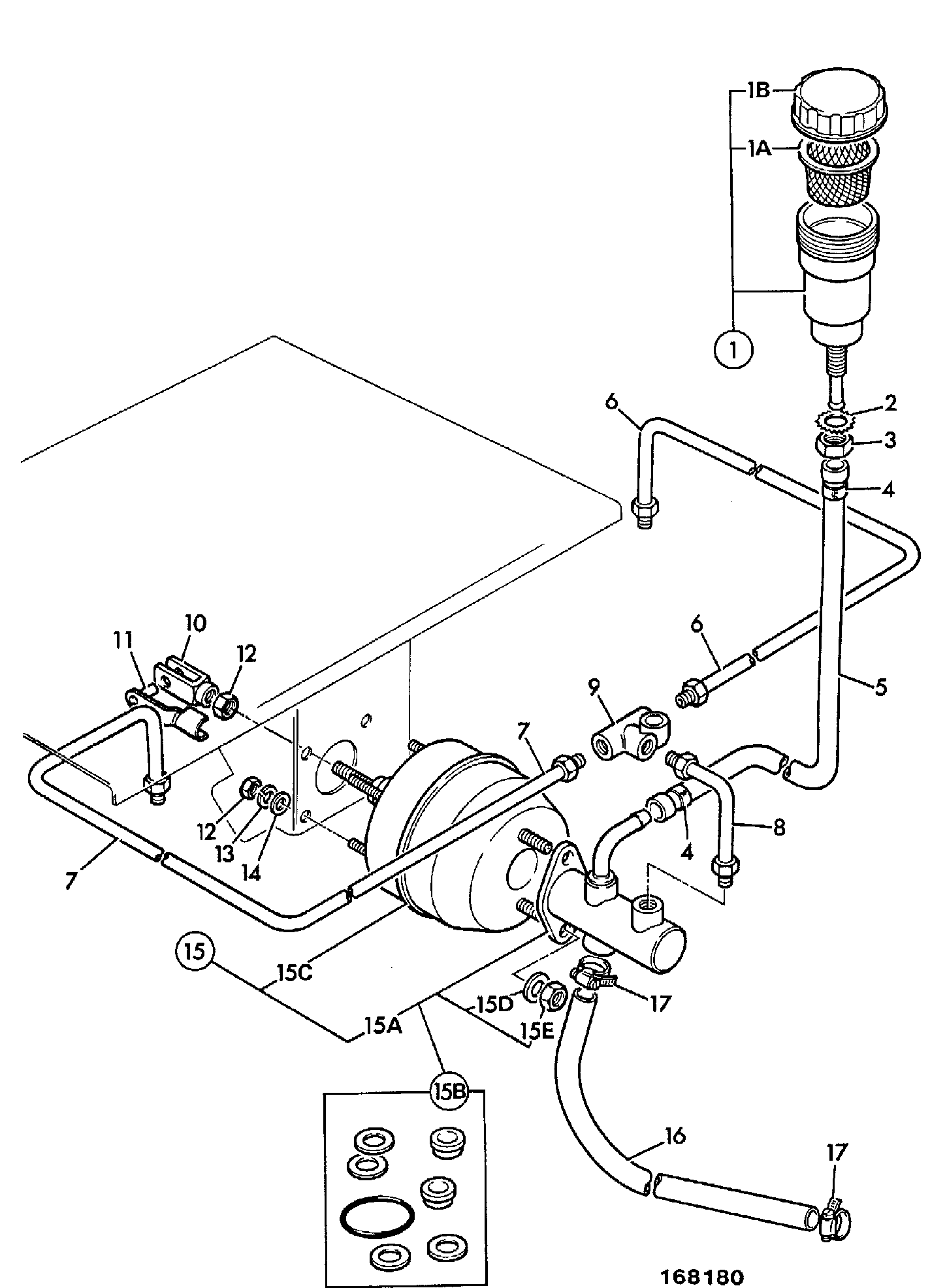

DIAG-G1-1-3-399402 G1-1-3 BRAKE, SYSTEM
View Diagram

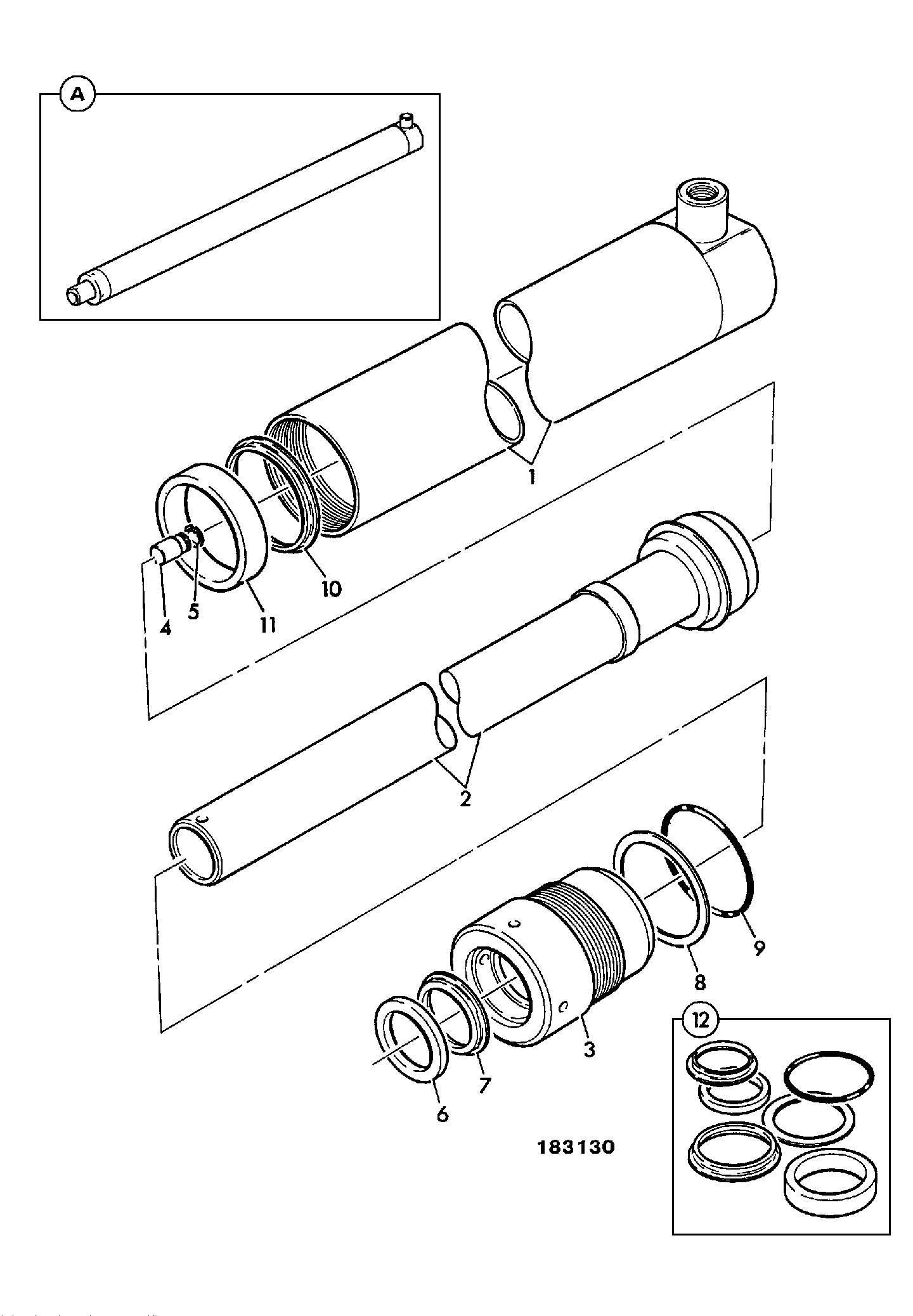

DIAG-E4-41-3-399402 E4-41-3 RAM, LIFT 30'FREELIFT ULTRAVIEW, OUTER MAST SECTION CENTER
