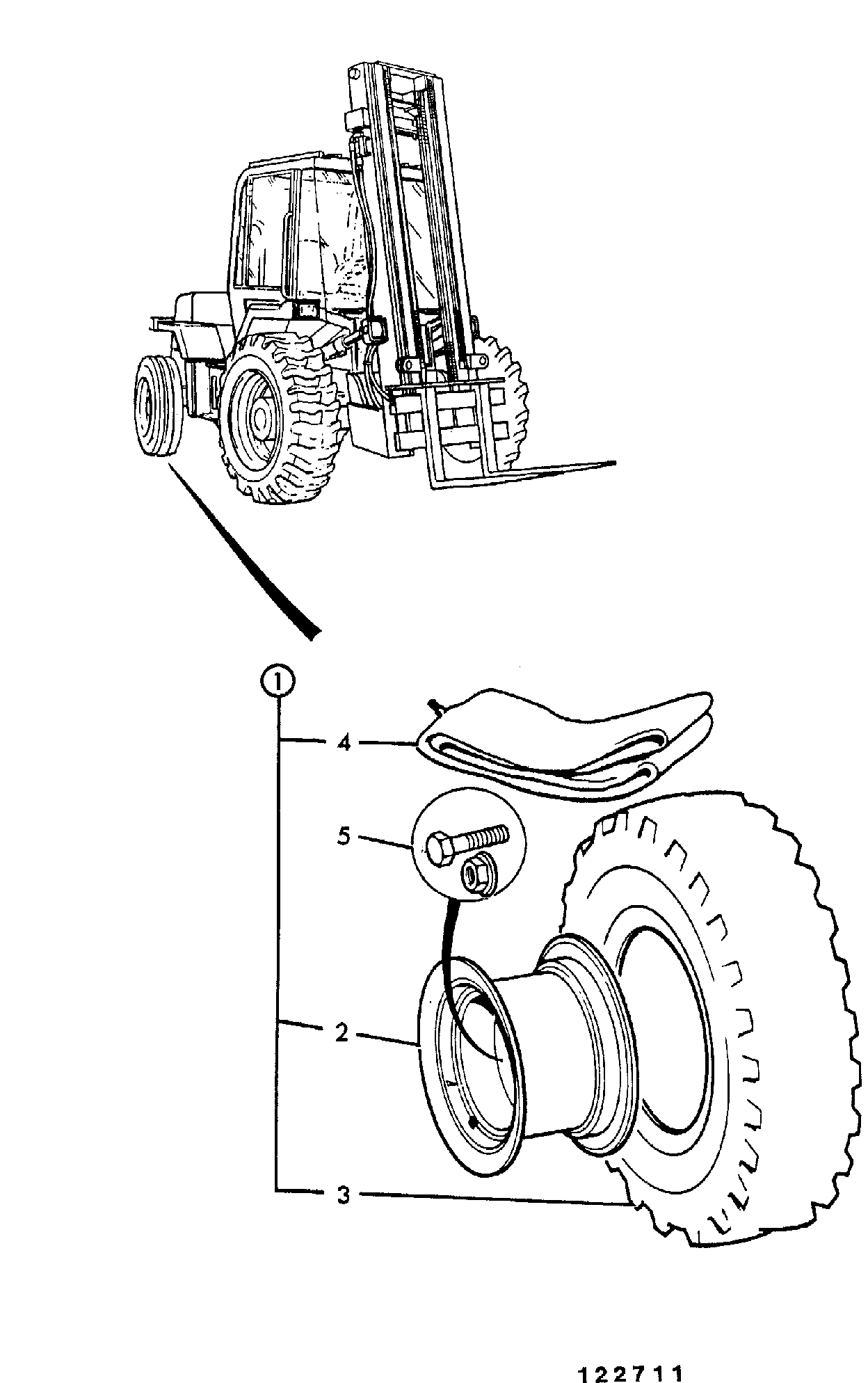

F3-2-4 WHEELS & TYRES 4WD REAR 926/930 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Wheel and tyre ass 331/23960	1	AVAILABLE TO ORDER	$1,333.93	Quantity
2	WHEEL CENTRE REAR 4WD 41/904500	1	AVAILABLE TO ORDER	$582.44	Quantity
3	TYRE 12.5X18 4LI3 42/925156	1	AVAILABLE TO ORDER	$725.06	Quantity
5	WHEEL NUT 3/4"UNF 40/304179 400/N6589	1	3 IN STOCK	$7.98	Quantity

Showing 1 to 4 of 4 parts
