Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| NUT CLEVELOC M12 826/01747 | 1 | $9.35 | ||||
| NUT M12 STD SELF LOCK 1371/0403Z | 1 | $18.97 | ||||
| 1 | PROPSHAFT 914/46000 | 1 | $2,308.86 | |||
| 1A | KIT-SPIDER (BEARING) 914/35401 914/56401 | 1 | $221.93 | |||
| 1C | YOKE FLANGE 914/35402 | 1 | $206.92 | |||
| 2 | FRONT PROPSHAFT 914/60329 | 1 | $1,287.99 | |||
| 2A | NUT 914/36301 | 1 | $33.87 | |||
| 2B | FLANGE YOKE 914/36302 | 1 | $247.89 | |||
| 2C | BEARING 914/70098 914/03500 | 1 | $174.46 | |||
| 2C | BEARING CENTRE 914/60082 | 1 | $627.53 | |||
| 4 | REAR PROPSHAFT 914/53500 | 1 | $655.62 | |||
| 5 | SET SCREW 1480 SERIES 826/00892 | 1 | $15.01 | |||
| 6 | STRAP 116/00525 116/00525A | 1 | $8.99 | |||
| 7 | CAPS-CREW M12 L-_40mm 1391/3510 | 1 | $15.81 | |||
| 7 | SET M12 L-40mm HT 1315/0510Z | 1 | $2.57 | |||
| 9 | CAP SCREW M12x25 1391/3507Z | 1 | $10.88 | |||
| 9 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
| 10 | (W) (P)WASHER 13x23x2.7 823/00309 | 1 | $17.88 | |||
| 10 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

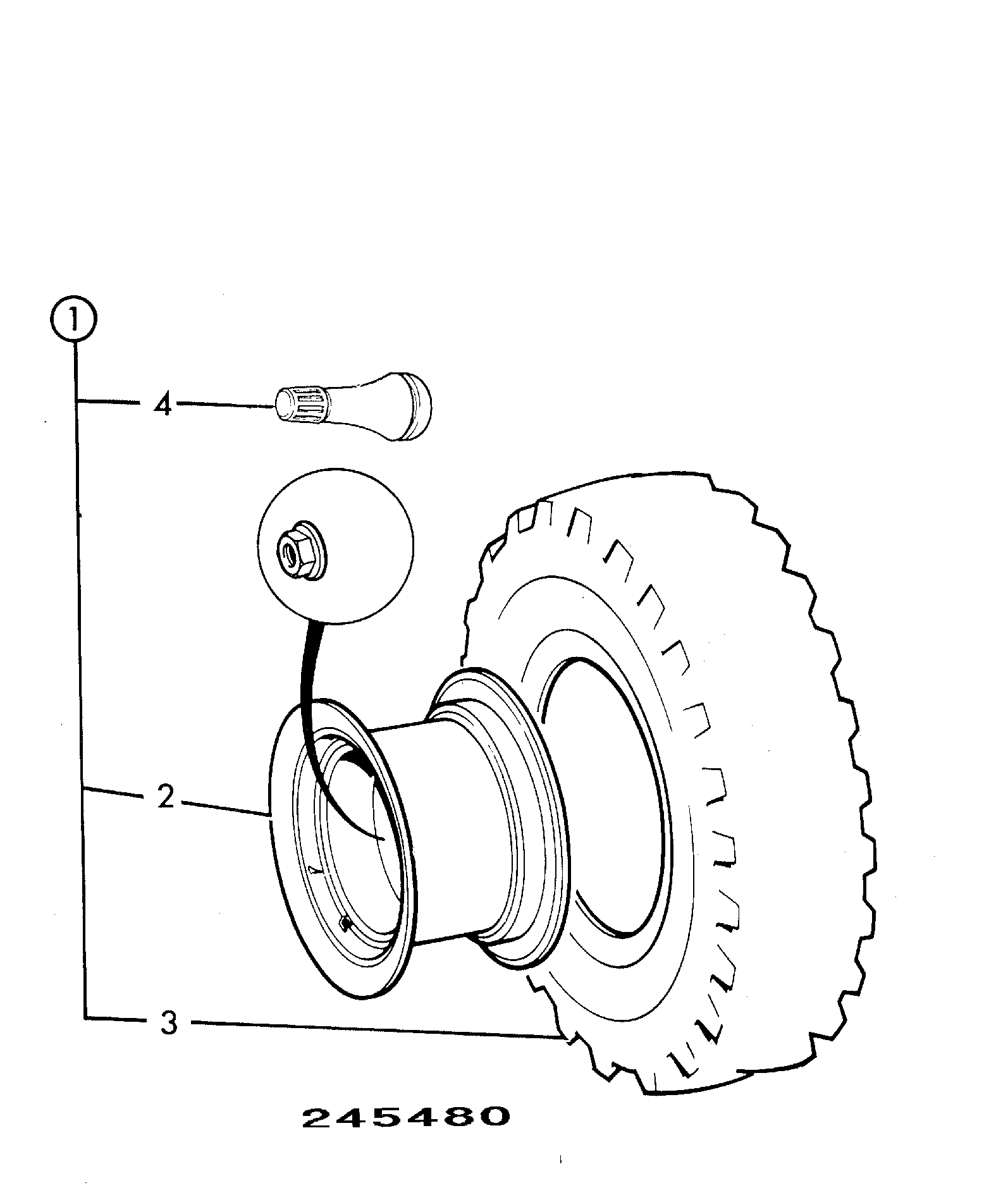

DIAG-F3-3-1-403005 F3-3-1 WHEELS & TYRES
View Diagram -

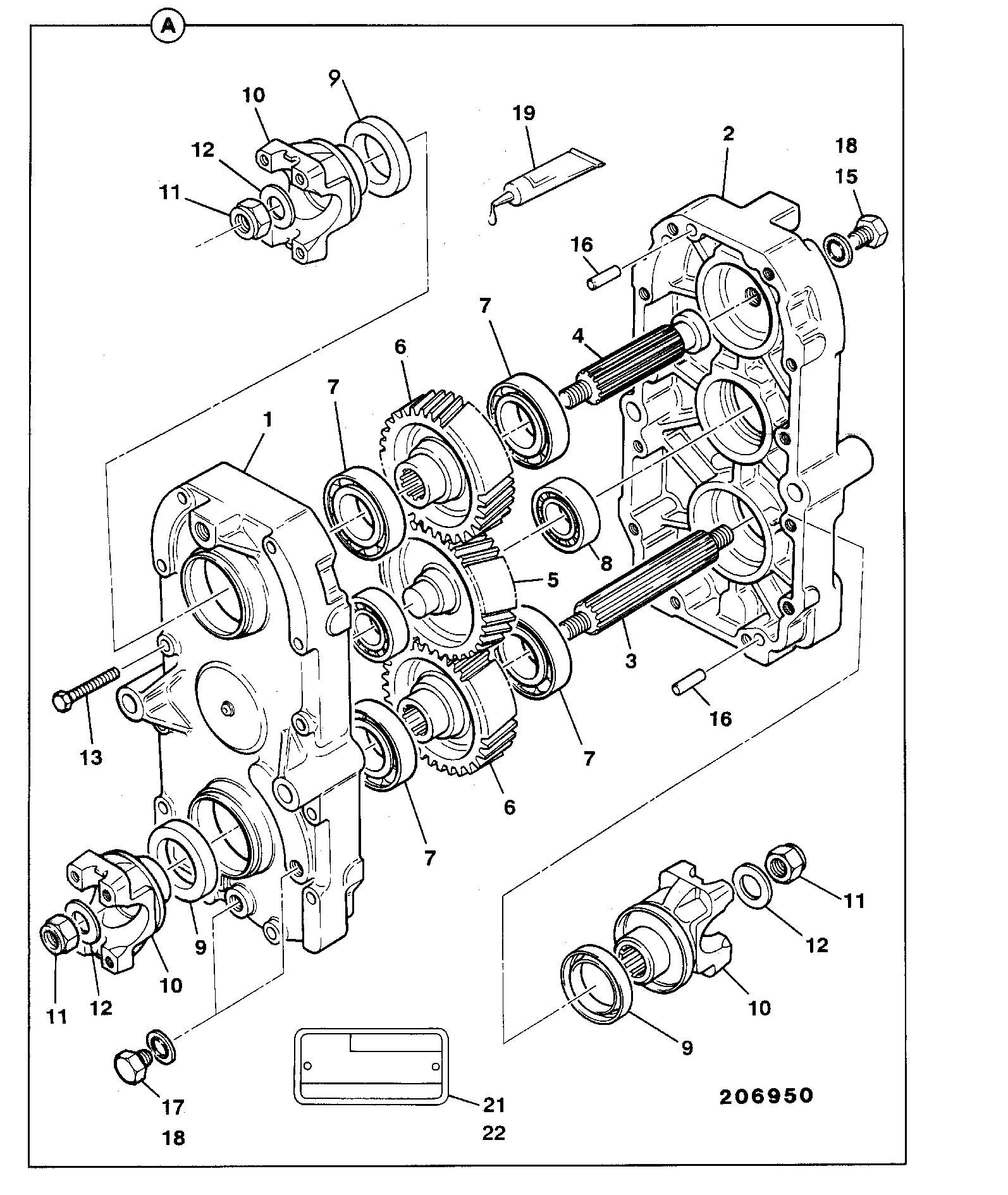

DIAG-F5-10-1-403005 F5-10-1 TRANSMISSION DROP BOX
View Diagram -
DIAG-F3-2-1-403005 F3-2-1 WHEELS & TYRES
View Diagram
