Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.52 | ||||
| 10 | GA RAM 90x50 AXLE LOCK (P321) 557/60271 | 1 | $3,584.60 | |||
| 20 | VALVE - REAR AXLE LOCK 333/C9233 | 1 | $1,575.98 | |||
| 30 | CAP-SCREW M_6 L-_20mm 1391/3205Z 1391/3205 | 1 | $0.85 | |||
| 40 | TRUNNION PLATE ASSY 333/C4489 | 1 | $1,203.12 | |||
| 50 | (W) (P) WASHER M20 PLAIN 1420/0012Z | 1 | $2.82 | |||
| 60 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 70 | SWAY PIVOT BRACKET M/CG. 402/E7900 | 1 | $401.70 | |||
| 80 | P/PIN 50.80/50.70 * 187 403/H0073 403/G1193 | 1 | $82.25 | |||
| 90 | BOLT M12x110 1315/3521Z | 1 | $7.62 | |||
| 100 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
| 110 | NUT 1"UNF 826/01714 | 1 | $10.72 | |||
| 120 | 1"UNF X 10.5" BOLT 826/01665 | 1 | $54.30 | |||
| 130 | (P) (W) (Pre-P)-HOSE -06 BSP HP 720mm 612/45000 | 1 | $50.57 | |||
| 140 | HOSE 3/8" BSP 380mm 612/31700 | 1 | $75.71 | |||
| 150 | ELBOW ADAPTOR 332/B5525 816/90548 | 1 | $11.96 | |||
| 160 | ADAPTOR 1620/2052 | 1 | $2.49 | |||
| 170 | SHIM 274/01018 | 1 | $6.76 | |||
| 180 | WASHER -HARDENED 823/10631 | 1 | $6.02 | |||
| 190 | WA RAL PIVOT 333/D4738 | 1 | $11.72 | |||
| 200 | BOLT 1316/3812Z | 1 | $11.69 | |||
| 210 | RAL BACKPLATE 333/D4726 | 1 | $11.72 | |||
| 220 | BOLT HEX. HD M20X1 1316/3821Z | 1 | $19.49 | |||
| 230 | SPACER 265/01744 | 1 | $22.20 | |||
| 240 | ROUND INSERT 334/P1475 | 1 | $11.72 | |||
| 250 | SET SCREW M12X20 1315/0505Z | 1 | $2.18 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-
DIAG-F290-10-5-402281 F290-10-5 OTHER REAR AXLE ITEMS REAR AXLE LOCK
View Diagram -
DIAG-F210-5-1-402281 F210-5-1 AXLES REAR TRUNNION MOUNT
View Diagram -

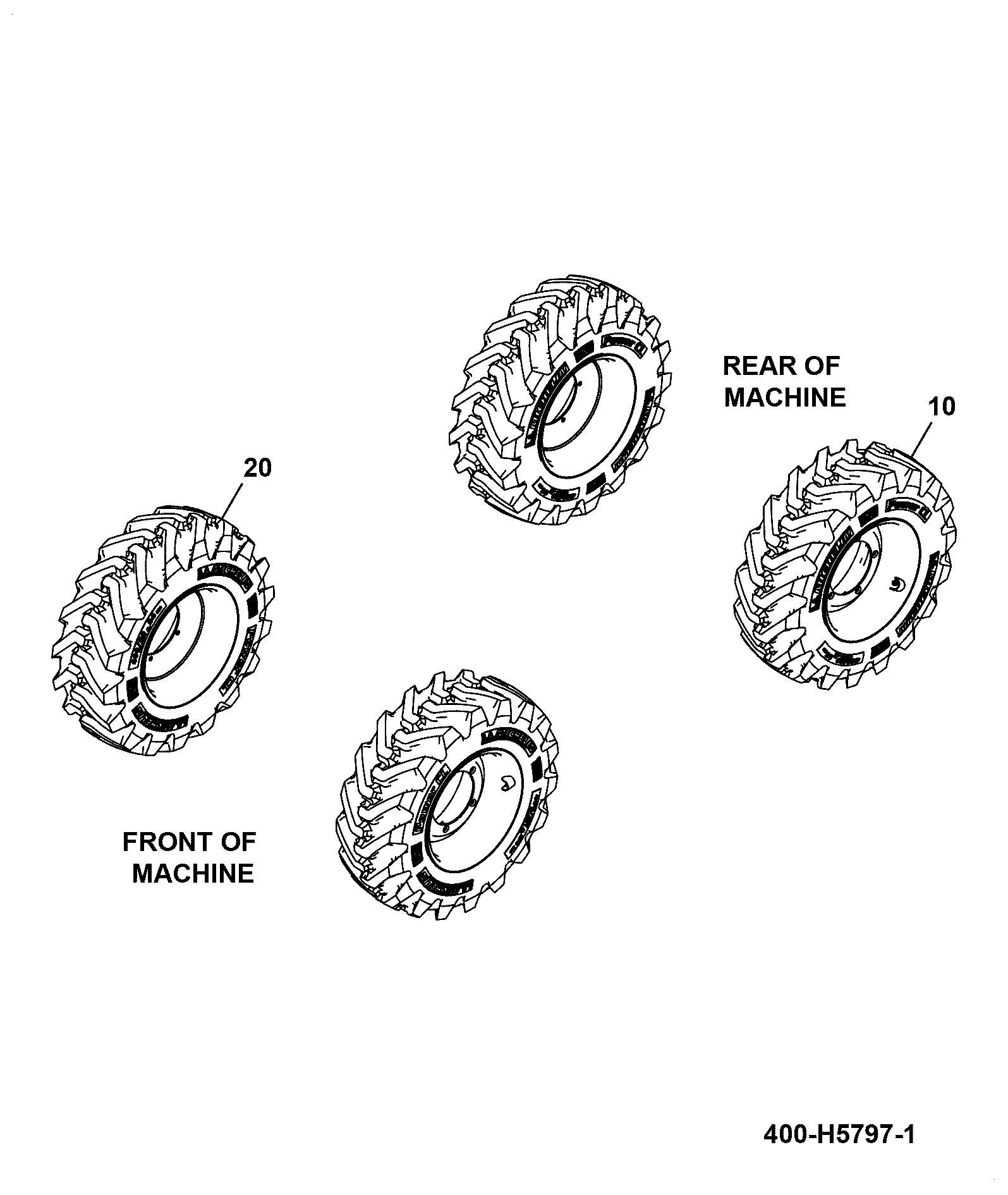

DIAG-F330-145-1-402281 F330-145-1 WHEELS AND TYRES FRONT AND REAR MICHELIN 400/80-24 RUN-FLAT
View Diagram
