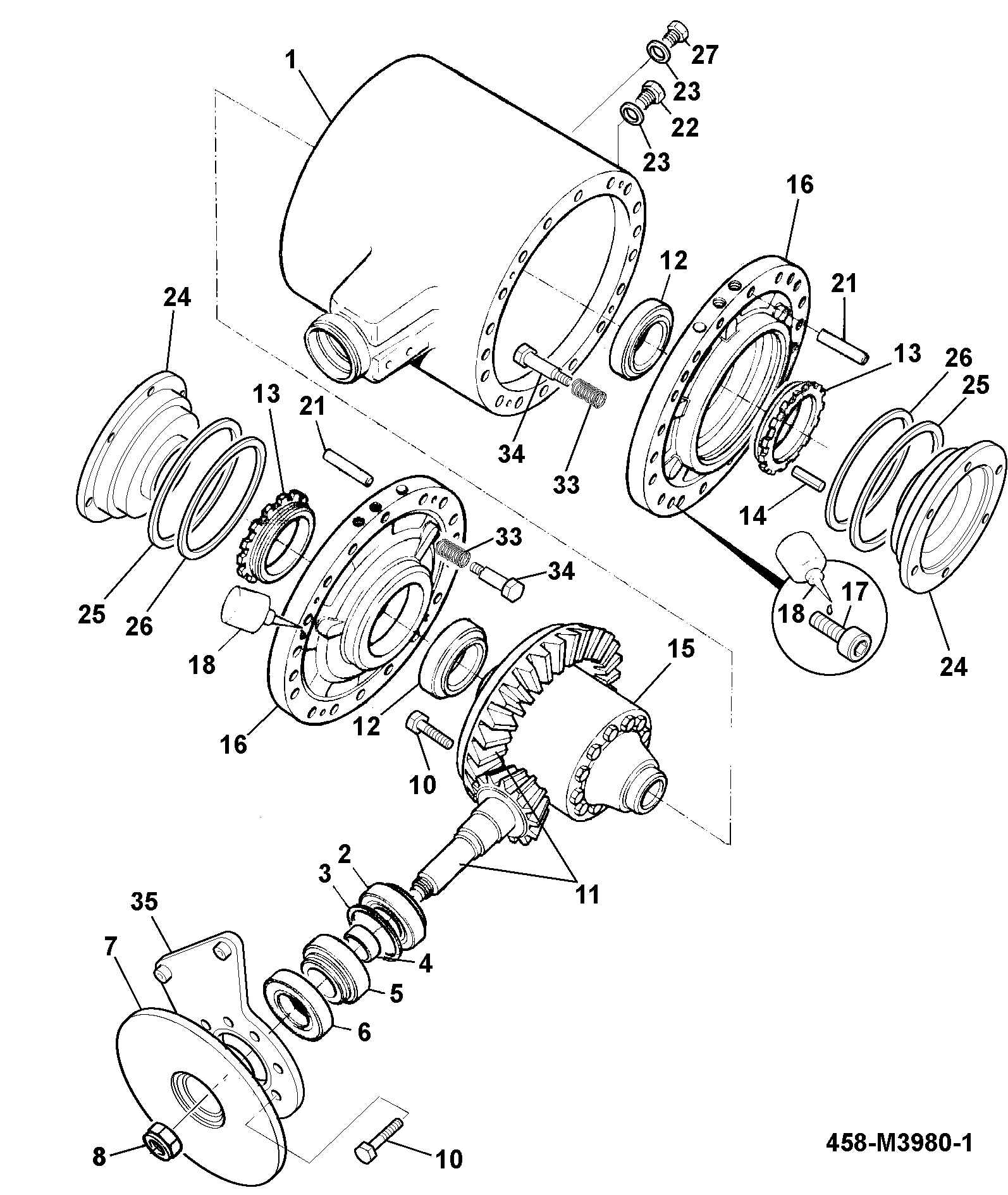

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BRACKET - CALIPER MOUNTIN 458/20511 | 1 | $249.02 | ||||
| 1 | DRIVEHEAD CASING ROUND 4CX.P/BRK BLK. 458/20284 | 1 | $2,283.91 | |||
| 2 | BEARING -TAPER ROLLER 907/09000 | 1 | $292.88 | |||
| 3 | SHIM KIT 921/01900 | 1 | $32.86 | |||
| 4 | SPACER KIT 921/53400 | 1 | $745.77 | |||
| 5 | BEARING - TAPER ROLLER 907/M5375 | 1 | $254.73 | |||
| 6 | SEAL - TRIPLE LIP 904/20172 | 1 | $37.32 | |||
| 7 | DISC PARK BRAKE 458/20693 | 1 | $451.54 | |||
| 8 | STAKE NUT M30 X 2 826/01744 826/M7635 | 1 | $12.55 | |||
| 10 | BOLT - VERBUS RIPP - M12 x 30 826/01080 | 1 | $3.41 | |||
| 11 | GA C/WHEEL & PINION 13/38 458/W4742 | 1 | $590.80 | |||
| 12 | BEARING -TAPER ROLLER 907/50100 | 1 | $229.63 | |||
| 13 | DIFF SIDE NUT 450/10403 | 1 | $141.40 | |||
| 14 | TENSION PIN 826/00818 | 1 | $0.51 | |||
| 15 | G.A. DIFFERENTIAL 450/10900 | 1 | $6,081.82 | |||
| 16 | BRAKE PISTON HOUSING (PRB) 458/20238 458/M5479 | 1 | $946.12 | |||
| 17 | M10 X 25 SOCKET CAP SCREW 1391/3407 | 1 | $4.09 | |||
| 18 | MULTIGASKET 4102/1200 4102/1212 | 1 | $30.15 | |||
| 21 | DOWEL 16X55 826/00919 | 1 | $50.94 | |||
| 22 | 3/4" BSP TAPER PLUG - MAG 450/10216 816/M3848 | 1 | $11.39 | |||
| 22 | DRAIN PLUG - MAGNETIC 816/80012 | 1 | $45.32 | |||
| 23 | WASHER BONDED 1" BSP 1406/0021 | 1 | $6.00 | |||
| 24 | BRAKE PISTON PRB 458/M2801 | 1 | $215.10 | |||
| 25 | BRAKE SEAL 813/50012 | 1 | $24.79 | |||
| 26 | BRAKE SEAL 813/50026 | 1 | $20.45 | |||
| 33 | COMPRESSION SPRING 814/00367 | 1 | $1.39 | |||
| 34 | PIN - HEADED BACKOFF 450/24303 | 1 | $47.90 | |||
Showing 1 to 27 of 27 parts
Related Assemblies
-
DIAG-F250-8-3-394832 F250-8-3 458/M3983 DRIVEHEAD ASSEMBLY
View Diagram -
DIAG-F250-10-3-394832 F250-10-3 458/M3993 DRIVEHEAD ASSEMBLY
View Diagram -
DIAG-F250-7-3-394832 F250-7-3 458/M3980 DRIVEHEAD ASSEMBLY
View Diagram
