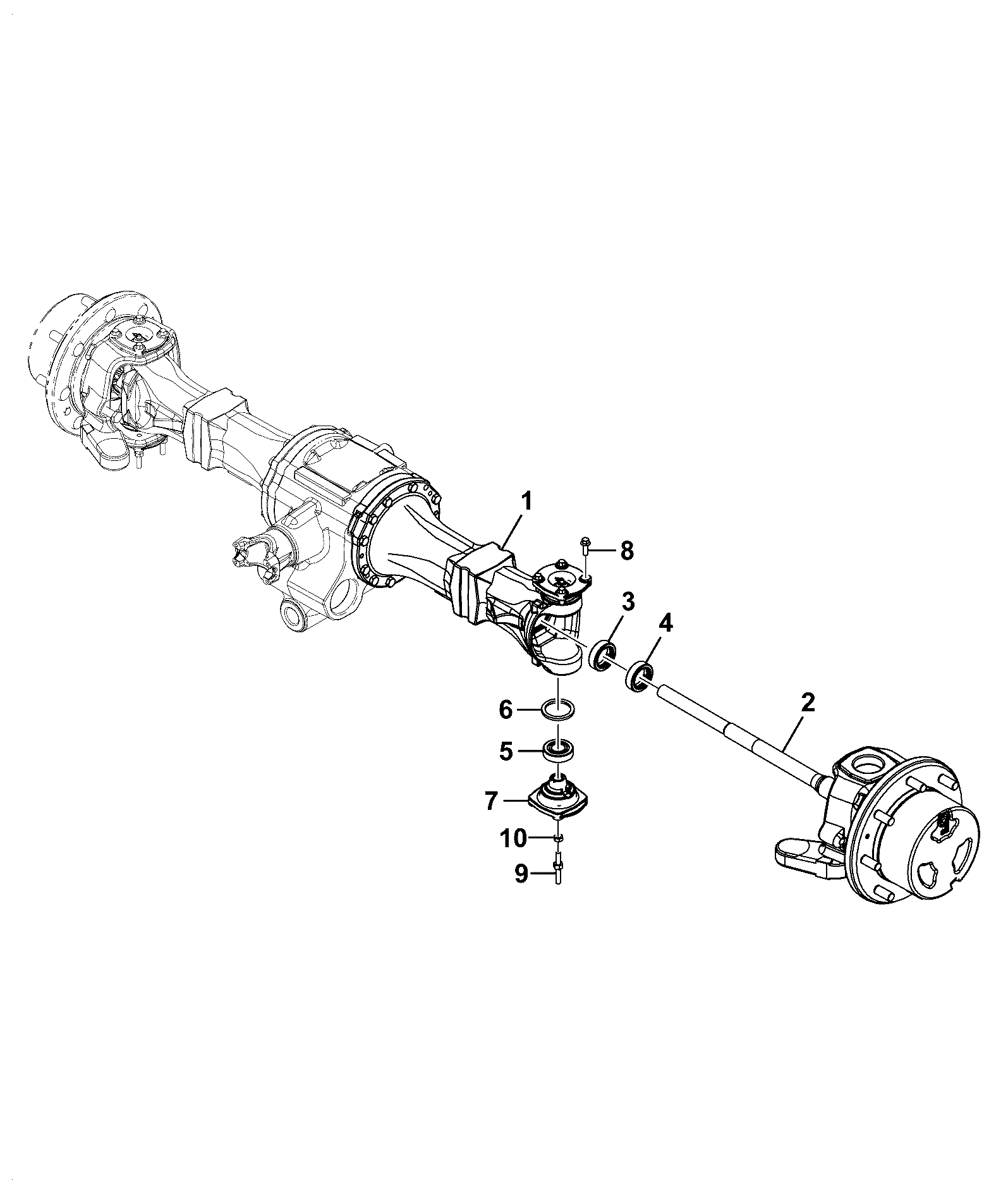

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | DRIVEHEAD CASE PIN MT- MA 336/A6327 | 1 | $199.10 | |||
| 2 | BEARING -TAPER ROLLER 907/09000 | 1 | $292.88 | |||
| 3 | SHIM KIT 921/01900 | 1 | $32.86 | |||
| 4 | SPACER KIT 921/53300 | 1 | $356.34 | |||
| 5 | TAPERROLLER BEARING-PIN.T 907/09100 | 1 | $81.41 | |||
| 6 | SEAL - TRIPLE LIP 904/20172 | 1 | $37.32 | |||
| 7 | YOKE - COUPLING 1410 336/C5347 | 1 | $80.86 | |||
| 8 | STK,NUT M22 2mm C,Bore 826/11555 | 1 | $36.52 | |||
| 9 | GA C/WHEEL & PINION 9/29 458/70262 | 1 | $508.80 | |||
| 10 | VERBUS RIPP BOLT M10X1.5 333/Y8554 | 1 | $3.17 | |||
| 11 | TAPERROLLER BEARING-DIFF. 907/09200 | 1 | $93.64 | |||
| 13 | DIFF BEARING HOUSING 336/A6387 | 1 | $83.76 | |||
| 15 | DIFF SIDE NUT 336/A1845 | 1 | $10.40 | |||
| 17 | Dowel 10 x 55 long 458/20805 | 1 | $9.15 | |||
| 20 | WASHER BONDED 1" BSP 1406/0021 | 1 | $6.00 | |||
| 21 | Plug Magnetic 332/Y2555 | 1 | $4.38 | |||
| 22 | DRAIN PLUG - NON-MAGNETIC 816/80037 | 1 | $25.01 | |||
| 23 | TENSION PIN 826/00818 | 1 | $0.51 | |||
| 24 | bush 809/10044 | 1 | $73.71 | |||
| 26 | NIPPLE GREASE 816/60056 816/60056A | 1 | $2.11 | |||
| 27 | GREASE BLEED NIPPLE CAP 40/303427 | 1 | $0.27 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-

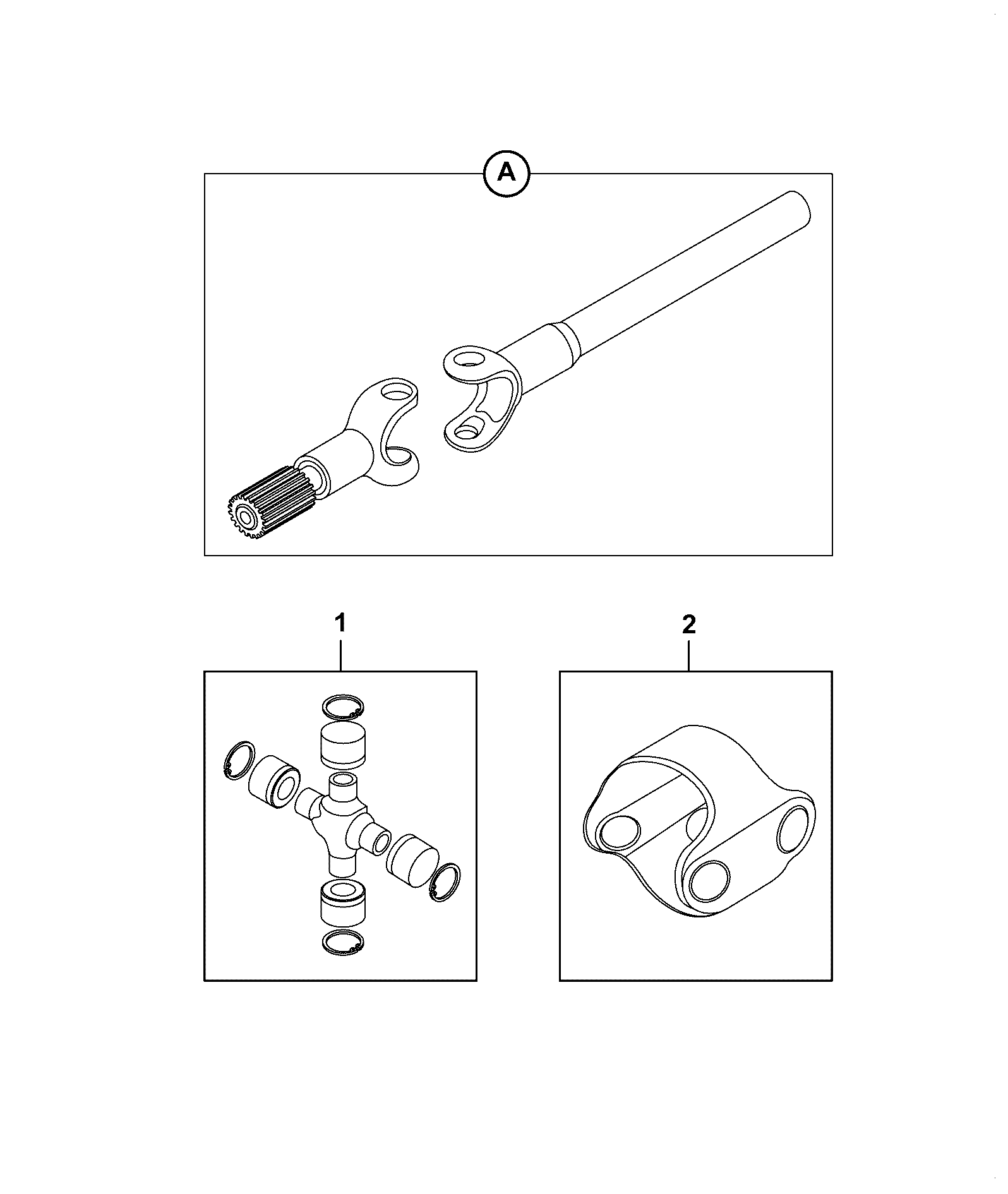

DIAG-F235-1-1-400172 F235-1-1 DRIVESHAFT ASSEMBLY 336/E7100 1
View Diagram -
DIAG-F220-10-1-400172 F220-10-1 AXLE ARM AND HUB ASSEMBLY LH , SD40
View Diagram -
DIAG-F220-5-1-400172 F220-5-1 AXLE ARM AND HUB ASSEMBLY RH , SD40
View Diagram
