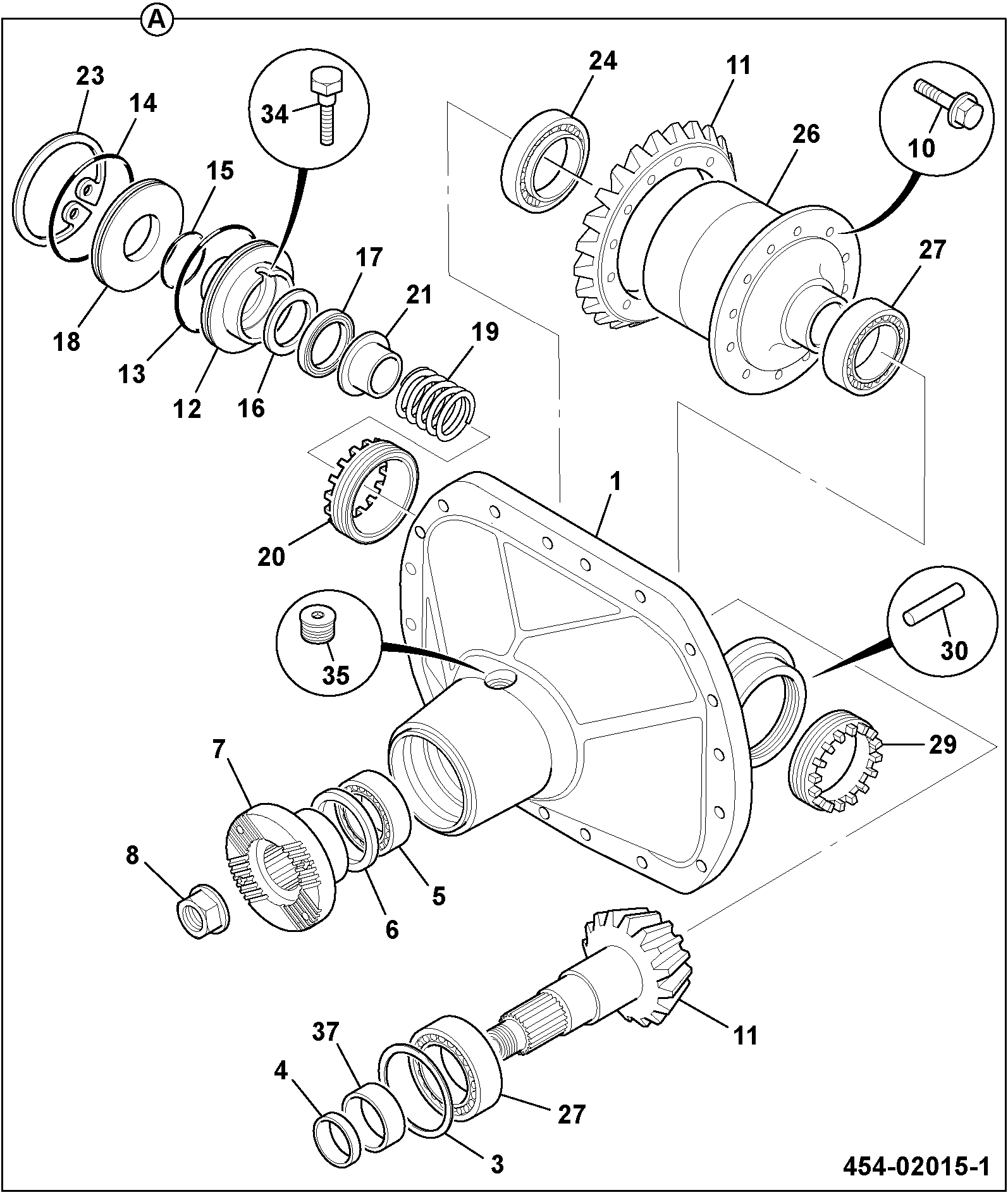

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BEARING - AXIAL CYL ROLLE 907/51800 | 1 | $171.35 | ||||
| BEARING - TAPER ROLLER 907/51900 | 1 | $297.66 | ||||
| BOLT - VERBUS RIPP - M12 x 30 826/01080 | 1 | $3.41 | ||||
| CASE ASSY - DRIVEHEAD-589/M0341 458/M0342 | 1 | $1,407.06 | ||||
| CIRCLIP - INTERNAL 2203/1107 | 1 | $27.90 | ||||
| COUPLING FLANGE-XS120/541 454/30030 458/M4626 | 1 | $145.58 | ||||
| diff side nut 454/09303 | 1 | $81.10 | ||||
| END PLATE 454/09302 458/L7680 | 1 | $34.52 | ||||
| G.A. DIFFERENTIAL 458/M1730 | 1 | $2,533.98 | ||||
| GA C/WHEEL & PINION 13/36 458/M2901 | 1 | $2,175.79 | ||||
| GA DRIVEHEAD 458/M3423 | 1 | $10,577.32 | ||||
| NUT - DIFF SIDE 454/09305 | 1 | $73.65 | ||||
| O RING 202-748-4470-99 828/00337 | 1 | $5.96 | ||||
| O RING 202-749-4470-99 828/00338 | 1 | $5.96 | ||||
| O'RING 828/00339 | 1 | $0.98 | ||||
| PISTON 458/20536 | 1 | $170.90 | ||||
| SCREW- LOCKING 1/8 BSP 454/09400 826/10888 | 1 | $16.66 | ||||
| SEAL - TRIPLE LIP 904/50045 904/M5725 | 1 | $67.93 | ||||
| SHIM KIT 921/00600 | 1 | $32.42 | ||||
| SPACER KIT 921/53500 | 1 | $382.52 | ||||
| SPRING - COMPRESSION 814/00421 | 1 | $108.12 | ||||
| STAKE NUT M30 X 2 826/01744 826/M7635 | 1 | $12.55 | ||||
| TAPER ROLLER BEARING 907/03800 | 1 | $141.21 | ||||
| TAPER ROLLER BEARING 907/54000 | 1 | $113.25 | ||||
| TENSION PIN 826/00818 | 1 | $0.51 | ||||
| TRANSIT PLUG REF:10549 835/00181 | 1 | $21.74 | ||||
| WASHER - HOUSING LOC. 808/00329 | 1 | $83.96 | ||||
| WASHER - THRUST 454/09304 823/10396 | 1 | $136.71 | ||||
| ZERO LEAK GOLD PLUG 458/10674 816/91019 | 1 | $10.20 | ||||
Showing 1 to 29 of 29 parts
Related Assemblies
-
DIAG-F250-2-1-393600 F250-2-1 DRIVEHEAD ASSEMBLY 458/M2966
View Diagram -
DIAG-F260-1-1-393600 F260-1-1 DIFFERENTIAL ASSEMBLY 458/M1730
View Diagram -
DIAG-F250-1-1-393600 F250-1-1 DRIVEHEAD ASSEMBLY 458/M2965
View Diagram
