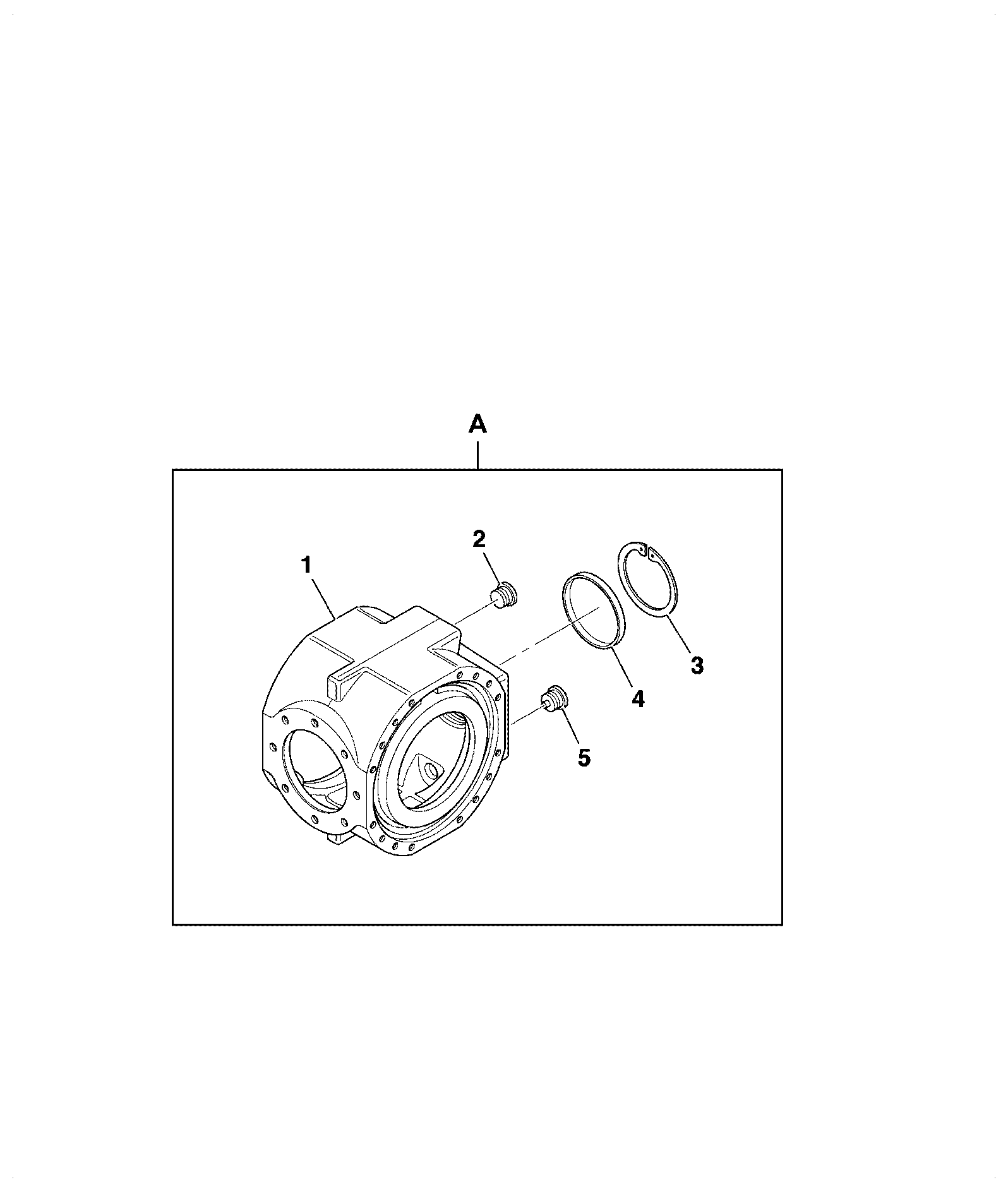

F250-1-1 DRIVE HEAD ASSEMBLY 332/T2574, 333/U8446 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Housing 10/301265	1	AVAILABLE TO ORDER	$1,208.14	Quantity
2	Plug 10/301242	1	AVAILABLE TO ORDER	$29.20	Quantity
3	Circlip 333/C8839 10/301245	1	AVAILABLE TO ORDER	$85.54	Quantity
4	Plug 10/301246	1	AVAILABLE TO ORDER	$100.83	Quantity
5	Plug 400/04604	1	AVAILABLE TO ORDER	$26.19	Quantity

Showing 1 to 5 of 5 parts

DIAG-F250-1-1-402993 F250-1-1 DRIVE HEAD ASSEMBLY 332/T2566
View Diagram
DIAG-F260-1-1-402993 F260-1-1 DIFFERENTIAL ASSEMBLY 332/T2574, 333/U8446
View Diagram

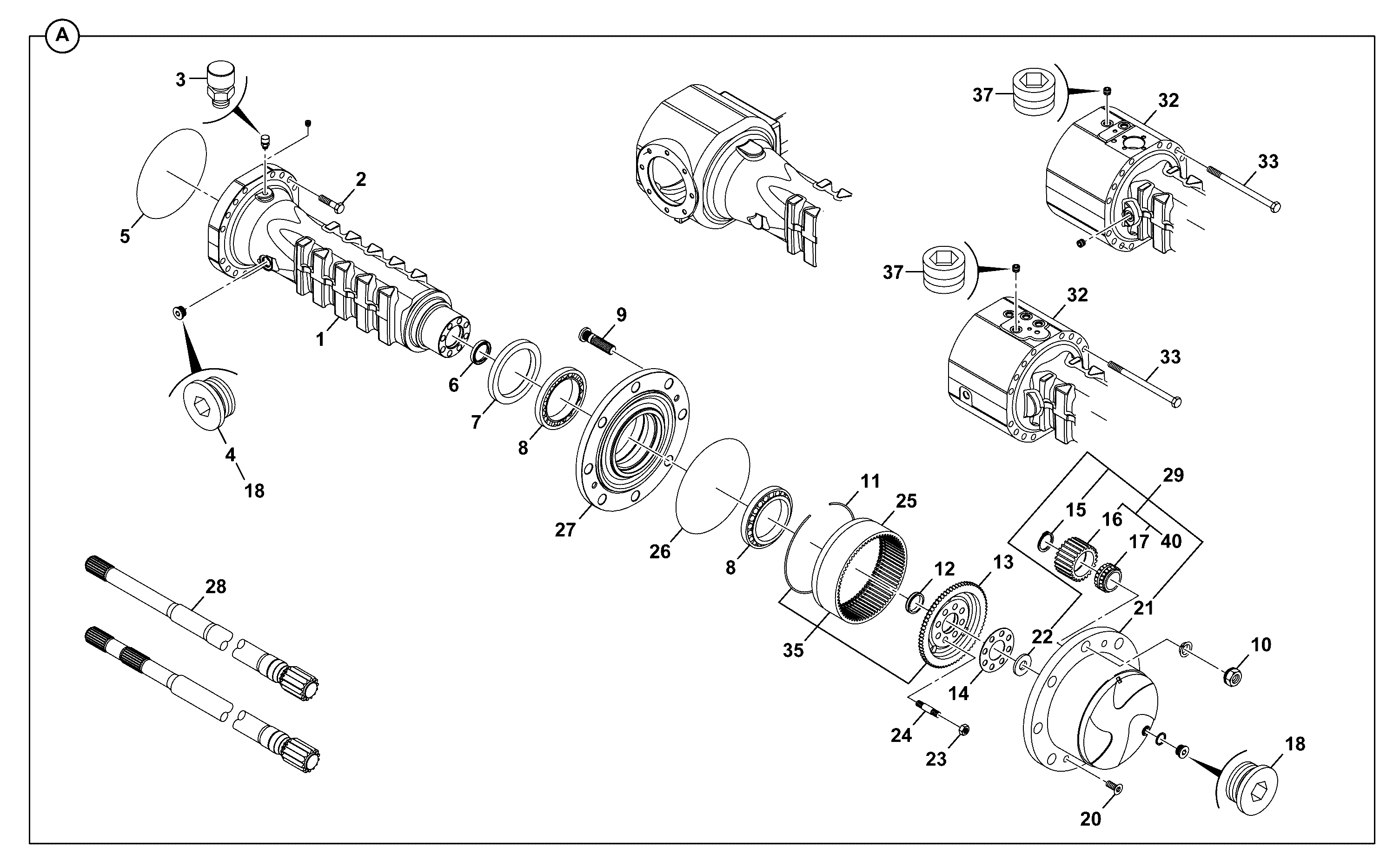

DIAG-F220-5-1-402993 F220-5-1 AXLE ARM AND HUB ASSEMBLY HUB & COMPONENTS
