Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Disc 10/301300 | 1 | $408.57 | |||
| 2 | Intermediate Brake Disc 336/D4993 | 1 | $110.55 | |||
| 3 | Bush 332/D4787 | 1 | $328.43 | |||
| 4 | Ball detend 10/301268 | 1 | $7.21 | |||
| 5 | Spacer Spacer 332/C9157 | 1 | $80.24 | |||
| 6 | Shim 10/301304 | 1 | $5.03 | |||
| 6 | Shim 10/301305 | 1 | $5.55 | |||
| 6 | Shim 10/301306 | 1 | $5.24 | |||
| 6 | Shim 10/301307 | 1 | $7.28 | |||
| 6 | Shim 332/D4679 | 1 | $3.40 | |||
| 7 | Disc 10/301308 | 1 | $368.08 | |||
| 8 | Pin 10/301309 | 1 | $1.67 | |||
| 9 | Piston 10/301310 | 1 | $1,486.72 | |||
| 10 | O-RING 10/301311 | 1 | $12.24 | |||
| 11 | Plug 333/D1611 333/G5403 | 1 | $17.03 | |||
| 12 | BLEED SCREW 10/904180 | 1 | $16.04 | |||
| 13 | Plug 10/301336 | 1 | $13.84 | |||
| 14 | Ring back-up 10/301312 | 1 | $120.40 | |||
| 15 | Seal Rear Axle 336/B4585 | 1 | $34.49 | |||
| 17 | Circlip 10/301315 | 1 | $13.98 | |||
| 18 | Spring 10/301316 | 1 | $248.15 | |||
| 19 | Ring back-up 10/301317 | 1 | $204.96 | |||
| 20 | O Ring 332/D4680 | 1 | $16.96 | |||
| 21 | Dowel UOI 10off 10/301257 | 1 | $11.72 | |||
| 22 | Piston 332/D4788 | 1 | $1,917.77 | |||
| 23 | O Ring 332/D4901 | 1 | $5.24 | |||
| 24 | Pin 333/E7592 | 1 | $70.90 | |||
| 25 | O Ring 332/D4904 | 1 | $14.83 | |||
| 26 | O Ring 332/D4906 | 1 | $16.96 | |||
| 27 | Piston 332/D4910 | 1 | $659.82 | |||
| 28 | Spring 332/D4911 | 1 | $1,257.83 | |||
| 29 | Nut ring 332/D4912 | 1 | $369.69 | |||
| 30 | Bolt 332/D4913 | 1 | $64.76 | |||
| 31 | O Ring 332/D4922 | 1 | $2.83 | |||
| 32 | Spacer 332/D4923 | 1 | $115.11 | |||
| 33 | Screw grub 10/301337 | 1 | $4.11 | |||
| 34 | Seal UOI 10off 10/301335 | 1 | $2.83 | |||
| 35 | Bolt 10/301334 | 1 | $12.52 | |||
Showing 1 to 38 of 38 parts
Related Assemblies
-

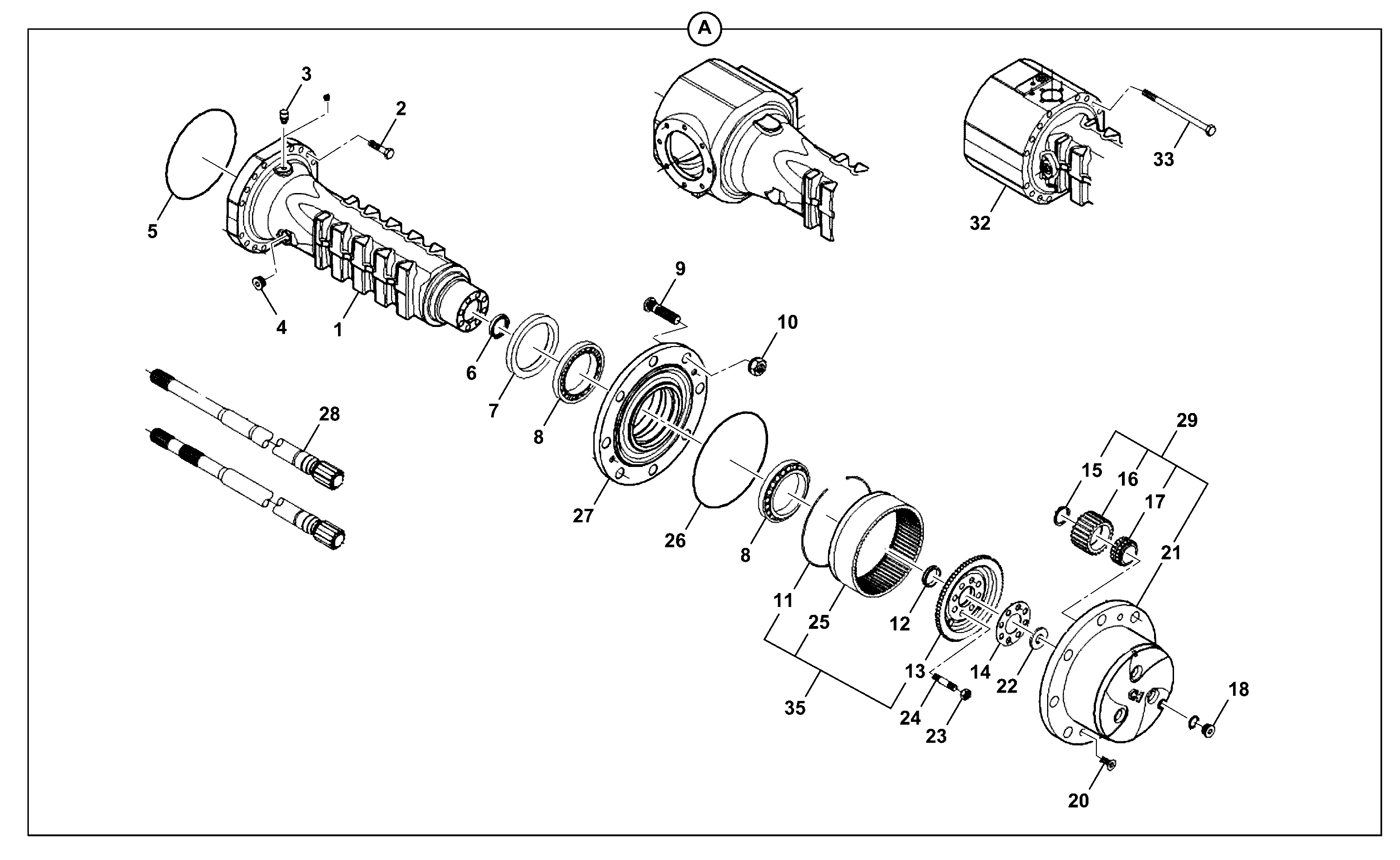

DIAG-F210-30-1-402981 F210-30-1 AXLES REAR HUB REDUCTION
View Diagram -
DIAG-F210-40-1-402981 F210-40-1 AXLES REAR GEARBOX
View Diagram -

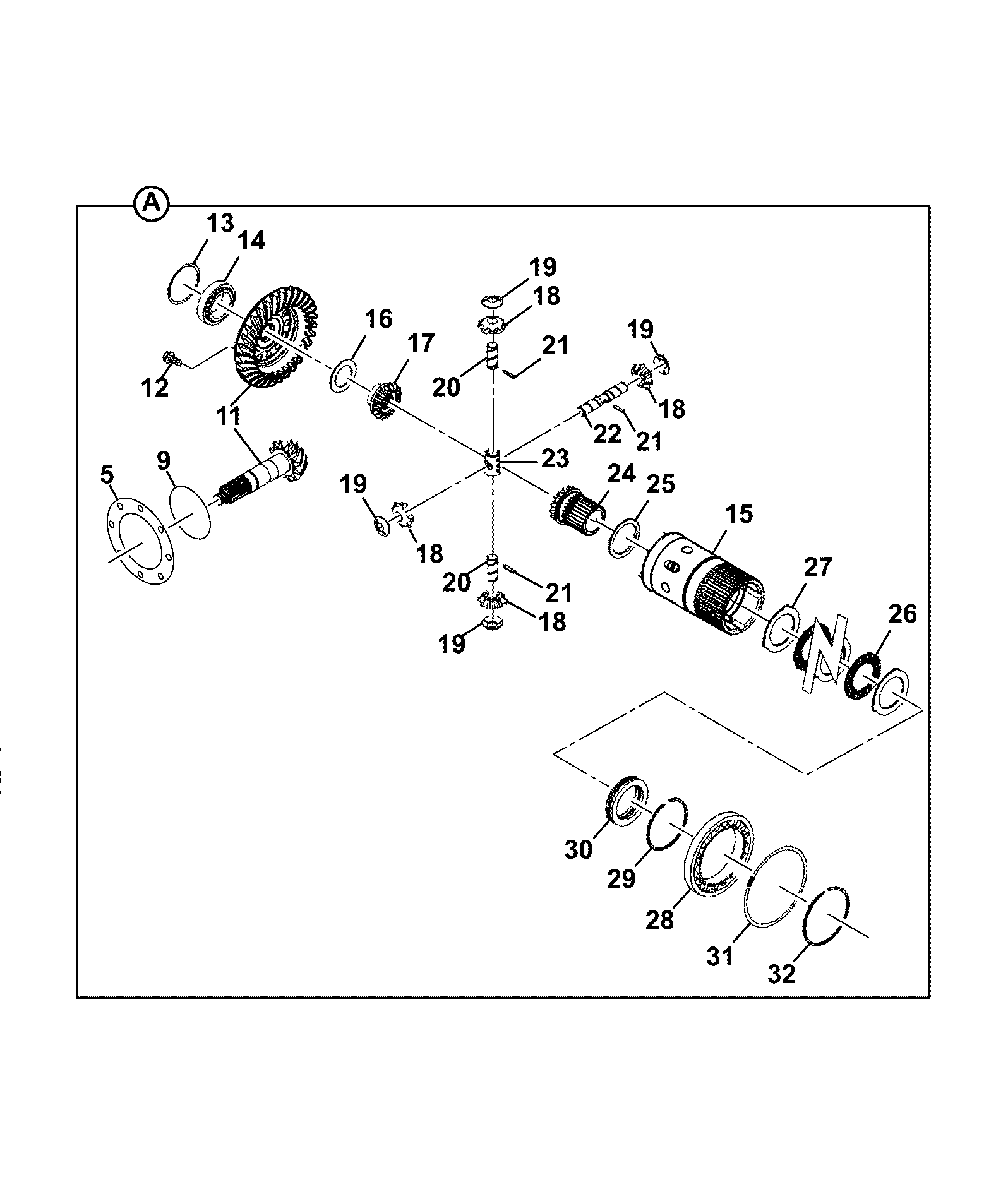

DIAG-F210-25-1-402981 F210-25-1 AXLES REAR DIFFERENTIAL ASSEMBLY
