| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | BOLT M10x35 1315/3409D | 1 | $8.02 | |||
| 20 | PIN - LINK 440/20604 458/N7750 | 1 | $74.39 | |||
| 30 | Trunnion Seal B 332/R4088 | 1 | $44.69 | |||

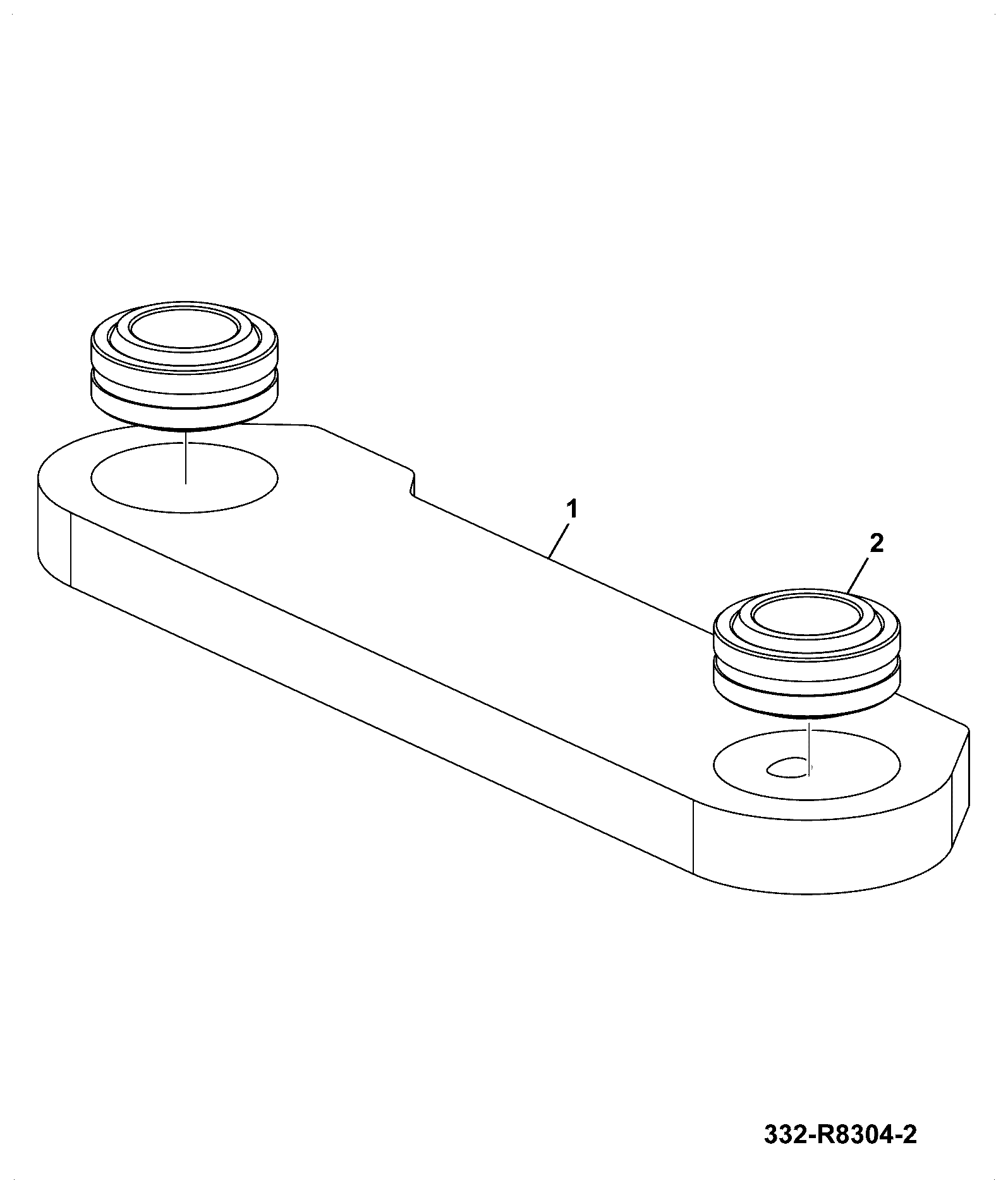

| 40 | GA - CONTROL ARM 332/R8304 | 1 | $370.44 | |||
| 50 | TRUNNION - MACHINING 333/R9990 | 1 | $56.95 | |||
| 70 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 90 | FRONT AXLE BUSH 831/10325 | 1 | $91.76 | |||
| 100 | PERFORATED SPACER 332/S9360 | 1 | $15.98 | |||
| 120 | Taper Bearing 332/U7739 | 1 | $53.62 | |||
| 130 | MACHINING - LH REAR HUB 332/V7072 | 1 | $1,103.02 | |||
| 140 | MACHINING - RH REAR HUB 332/V7074 | 1 | $1,103.02 | |||
| 150 | WA - AXLE 332/V3498 | 1 | $2,936.08 | |||
| 180 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 190 | Loctite 243 50ml 320/00834 4101/1102 | 1 | $30.29 | |||
| 190 | Loctite 243 - 250ml 4101/1103 | 1 | $122.83 | |||
| 220 | TENSION PIN 826/01784 | 1 | $4.69 | |||
| 230 | WASHER M20 PLAIN 1420/0012D | 1 | $2.11 | |||
| 240 | CAP NIPPLE 835/00017 835/00017A | 1 | $4.12 | |||
| 260 | HOSE GUIDE WA 332/W1665 | 1 | $87.76 | |||
| 280 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.54 | |||
| 290 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 300 | SHIM 1mm OD75 ID40 819/00034 | 1 | $3.08 | |||
| 310 | BACK-UP WASHER 332/R1117 333/S0030 | 1 | $14.07 | |||
| 320 | GREASE NIPPLE G1/8A 90DEG 1450/1001 | 1 | $3.38 | |||
| 330 | SHIM - 40.5x80x0.5thk 332/C9122 | 1 | $18.20 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-
DIAG-F190-2-1-400503 F190-2-1 ARM CONTROL
View Diagram -
DIAG-F290-11-1-400503 F290-11-1 LOAD CONTROL L.M.I REAR AXLE INSERT
View Diagram -
DIAG-F110-1-6-400503 F110-1-6 AXLES FRONT FRONT 4WD 4WS
View Diagram
