Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Cover 333/C6083 | 1 | $260.89 | ||||
| Gear 333/D3478 | 1 | $2,569.11 | ||||
| 1 | Housing 334/C0584 | 1 | $2,829.99 | |||
| 2 | VALVE VENTING 10/907077 | 1 | $62.24 | |||
| 3 | Ring Ring Slide 333/H8368 | 1 | $1,489.22 | |||
| 4 | Bearing . roller 400/N9456 333/C6074 | 1 | $1,860.66 | |||
| 5 | Bearing 400/S5548 | 1 | $2,243.35 | |||
| 6 | Output Shaft 400/02719 | 1 | $6,392.43 | |||
| 7 | Bolt . wheel 333/D3473 | 1 | $67.67 | |||
| 8 | Cover 333/D3474 | 1 | $224.35 | |||
| 10 | Screw locking 333/D3475 | 1 | $87.92 | |||
| 11 | Cover 332/G0402 | 1 | $56.95 | |||
| 12 | SEAL 04/600247 | 1 | $19.99 | |||
| 13 | Shaft 333/C6090 | 1 | $3,231.76 | |||
| 14 | Planetary Gear 400/04636 | 1 | $1,735.94 | |||
| 15 | Carrier 333/C6095 | 1 | $9,144.89 | |||
| 16 | Bolt bolt stop 334/C0588 | 1 | $60.24 | |||
| 17 | Cylinder Roller Bearing 400/04637 | 1 | $595.88 | |||
| 18 | Retainer 332/F6299 | 1 | $28.23 | |||
| 19 | Plug . 333/D3481 | 1 | $29.57 | |||
| 20 | O RING 10/904305 | 1 | $5.61 | |||
| 21 | O Ring 332/F6540 | 1 | $5.00 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-

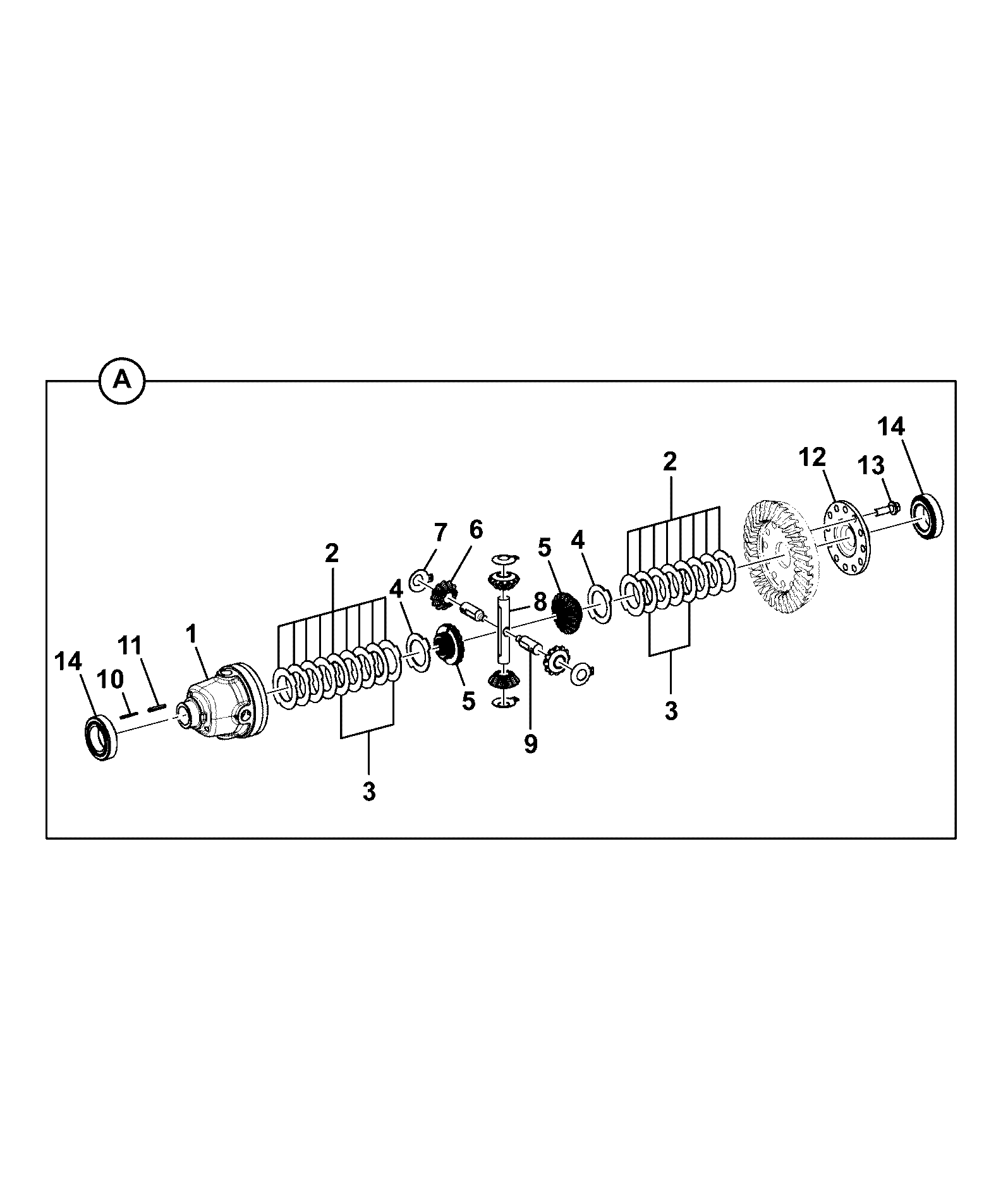

DIAG-F160-1-1-404839 F160-1-1 DIFFERENTIAL ASSEMBLY DIFFERENTIAL ASSEMBLY
View Diagram -
DIAG-F601-1-1-404839 F601-1-1 PS AND AS SALES SPECIALS SALES SPECIAL SS/3544 ZF EC II NON LUC
View Diagram -
DIAG-G1-5-1-404839 G1-5-1 BRAKE, SYSTEM
View Diagram
