Kubota KX71-3S CABIN F20002 BUCKET CYLINDER AND COMPONENT PARTS [CA] Parts Diagram

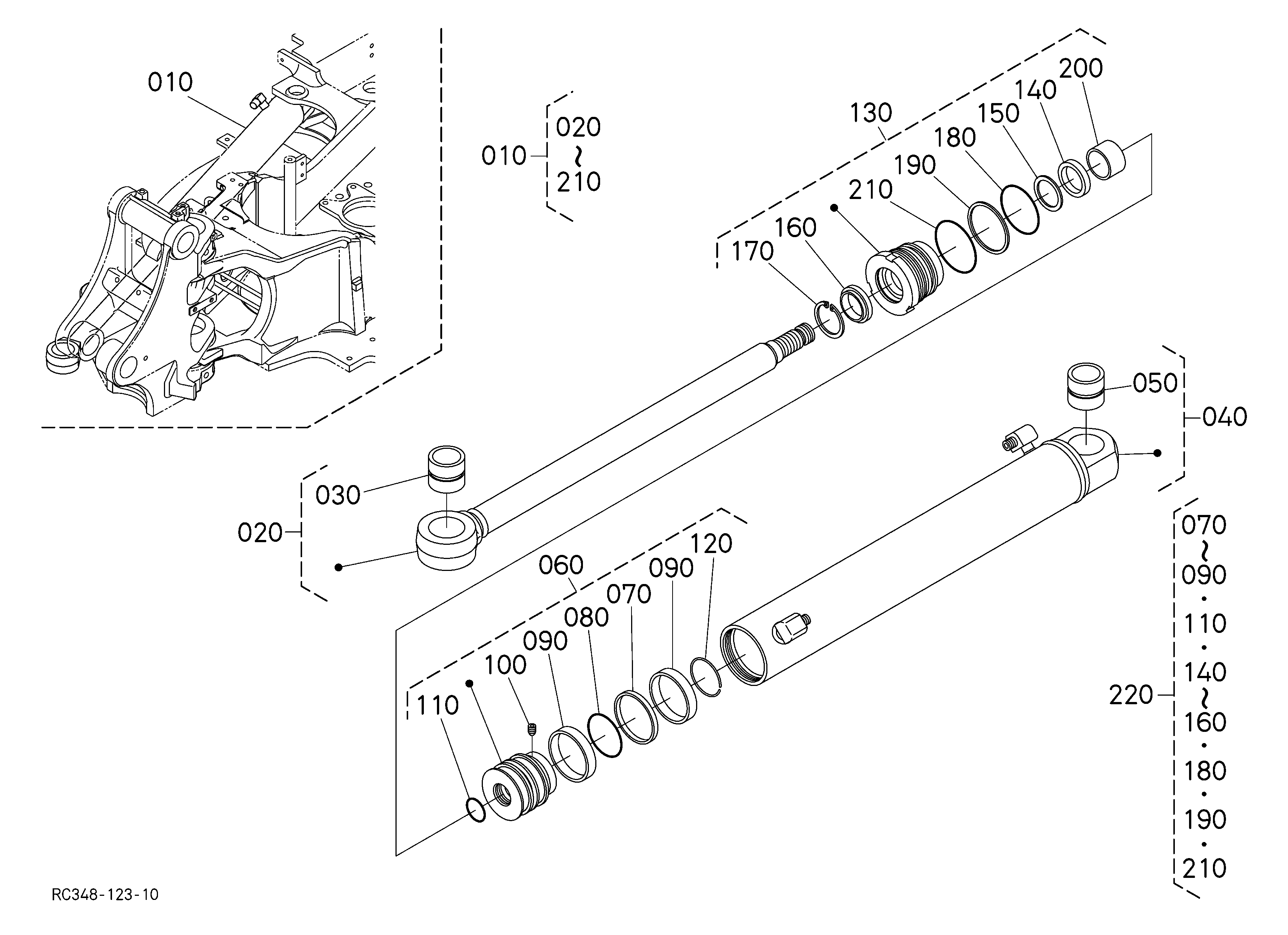

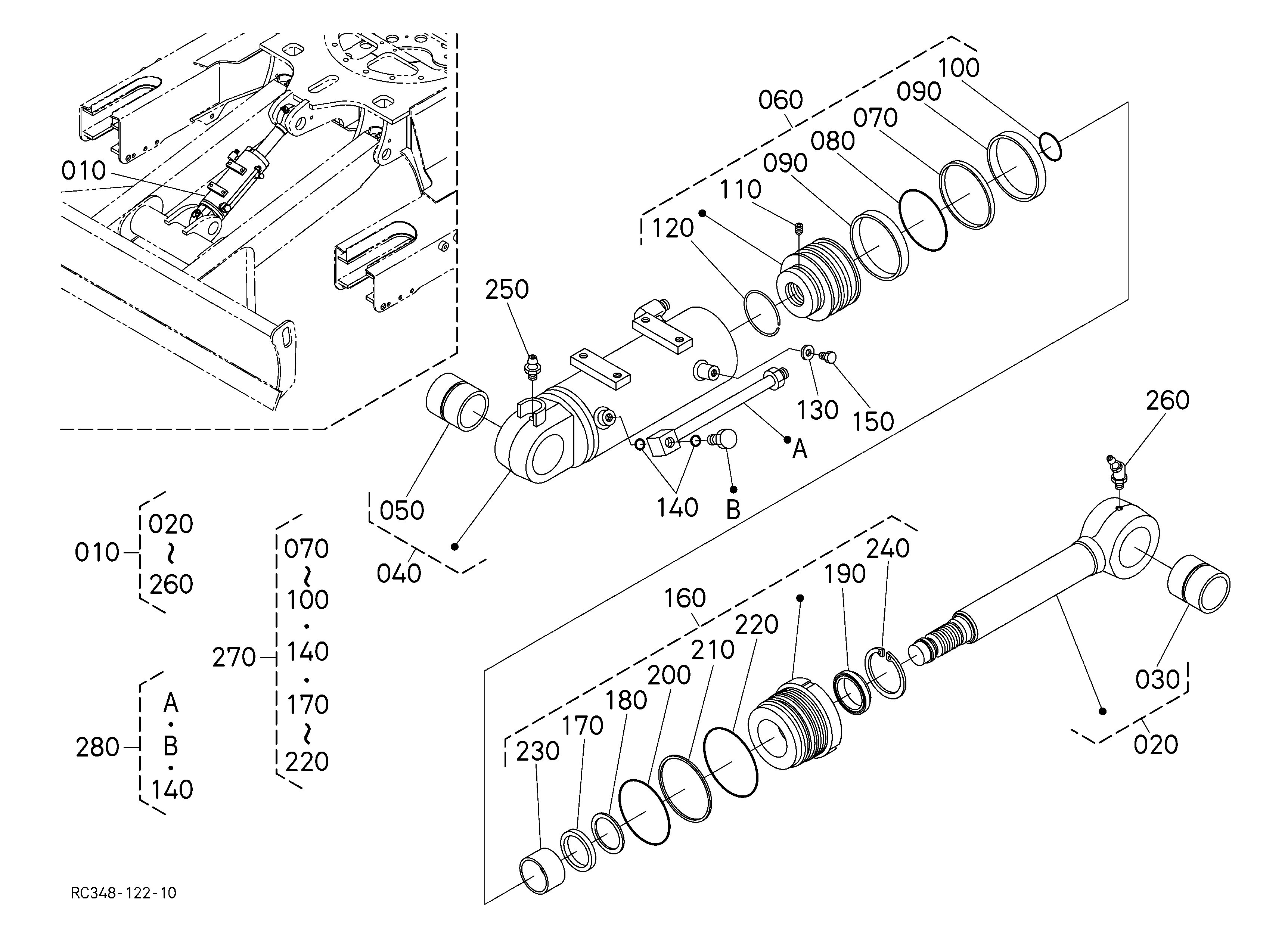

Exploded-view parts diagram "F20002 BUCKET CYLINDER AND COMPONENT PARTS [CA]" for the Kubota KX71-3S CABIN and Kubota KX71-3S CANOPY. 28 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY CYLINDER, B RC348-99900 | 1 | $2,505.50 | |||
| 020 | NIPPLE, GREASE 06616-35010 | 1 | $3.77 | |||
| 030 | KIT, PISTON RC348-72310 | 1 | $2,279.24 | |||
| 040 | BUSHING RC348-76120 | 1 | $199.66 | |||
| 050 | KIT, TUBE CYLIND RC348-72320 Discontinued | 1 | $1,751.54 | |||
| 060 | BUSHING RC348-76230 RC348-76220 | 1 | $244.68 | |||
| 070 | KIT, PISTON RC348-71630 | 1 | $731.86 | |||
| 080 | SEAL, PISTON RC348-71650 | 1 | $202.04 | |||
| 090 | O-RING RC348-71660 | 1 | $14.81 | |||
| 100 | BEARING RC348-71670 | 1 | $121.81 | |||
| 110 | O-RING RC348-71680 | 1 | $14.39 | |||
| 120 | SCREW RC348-71690 | 1 | $30.70 | |||
| 130 | RING, SNAP RC348-71400 | 1 | $22.22 | |||
| 140 | SCREW RC348-71450 | 1 | $31.64 | |||
| 150 | WASHER RC348-71460 | 1 | $20.25 | |||
| 160 | ASSY CYLINDER HE RC348-71710 | 1 | $1,433.32 | |||
| 170 | SEAL, ROD (BOOM) RC348-71490 | 1 | $51.52 | |||
| 180 | RING, BACK UP RC348-71500 | 1 | $110.92 | |||
| 190 | WIPER RC348-71510 | 1 | $53.85 | |||
| 200 | O-RING RC348-71520 | 1 | $13.95 | |||
| 210 | O-RING RC348-71750 | 1 | $36.77 | |||
| 220 | RING, BACK UP RC348-71760 | 1 | $94.10 | |||
| 230 | BUSHING RC348-71550 | 1 | $120.78 | |||
| 240 | RING, SNAP RC348-71560 | 1 | $19.94 | |||
| 250 | O-RING RC348-71570 | 1 | $23.67 | |||
| 260 | KIT SEAL, BUCKET RC348-72330 | 1 | $360.61 | |||
| 270 | Dust Seal, KX12 RC411-66780 RD118-66530 | 1 | $14.78 | |||
| 280 | ASSY, PIPE RC348-72390 | 1 | $320.74 | |||
Showing 1 to 28 of 28 parts
