| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | SHAFT(AXLE,REAR) 3C451-48210 3B481-48210 | 1 | $2,036.99 | |||
| 020 | SEAL, OIL 3C001-48250 | 1 | $92.34 | |||
| 030 | BEARINGBALL RADI 3C001-43140 08101-06213 | 1 | $66.70 | |||
| 040 | Radial Ball Bearing (Radial 55) 3C341-28190 08101-06211 | 1 | $46.51 | |||
| 050 | GEAR, PLANETARY 3C001-48320 | 1 | $227.42 | |||
| 060 | SUPPORT, PLANE.G 3C001-48340 | 1 | $463.90 | |||
| 070 | PIN, PLANETARY G 3C001-48360 | 1 | $68.44 | |||
| 080 | COLLAR, THRUST 36330-48370 | 1 | $14.54 | |||
| 090 | BEARING, NEEDLE 3C001-48350 | 1 | $32.12 | |||
| 100 | PIN, SPRING 05411-00828 | 1 | $2.01 | |||
| 110 | CIRCLIP,EXT 33740-24670 3C001-48390 | 1 | $17.59 | |||
| 120 | RETAINER, AXLE R 3C001-48280 | 1 | $19.62 | |||
| 130 | BOLT, UBS 01779-01020 01779-51020 | 1 | $3.93 | |||
| 140 | GEAR,INTERNAL 3C011-48310 3C011-48312 | 1 | $781.50 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-

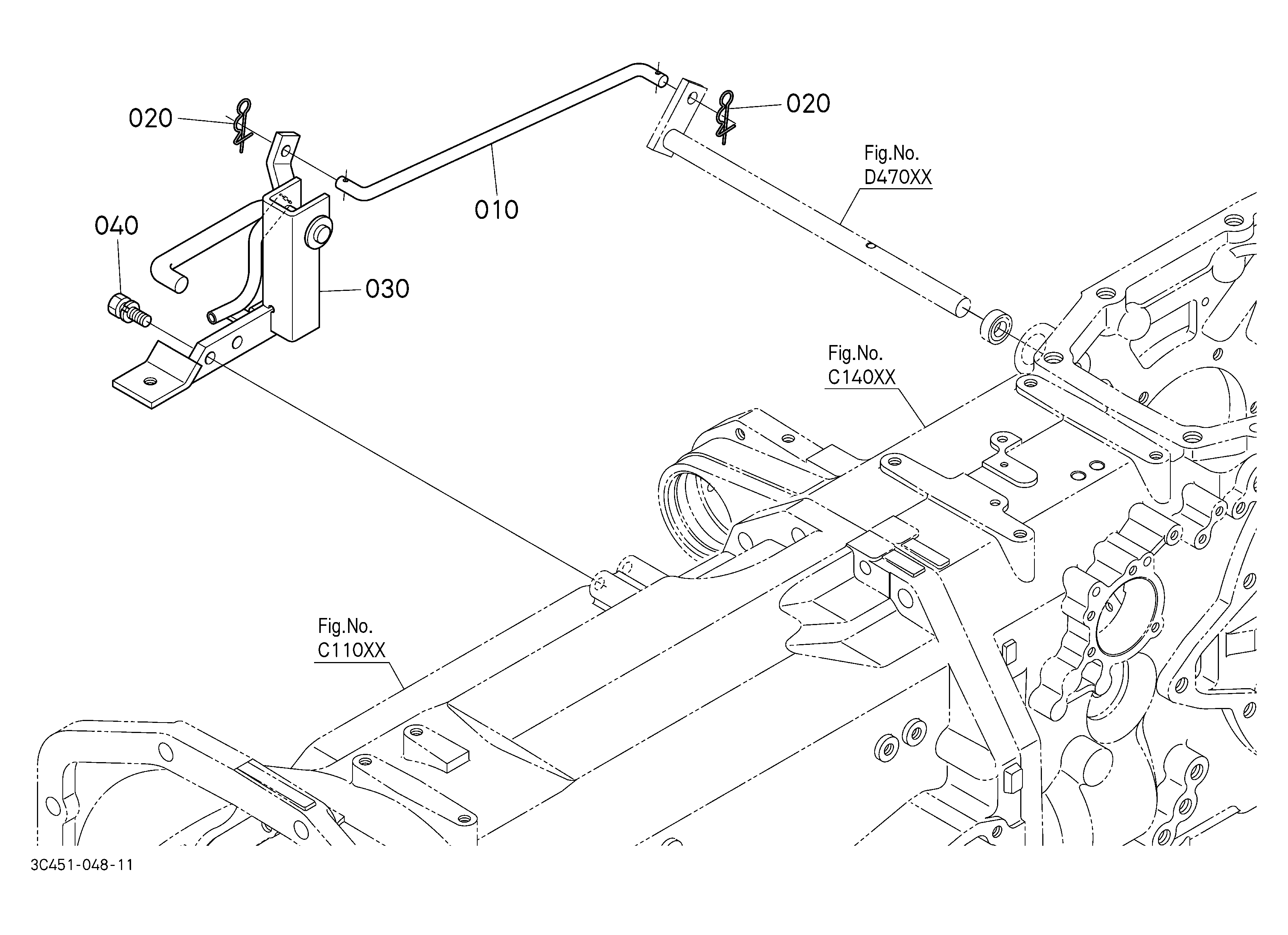

DIAG-F18000-85777 F18000 REAR DIFFERENTIAL LOCK PEDAL
View Diagram -

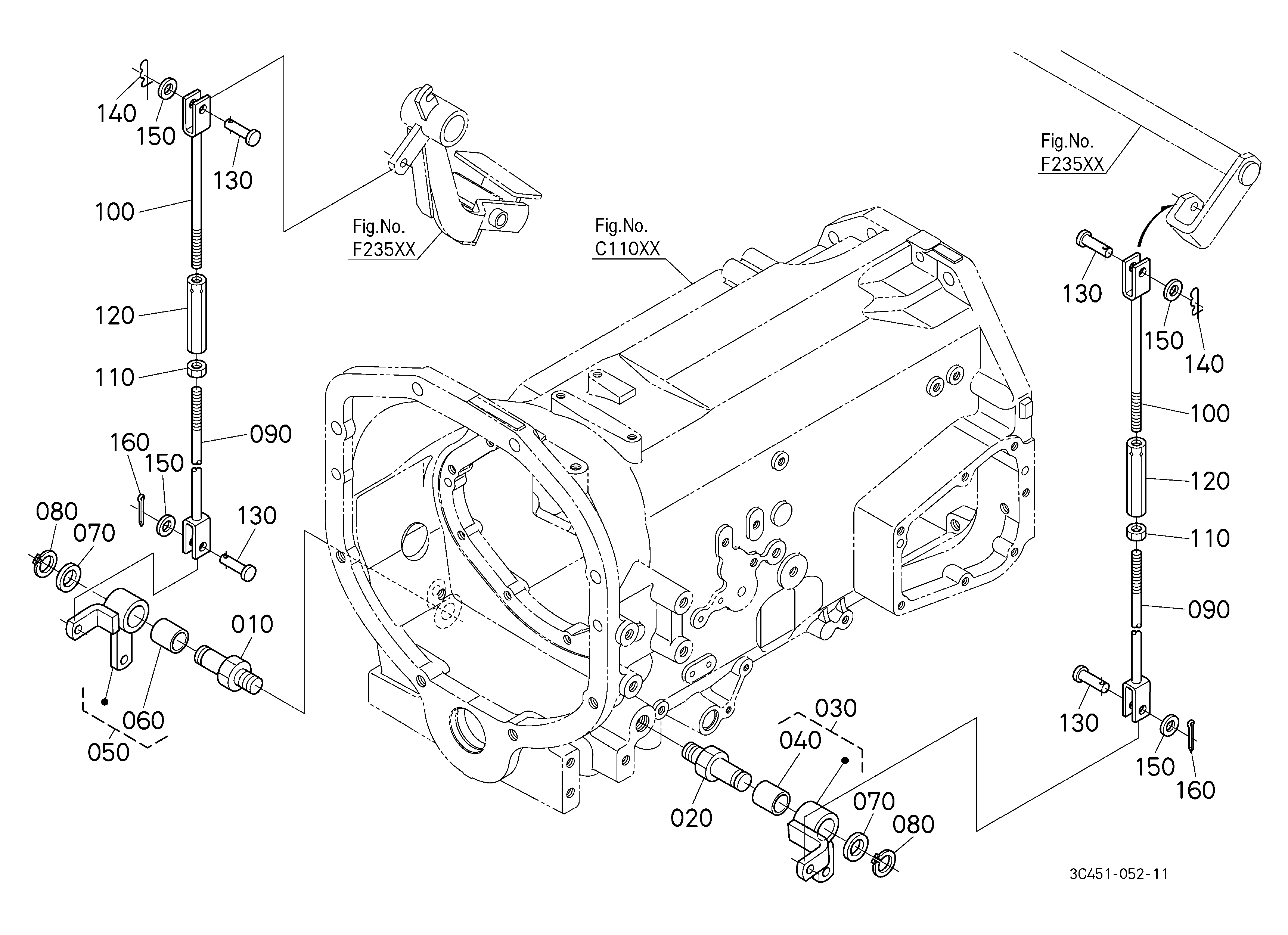

DIAG-F21100-85777 F21100 BRAKE ROD (BRAKE PEDAL)
View Diagram -

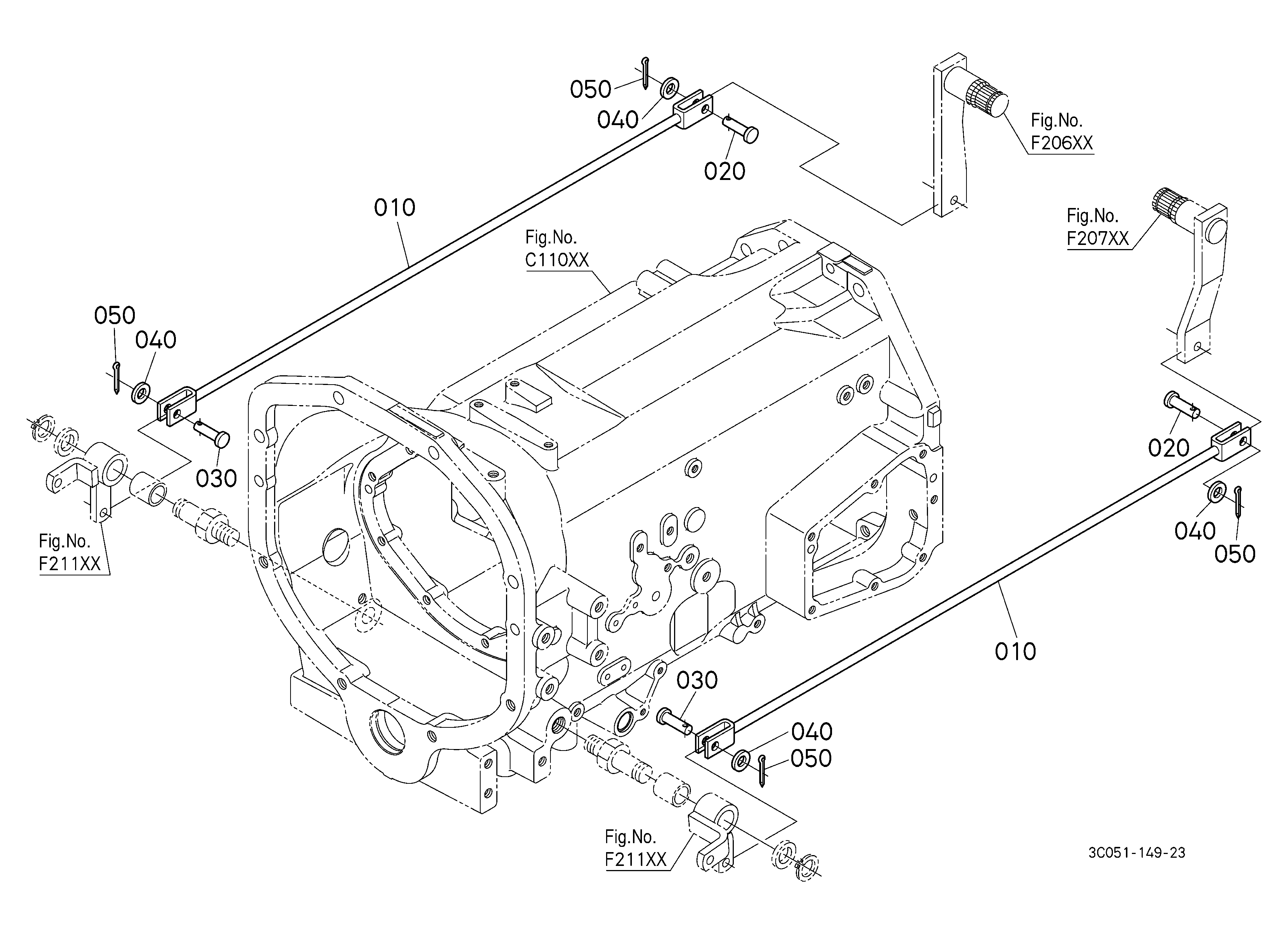

DIAG-F21200-85777 F21200 BRAKE ROD (BRAKE CAM)
View Diagram
