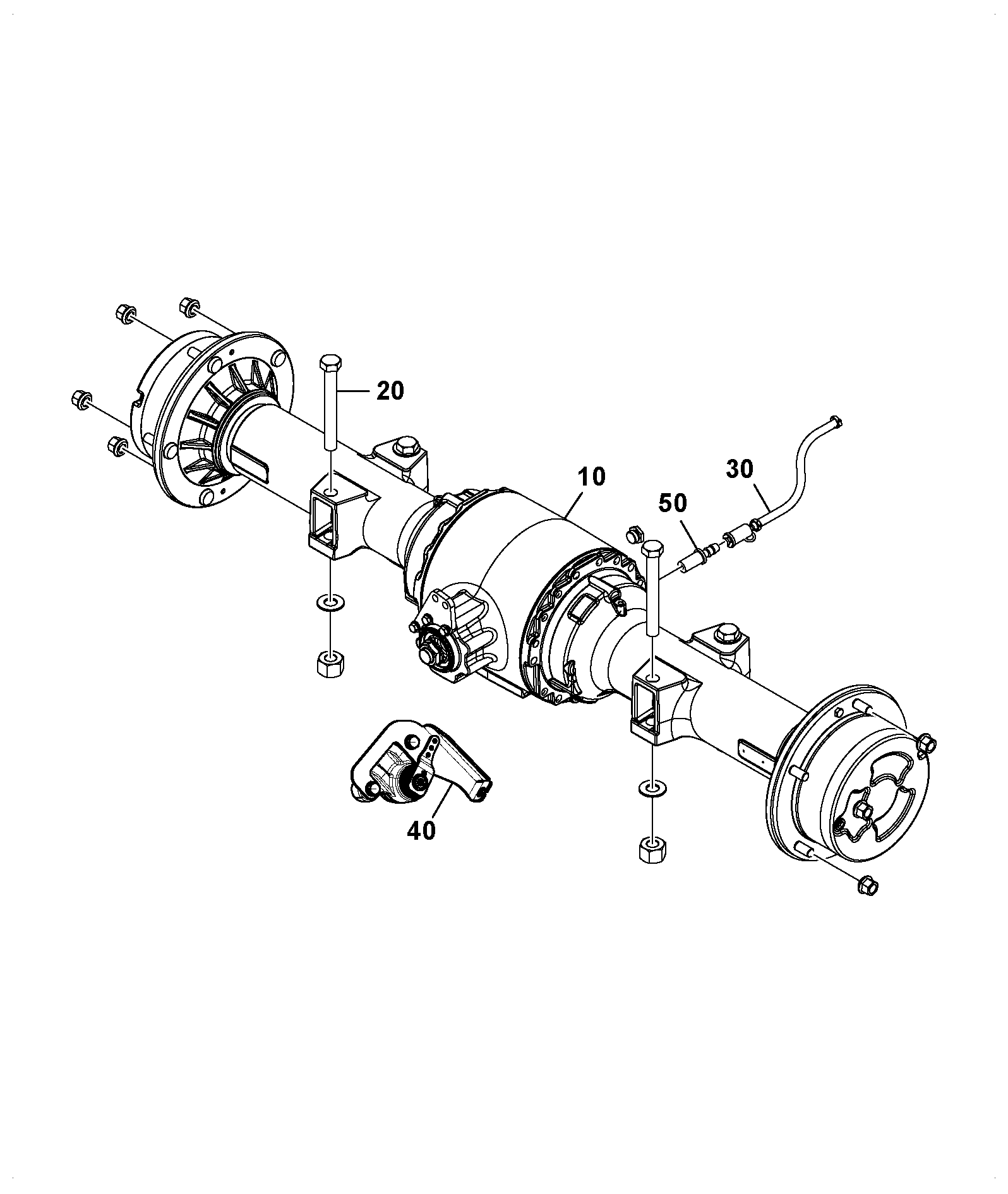

F200-11-1 REAR AXLE INSTALLATION ASSEMBLIES 40kph Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
10	GA REAR AXLE-40 KPH 333/Y9093 334/Y4682	1	AVAILABLE TO ORDER	$13,336.25	Quantity
40	HOSE ADAPTOR 458/20611	1	AVAILABLE TO ORDER	$51.49	Quantity

Showing 1 to 2 of 2 parts
