Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| WHEEL NUT M22 x 1.5 826/01450 826/11355 | 1 | $22.28 | ||||
| 2 | O-RING 10/906476 | 1 | $36.90 | |||
| 3 | STOP-SHAFT 450/24415 | 1 | $21.19 | |||
| 4 | BOLT 450/24423 | 1 | $5.10 | |||
| 5 | BRACKET SUPPORT 10/906477 | 1 | $4,271.75 | |||
| 6 | PIN 10/906478 | 1 | $535.81 | |||
| 8 | SCREW 450/24417 | 1 | $4.35 | |||
| 9 | WASHER-THRUST 450/24424 | 1 | $20.70 | |||
| 10 | NEEDLE BRG KIT (50 per kit) 450/24426 | 1 | $44.15 | |||
| 11 | SPACER 450/24427 | 1 | $76.24 | |||
| 12 | GEAR 10/906481 | 1 | $1,163.22 | |||
| 13 | SEAL, O-RING 10/906482 | 1 | $60.83 | |||
| 14 | GEAR 10/906483 | 1 | $590.22 | |||
| 15 | RING SNAP 10/906484 | 1 | $10.20 | |||
| 15 | SHIM PRESSURE PLAT 10/906489 | 1 | $470.86 | |||
| 15 | SHIM PRESSURE PLAT 10/906490 | 1 | $523.52 | |||
| 16 | DISC DRUM 10/906485 | 1 | $1,308.50 | |||
| 18 | SHIM PRESSURE PLAT 10/906487 | 1 | $499.55 | |||
| 18 | SHIM PRESSURE PLATE 10/906488 | 1 | $517.19 | |||
| 19 | Pin 10/906491 550/43093 | 1 | $22.10 | |||
| 20 | SPRING LOCK RING 10/906492 | 1 | $32.96 | |||
| 21 | RING 10/906495 | 1 | $50.74 | |||
| 21 | SPRING 10/906494 | 1 | $555.46 | |||
| 23 | CUP RETAINING 10/906713 | 1 | $10.36 | |||
| 24 | PLATE-LOCKING 450/24414 | 1 | $17.12 | |||
| 25 | NUT LOCKING 10/906496 | 1 | $323.06 | |||
| 26 | RING-SNAP 450/24418 | 1 | $42.14 | |||
| 27 | BEARING 10/906497 | 1 | $38.94 | |||
| 28 | BEARING 10/906498 | 1 | $793.93 | |||
| 29 | BRACKET GEAR SUPPO 10/906499 | 1 | $1,808.25 | |||
| 30 | GEAR 10/906502 | 1 | $3,661.87 | |||
| 31 | HUB WHEEL 10/906501 | 1 | $3,389.89 | |||
| 32 | WHEEL STUD 450/24431 | 1 | $11.57 | |||
| 33 | O RING 10/906503 | 1 | $59.86 | |||
| 34 | PISTON 10/906504 | 1 | $597.96 | |||
| 35 | O-RING 10/906505 | 1 | $82.78 | |||
| 36 | BEARING 10/906506 | 1 | $304.15 | |||
| 37 | SEAL, OIL 10/906507 | 1 | $375.27 | |||
| 38 | FLANGE RIGHT SIDE 10/906508 | 1 | $16,474.18 | |||
| 39 | BREATHER 10/906509 | 1 | $35.66 | |||
| 40 | FLANGE -LH 10/906510 | 1 | $7,103.01 | |||
| 41 | SCREW 10/906511 | 1 | $36.38 | |||
| 44 | COVER OIL BREATHER 10/906514 | 1 | $3.91 | |||
| 45 | ADAPTOR, ELBOW 90 DEGREE 10/908886 | 1 | $440.13 | |||
| 46 | BRACKET COMPLETE S 10/906515 | 1 | $6,389.34 | |||
Showing 1 to 45 of 45 parts
Related Assemblies
-
DIAG-F2-4-1-404833-15766418 F2-4-1 AXLE ASSEMBLY REAR PR12 L.S.D., DATA PLATE REF. 3228183
View Diagram -

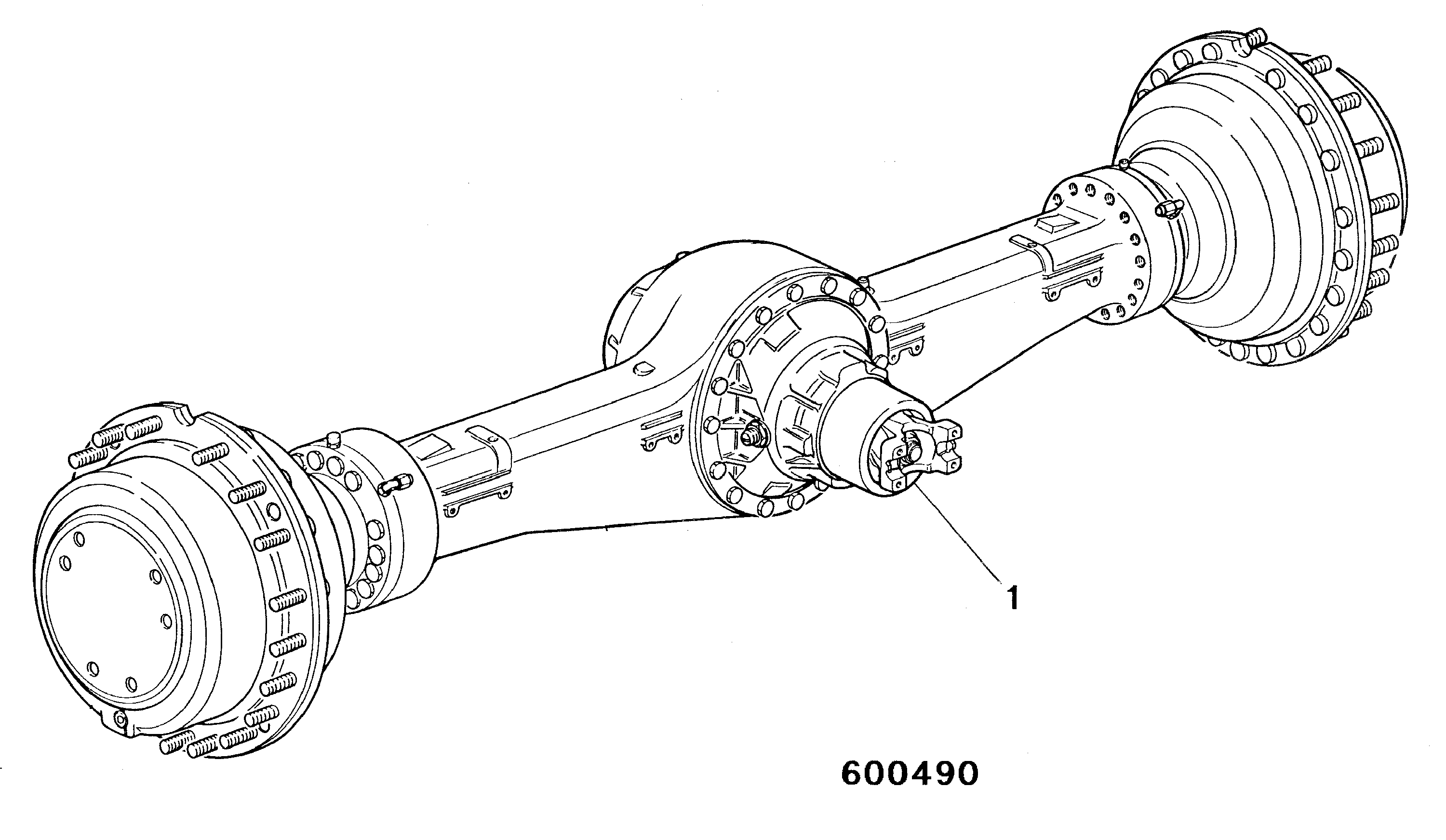

DIAG-F2-3-1-404833-15766410 F2-3-1 AXLE ASSEMBLY REAR PR12 STD., DATA PLATE REF. 3221283
View Diagram -

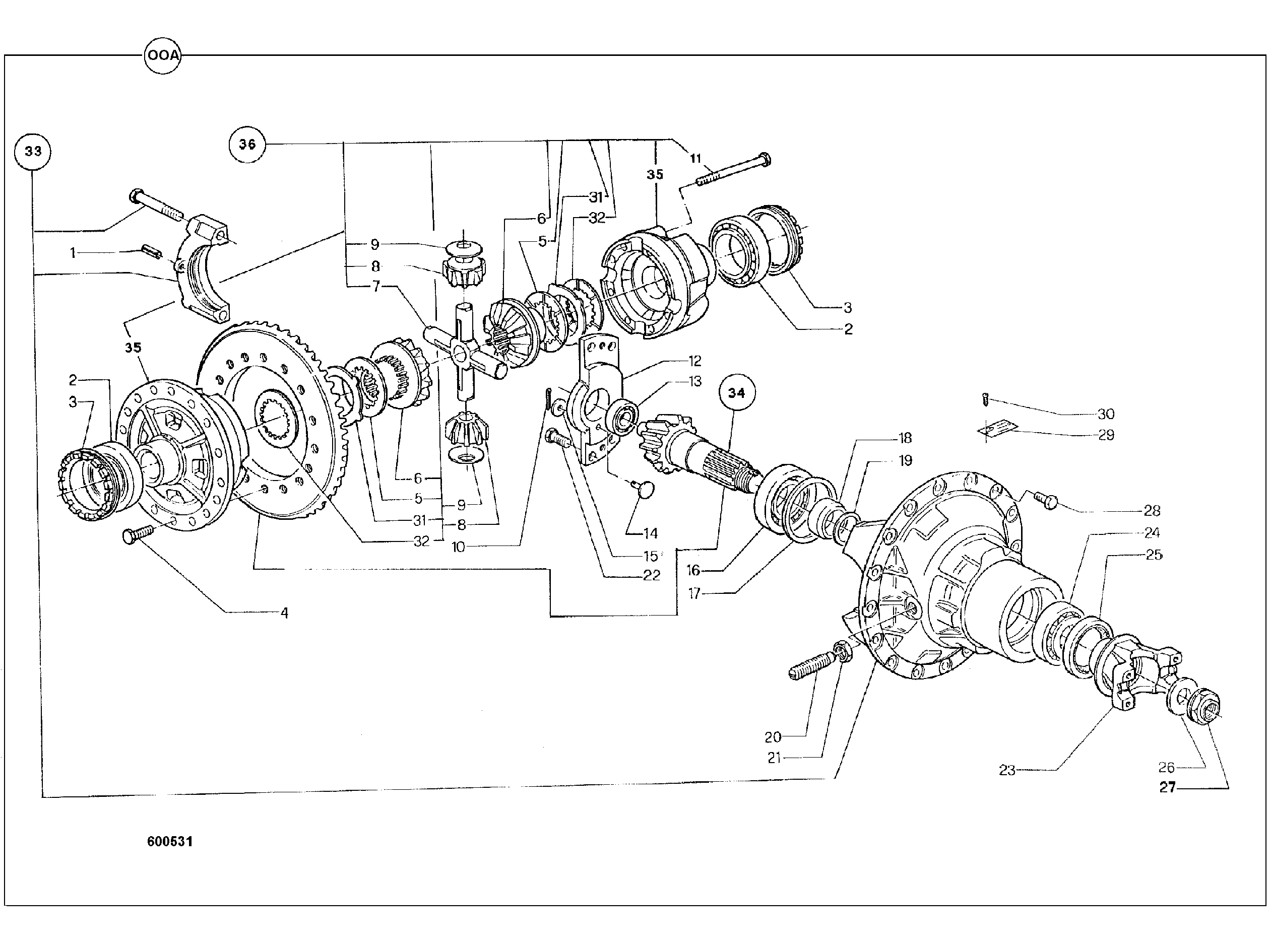

DIAG-F2-4-3-404833-15766422 F2-4-3 DIFFERENTIAL HOUSING ASSEMBLY REAR AXLE, L.S.D.
View Diagram
