Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Kit hub 10/908894 | 1 | $8,169.64 | ||||
| REAR AXLE PR12 LSD 332/P6473 | 1 | $36,608.17 | ||||
| 1 | COVER 10/906574 10/300276 | 1 | $1,101.97 | |||
| 2 | GASKET 10/906575 | 1 | $18.85 | |||
| 3 | STOP-SHAFT 450/24415 | 1 | $21.19 | |||
| 4 | BOLT 450/24423 | 1 | $5.10 | |||
| 5 | HOUSING 10/906576 | 1 | $4,632.33 | |||
| 6 | PIN 10/906577 | 1 | $457.32 | |||
| 8 | SCREW 450/24417 | 1 | $4.35 | |||
| 9 | SHIM 10/906578 | 1 | $22.20 | |||
| 10 | Needle brg ( 62 per kit ) 10/906579 | 1 | $59.95 | |||
| 11 | SPACER 10/906580 | 1 | $63.78 | |||
| 12 | GEAR 10/906581 | 1 | $867.65 | |||
| 13 | SHIM THRUST BEARIN 10/906582 | 1 | $52.32 | |||
| 14 | GEAR 10/906583 | 1 | $629.60 | |||
| 15 | RING SNAP 10/906584 | 1 | $8.77 | |||
| 16 | DRUM 10/906585 | 1 | $891.23 | |||
| 17 | DISC BRAKE 10/300200 | 1 | $622.56 | |||
| 18 | SHIM 10/906587 | 1 | $654.94 | |||
| 18 | SHIM 10/906588 | 1 | $559.01 | |||
| 18 | SHIM 10/906589 | 1 | $727.82 | |||
| 18 | SHIM 10/906590 | 1 | $597.68 | |||
| 19 | PIN 10/906591 | 1 | $167.45 | |||
| 20 | RING LOCKING 10/906592 | 1 | $86.28 | |||
| 21 | PLATE PRESSURE 10/300280 | 1 | $2,600.15 | |||
| 22 | RING 10/906495 | 1 | $50.74 | |||
| 23 | CUP RETAINING 10/906713 | 1 | $10.36 | |||
| 24 | PLATE-LOCKING 450/24414 | 1 | $17.12 | |||
| 25 | NUT LOCKING 10/906496 | 1 | $323.06 | |||
| 26 | RING-SNAP 450/24418 | 1 | $42.14 | |||
| 27 | BEARING 10/906497 | 1 | $38.94 | |||
| 28 | BEARING 10/906498 | 1 | $793.93 | |||
| 29 | GEAR 10/300281 | 1 | $3,206.26 | |||
| 30 | GEAR 10/906595 | 1 | $3,347.65 | |||
| 31 | Hub wheel 332/D3273 | 1 | $3,962.69 | |||
| 33 | GASKET 10/906597 | 1 | $4.11 | |||
| 34 | PISTON 10/906598 | 1 | $989.90 | |||
| 35 | GASKET 10/906599 | 1 | $4.11 | |||
| 36 | BEARING 10/906596 10/908883 | 1 | $394.60 | |||
| 37 | SEAL 332/D3299 | 1 | $431.39 | |||
| 38 | Hub sleeve right h 10/906603 332/D3275 | 1 | $8,214.30 | |||
| 39 | BREATHER 10/906509 | 1 | $35.66 | |||
| 40 | ADAPTOR, ELBOW 90 DEGREE 10/908886 | 1 | $440.13 | |||
| 41 | GASKET 10/906604 | 1 | $105.77 | |||
| 42 | Hub sleeve left ha 332/D3279 | 1 | $8,830.80 | |||
| 43 | SCREW 10/906606 | 1 | $40.49 | |||
| 44 | COVER OIL BREATHER 10/906514 | 1 | $3.91 | |||
| 45 | GUARD 450/24432 | 1 | $97.72 | |||
Showing 1 to 48 of 48 parts
Related Assemblies
-

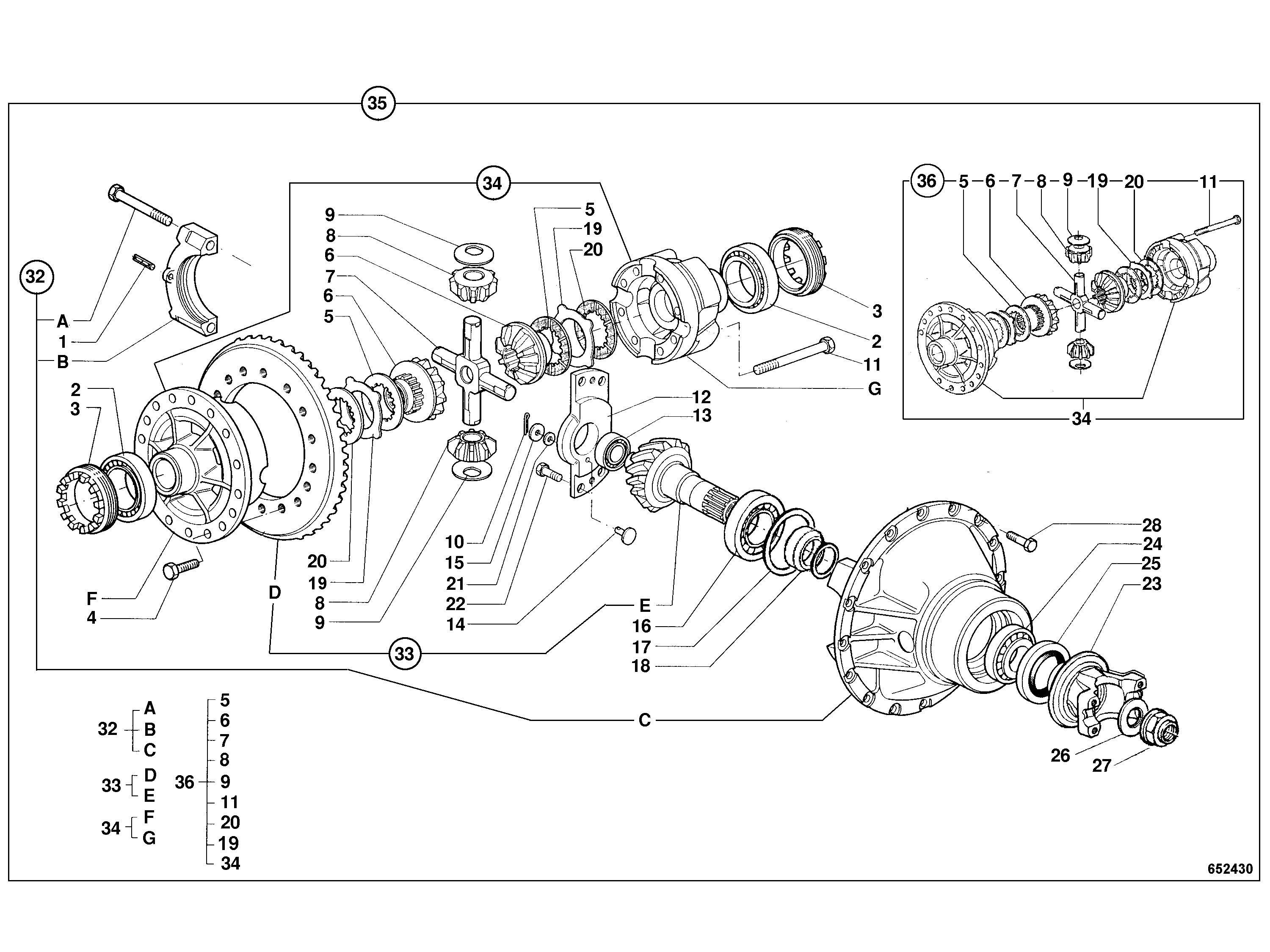

DIAG-F2-14-1-404839 F2-14-1 DIFFERENTIAL,L.S.D. REAR PR12,10/300195
View Diagram -

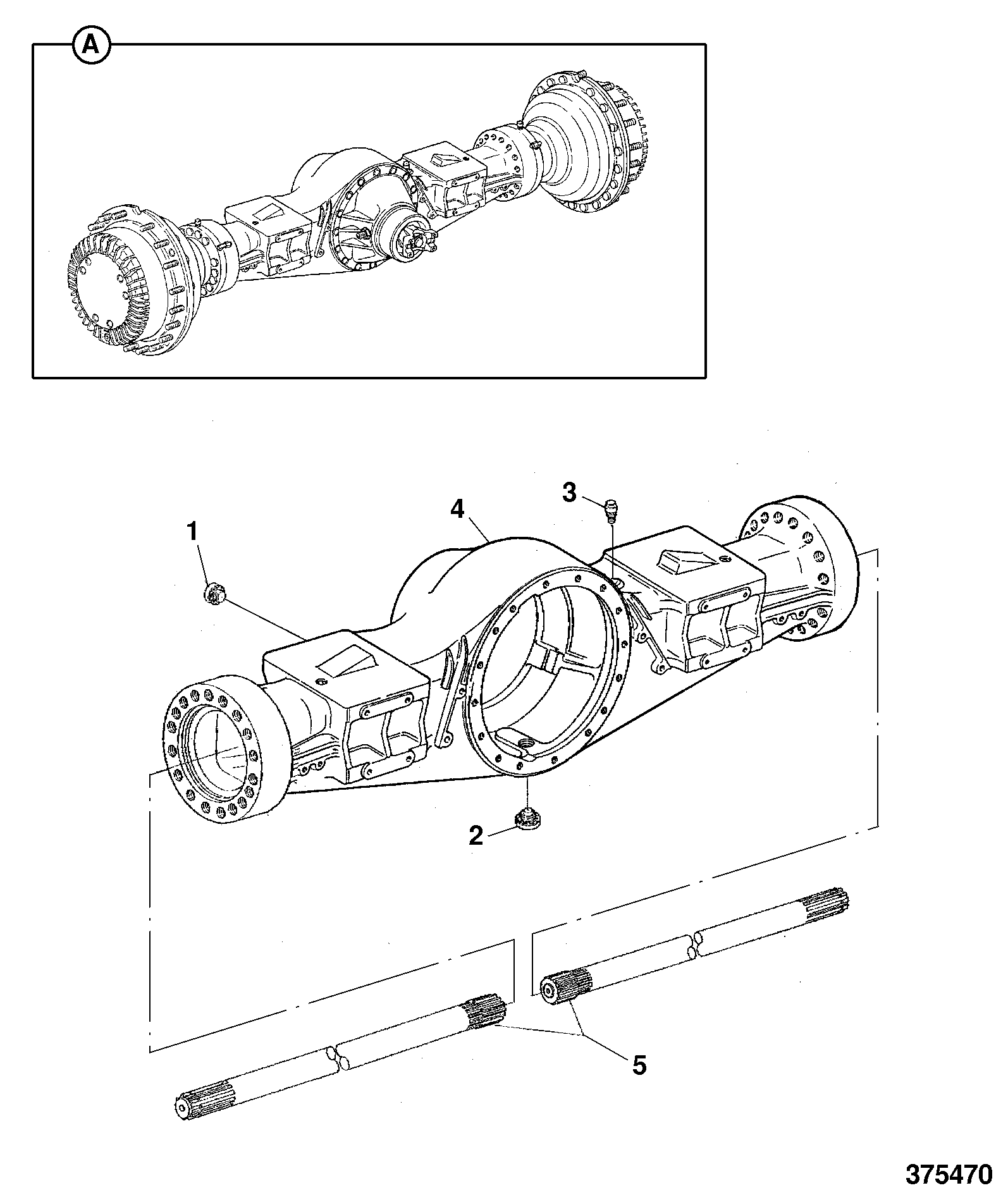

DIAG-F2-13-2-404839 F2-13-2 AXLE ASSEMBLY LSD REAR PR12, 332/P6473, DATA PLATE REF: 3485363
View Diagram -
DIAG-F2-12-2-404839 F2-12-2 HUB ASSEMBLY REAR PR12, 332/P6472
View Diagram
