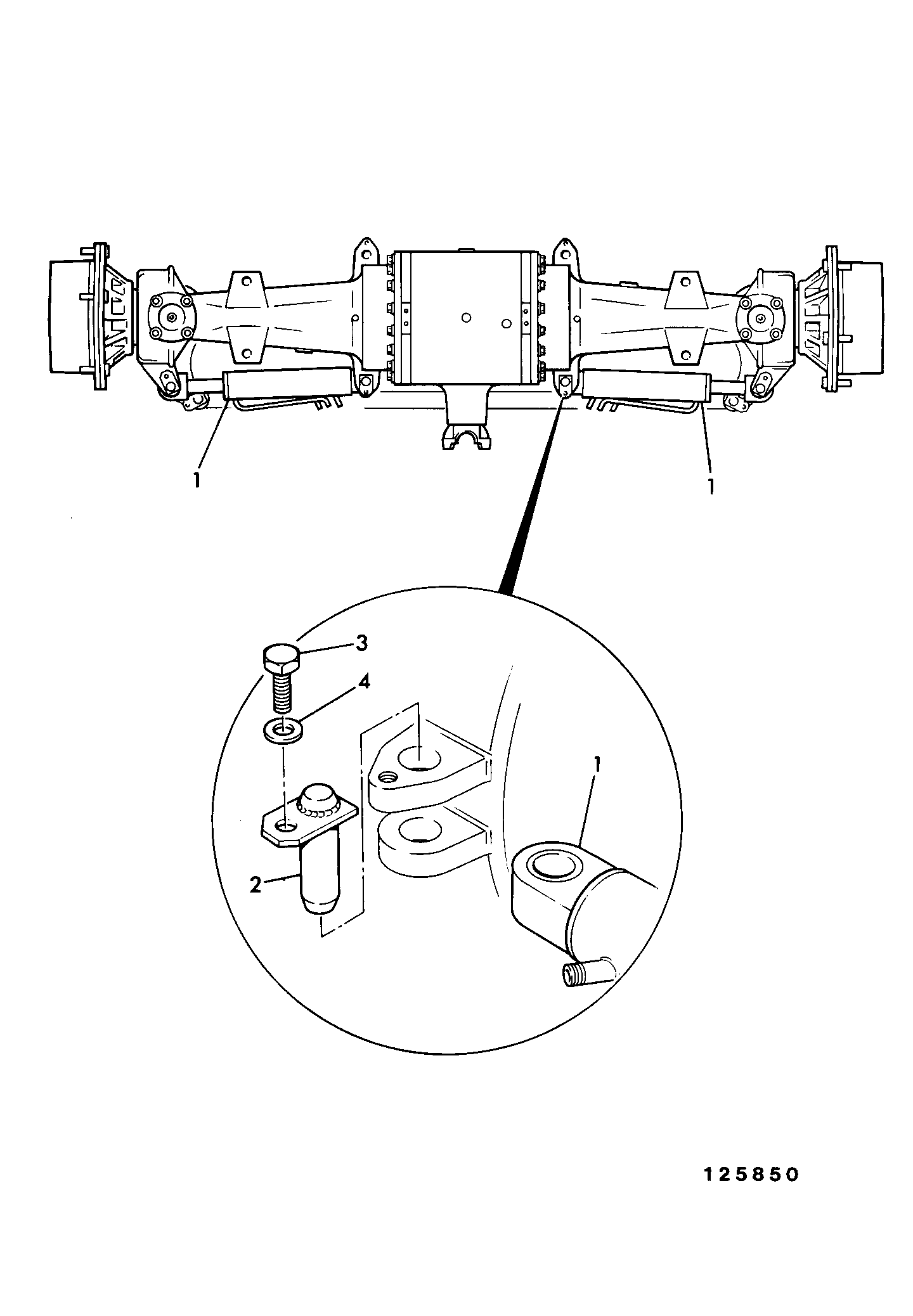

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | G.A.SD55 AXLE 23.625:1 PI 448/12800 | 1 | $20,449.41 | |||
| 1 | GA SD55 PIVOT MT AXLE 448/56060 | 1 | $20,405.48 | |||
| 6 | AXLE CENTRE CASE BEAM 448/10103 | 1 | $4,470.07 | |||
| 6 | AXLE CENTRE CASING 448/10101 | 1 | $751.84 | |||
| 7 | BEARING - TAPER ROLLER 907/M5375 | 1 | $254.73 | |||
| 8 | CYLINDRICAL ROLLER BEARIN 907/08400 | 1 | $111.82 | |||
| 9 | INT CIRCLIP 80mm [1300 08 2203/1082 | 1 | $2.14 | |||
| 10 | DRIVESHAFT SEAL 904/50040 | 1 | $61.12 | |||
| 11 | MASKING RING 448/04802 | 1 | $1.49 | |||
| 12 | WASHER BONDED 1" BSP 1406/0021 | 1 | $6.00 | |||
| 14 | DRAIN PLUG 826/00425 | 1 | $7.95 | |||
| 17 | BOLT M10 X 35L 826/01434 | 1 | $10.09 | |||
| 18 | LINER BUSH 808/00252 | 1 | $585.22 | |||
| 20 | PIN.PIVOT.REAR AXLE.506B 811/10079 | 1 | $590.52 | |||
| 21 | NUT 1/2UNF STD SELF LOCK 1340/0403Z | 1 | $3.41 | |||
| 22 | BOLT 1/2UNFx6 HT 1305/3438Z | 1 | $14.46 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-
DIAG-F1-8-1-400234 F1-8-1 RAM, SWAY FRONT AXLE INSTALLATION
View Diagram -
DIAG-F2-2-2-400234 F2-2-2 DIFFERENTIAL ASSY
View Diagram -
DIAG-F1-7-1-400234 F1-7-1 RAM, STEERING FRONT AXLE INSTALLATION
View Diagram
