Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

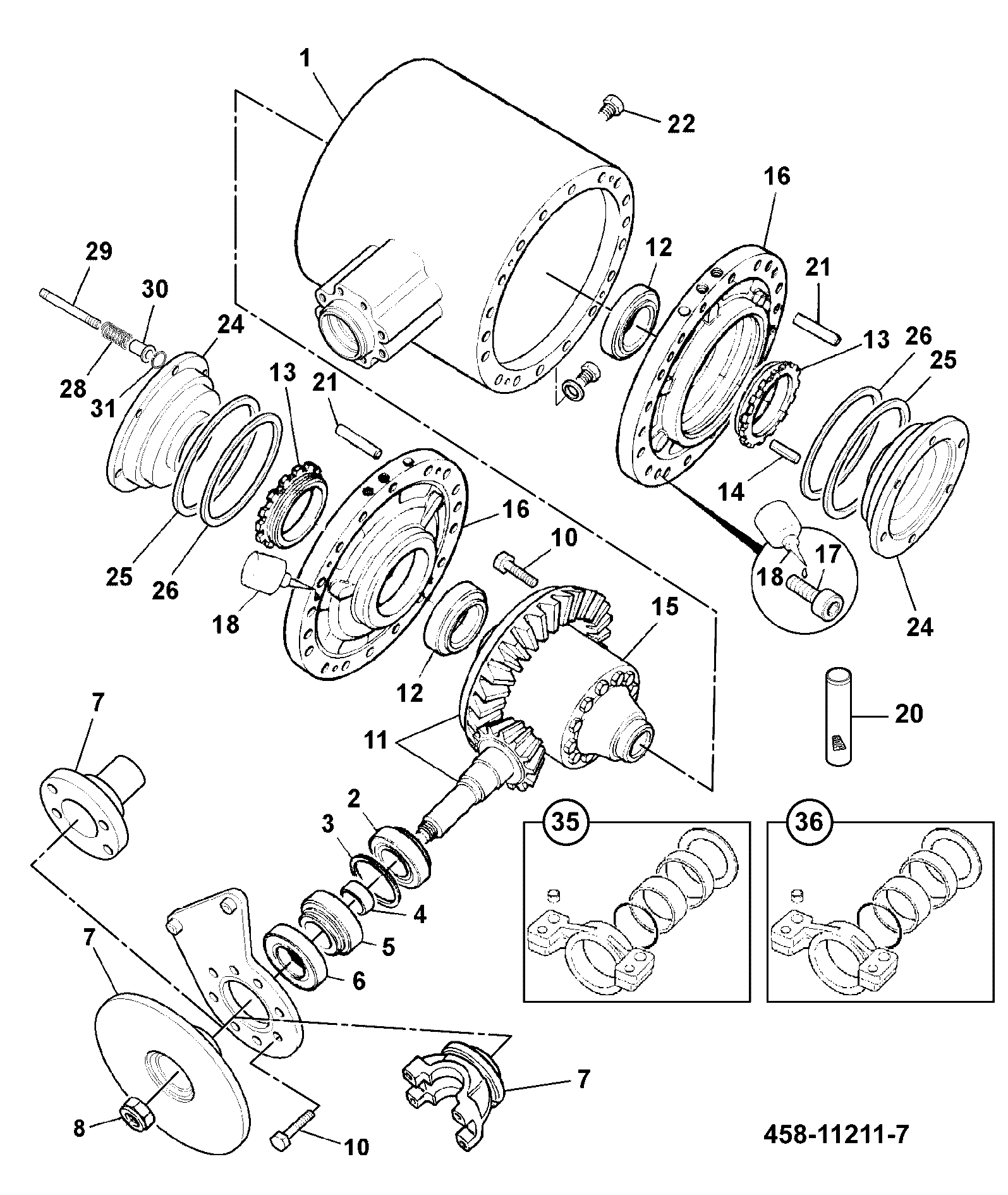

| GA DRIVEHEAD, NORM, RH 458/11242 | 1 | $8,482.46 | ||||
| 1 | DRIVEHEAD CASING ROUND PTR.2SNTS M/C'D 453/22901 | 1 | $3,221.20 | |||
| 2 | BEARING -TAPER ROLLER 907/09000 | 1 | $292.88 | |||
| 3 | SHIM KIT 921/01900 | 1 | $32.86 | |||
| 4 | SPACER KIT 921/53400 | 1 | $745.77 | |||
| 5 | BEARING - TAPER ROLLER 907/M5375 | 1 | $254.73 | |||
| 6 | SEAL - TRIPLE LIP 904/20172 | 1 | $37.32 | |||
| 7 | COUPLING YOKE - 1480 458/20894 | 1 | $595.60 | |||
| 8 | STAKE NUT M30 X 2 826/01744 826/M7635 | 1 | $12.55 | |||
| 10 | BOLT - VERBUS RIPP - M12 x 30 826/01080 | 1 | $3.41 | |||
| 11 | GA C/WHEEL & PINION 11/37 458/70252 | 1 | $2,339.98 | |||
| 12 | BEARING -TAPER ROLLER 907/50100 | 1 | $229.63 | |||
| 13 | DIFF SIDE NUT 450/10403 | 1 | $141.40 | |||
| 14 | TENSION PIN 826/00818 | 1 | $0.51 | |||
| 15 | G.A. DIFFERENTIAL 450/10900 | 1 | $6,081.82 | |||
| 16 | BRAKE PISTON HOUSING (CRB 458/20365 458/M5480 | 1 | $1,240.77 | |||
| 17 | M10 X 25 SOCKET CAP SCREW 1391/3407 | 1 | $4.09 | |||
| 18 | MULTIGASKET 4102/1200 4102/1212 | 1 | $30.15 | |||
| 21 | DOWEL 16X55 826/00919 | 1 | $50.94 | |||
| 22 | 3/4" BSP TAPER PLUG - MAG 450/10216 816/M3848 | 1 | $11.39 | |||
| 24 | PISTON BRAKE 458/20371 | 1 | $602.35 | |||
| 25 | BRAKE SEAL 813/50012 | 1 | $24.79 | |||
| 26 | BRAKE SEAL 813/50026 | 1 | $20.45 | |||
| 28 | COMPRESSION SPRING 814/00365 | 1 | $19.86 | |||
| 29 | 2IN - BRAKE BACK-OFF 450/18204 | 1 | $5.16 | |||
| 30 | EXTERNAL TENSION BUSH -FL 448/16905 | 1 | $20.82 | |||
| 31 | CIRCLIP(KANBAN) 2203/1020 | 1 | $5.07 | |||
Showing 1 to 27 of 27 parts
