Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

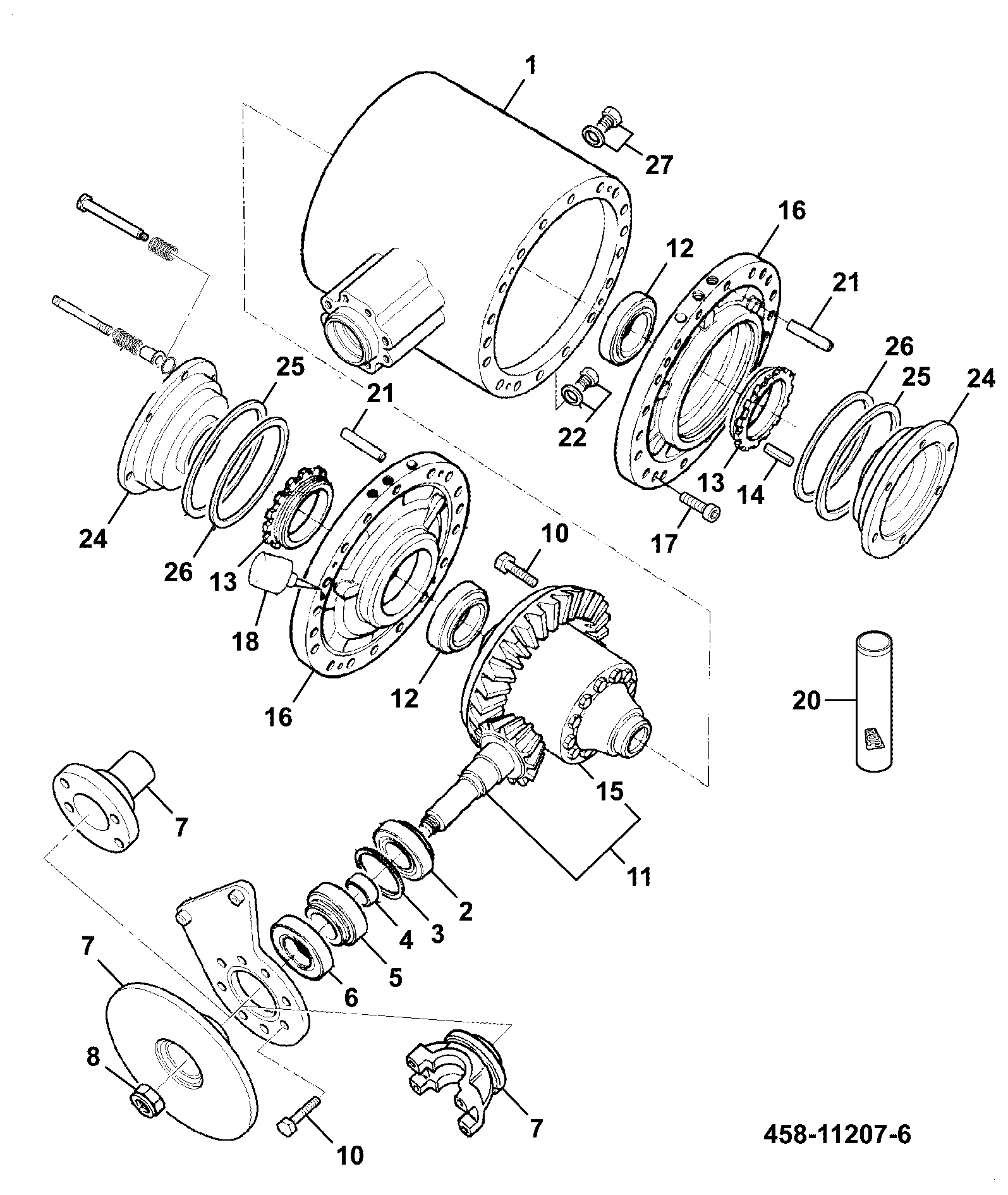

| GA DRIVEHEAD NORM RH 458/11207 | 1 | $3,535.16 | ||||
| 1 | DRIVEHEAD CASING ROUND PIN MOUNT BLK. 453/30691 | 1 | $3,412.29 | |||
| 2 | BEARING -TAPER ROLLER 907/09000 | 1 | $292.88 | |||
| 3 | SHIM KIT 921/01900 | 1 | $32.86 | |||
| 4 | SPACER KIT 921/53400 | 1 | $745.77 | |||
| 5 | BEARING - TAPER ROLLER 907/M5375 | 1 | $254.73 | |||
| 6 | SEAL - TRIPLE LIP 904/20172 | 1 | $37.32 | |||
| 7 | COUPLING YOKE - 1480 438/00006 458/20813 | 1 | $302.90 | |||
| 8 | STAKE NUT M30 X 2 826/01744 826/M7635 | 1 | $12.55 | |||
| 10 | BOLT - VERBUS RIPP - M12 x 30 826/01080 | 1 | $3.41 | |||
| 11 | GA C/WHEEL & PINION 13/38 458/W4742 | 1 | $590.80 | |||
| 12 | BEARING -TAPER ROLLER 907/50100 | 1 | $229.63 | |||
| 13 | DIFF SIDE NUT 450/10403 | 1 | $141.40 | |||
| 14 | TENSION PIN 826/00818 | 1 | $0.51 | |||
| 15 | G.A. DIFFERENTIAL 450/10900 | 1 | $6,081.82 | |||
| 16 | BRAKE PISTON HOUSING (SRB 458/20235 458/M5481 | 1 | $855.23 | |||
| 17 | M10 X 25 SOCKET CAP SCREW 1391/3407 | 1 | $4.09 | |||
| 18 | MULTIGASKET 4102/1200 4102/1212 | 1 | $30.15 | |||
| 21 | DOWEL 16X55 826/00919 | 1 | $50.94 | |||
| 22 | 3/4" BSP TAPER PLUG - MAG 450/10216 816/M3848 | 1 | $11.39 | |||
| 24 | PISTON-BRAKE 450/10409 458/20236 | 1 | $695.66 | |||
| 25 | BRAKE SEAL 813/50012 | 1 | $24.79 | |||
| 26 | BRAKE SEAL 813/50026 | 1 | $20.45 | |||
| 27 | 3/4" BSP TAPER PLUG 816/M3849 | 1 | $6.69 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-F150-15-1-402278 F150-15-1 458/11206 DRIVEHEAD ASSEMBLY
View Diagram -

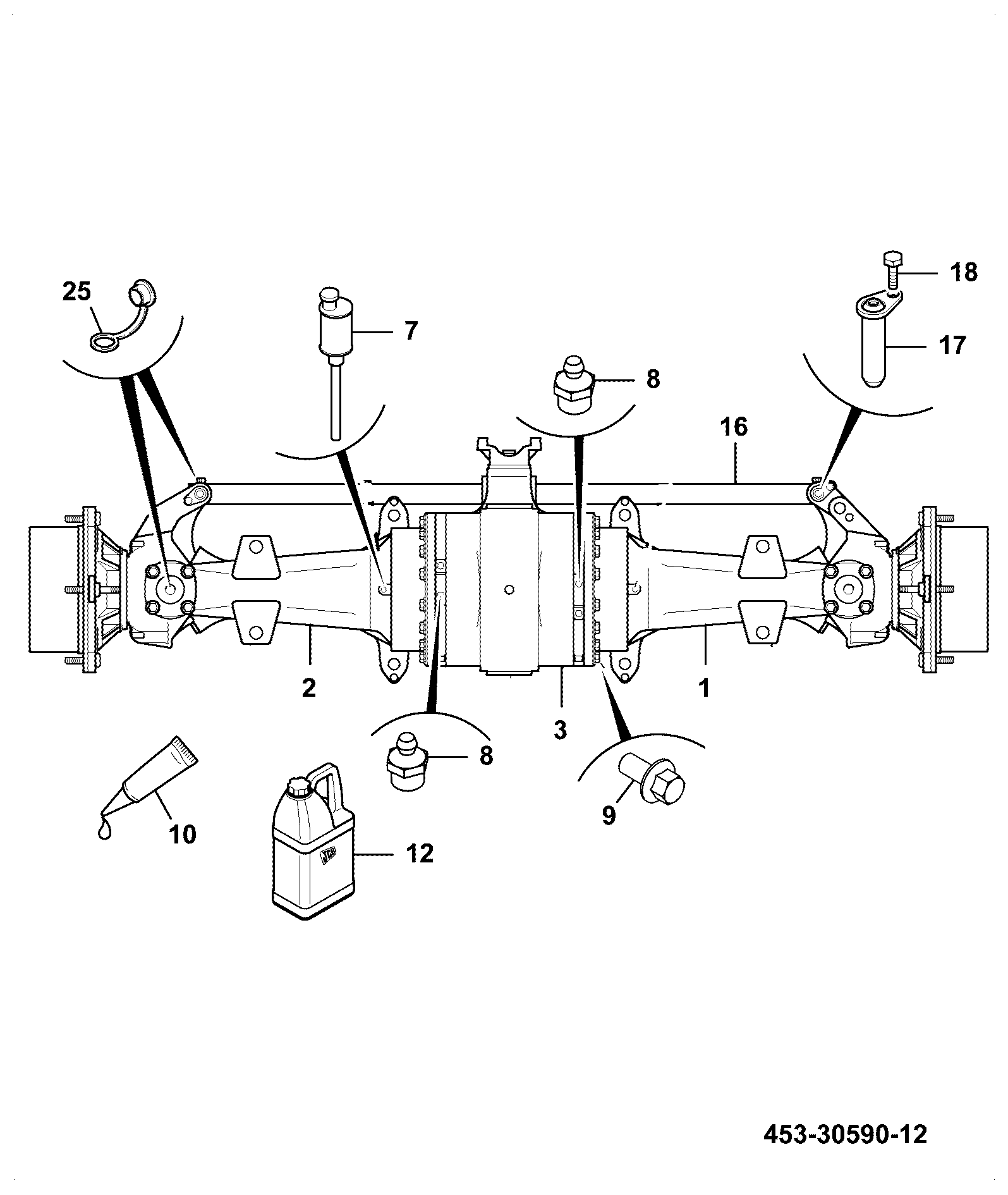

DIAG-F110-20-1-402278 F110-20-1 453/30630 AXLES FRONT PAD MOUNTING
View Diagram -
DIAG-F210-15-1-402278 F210-15-1 453/34140 AXLES REAR PIN MOUNTING
View Diagram
