Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ARM, SPEED LH K3181-42358 K3181-42440 | 1 | $152.58 | |||
| 030 | Control Lever Bushing K3211-42320 | 1 | $7.89 | |||
| 040 | BOLT 01127-50816 | 1 | $1.21 | |||
| 050 | NUT, LOCK 02576-50160 | 1 | $8.09 | |||
| 060 | ROD, SPEED LH K3181-42380 K3181-42385 | 1 | $33.78 | |||
| 070 | BOLT, REAMER K3211-42440 | 1 | $1.33 | |||
| 080 | NUT 50591-62370 02556-50080 | 1 | $1.51 | |||
| 082 | Pin 05122-50835 | 1 | $2.26 | |||
| 084 | Rue Ring Cotter (Retaining Ring) K1211-91120 K1211-91122 | 1 | $0.51 | |||
| 086 | WASHER (PLAIN) K3181-42330 K3181-42332 | 1 | $1.25 | |||
| 095 | SPRING, PLATE K3181-36880 | 1 | $1.48 | |||
| 100 | LEVER, SPEED LH K3181-42460 K3181-42462 | 1 | $93.93 | |||
| 110 | Short Square Bolt K1122-91330 K1122-91332 | 1 | $0.60 | |||
| 123 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 125 | Nut Fastener W2336-07200 02114-50080 | 1 | $0.60 | |||
| 130 | Speed Control Lever Grip K3181-42370 K3181-42372 | 1 | $12.50 | |||
| 140 | SPRING, SPEED K3111-42220 K3111-42222 | 1 | $2.31 | |||
| 150 | Plain Washer (Flat Washer) 04013-10100 04013-50100 | 1 | $0.60 | |||
| 160 | Rue Ring Cotter K1211-91130 K1211-91132 | 1 | $0.60 | |||
| 170 | ROD, SPEED LIMIT K3211-42470 | 1 | $25.91 | |||
| 180 | Nut (Fastener) 02117-50100 02118-50100 | 1 | $0.80 | |||
| 190 | BOLT 01152-50840 01155-50840 | 1 | $1.29 | |||
| 200 | Nut Fastener 15151-04430 02156-50080 | 1 | $0.60 | |||
| 210 | WASHER (PLAIN, 3 K1122-11750 K1122-11752 | 1 | $1.25 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-F14100-194559 F14100 MOTION CONTROL LEVER RH
View Diagram -
DIAG-F14700-194559 F14700 MOTION CONTROL ARM
View Diagram -

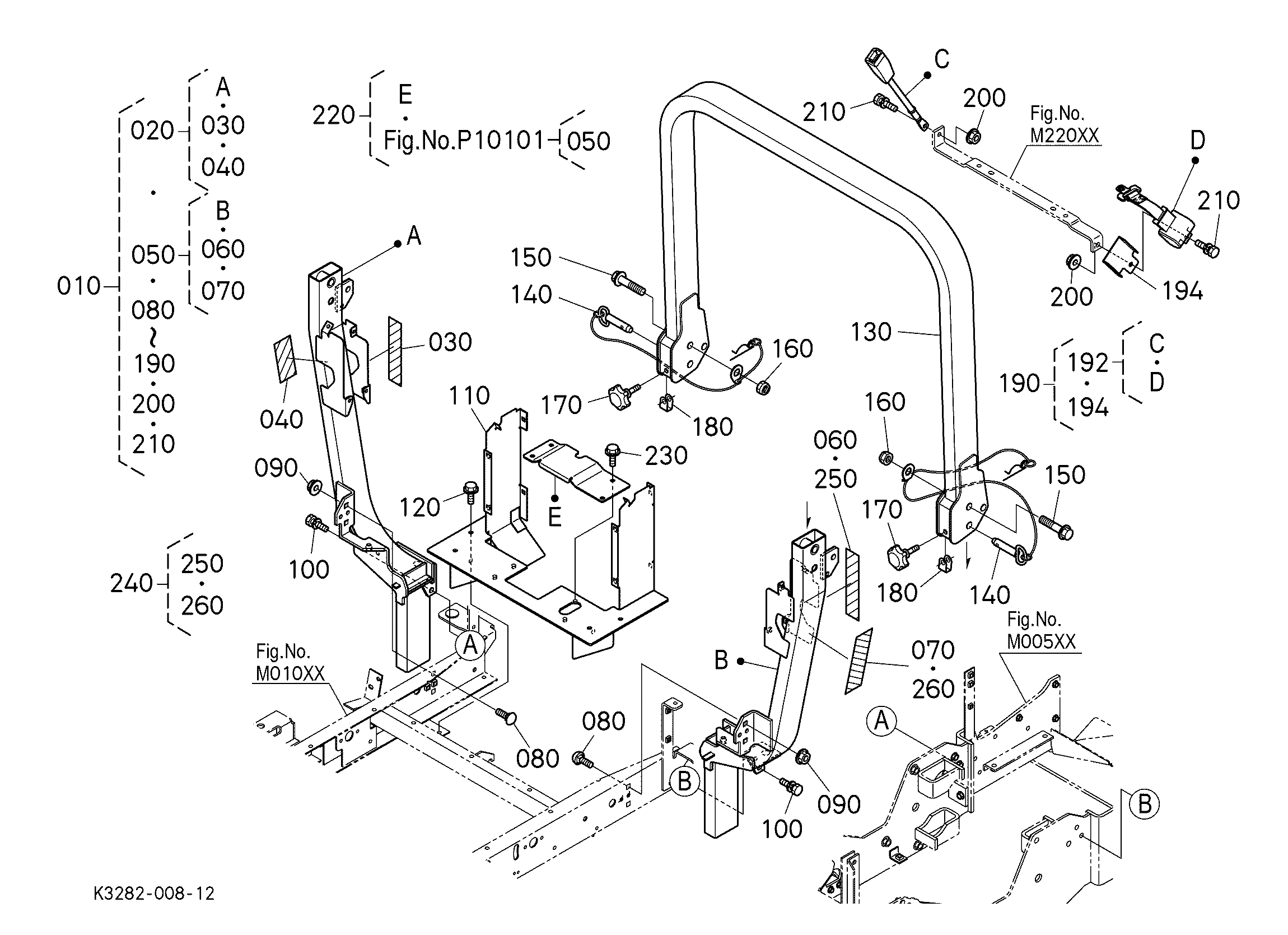

DIAG-M30100-194559 M30100 ROPS
View Diagram
