Scroll to zoom Click a part # to view details

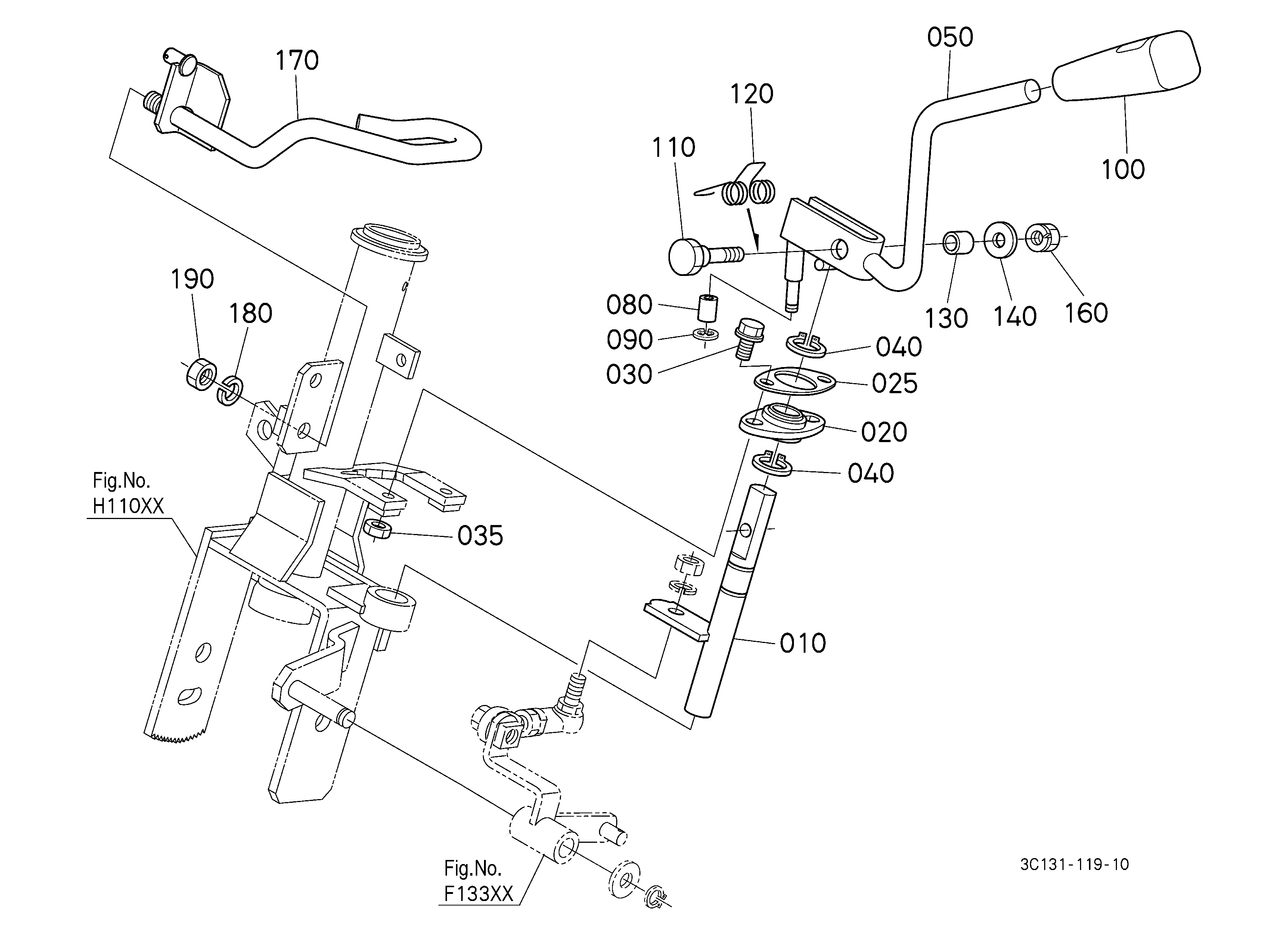

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY LEVER(RANGE 3C131-29962 | 1 | $89.08 | |||
| 020 | BUSHING 36330-26430 08511-02212 | 1 | $9.56 | |||
| 030 | LEVER, SUB UPPER 3C131-29982 | 1 | $91.20 | |||
| 035 | CUSHION (POSITIO 6A600-38250 6A900-38250 | 1 | $12.01 | |||
| 040 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.99 | |||
| 050 | GRIP 3C081-29970 | 1 | $22.43 | |||
| 060 | ASSY ROD 3C131-30090 | 1 | $8.07 | |||
| 065 | Replacement Nut 02112-60080 02112-50080 | 1 | $0.60 | |||
| 070 | SCREW, ROD-END L 3N640-24210 | 1 | $45.67 | |||
| 080 | END, ROD (CREEP 45404-95770 | 1 | $27.49 | |||
| 090 | SCREW, LH NUT-CR 31351-24260 | 1 | $1.91 | |||
| 100 | Creep Speed Nut 16429-92010 | 1 | $2.50 | |||
| 110 | Bolt Fastener 01125-50830 | 1 | $1.99 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-

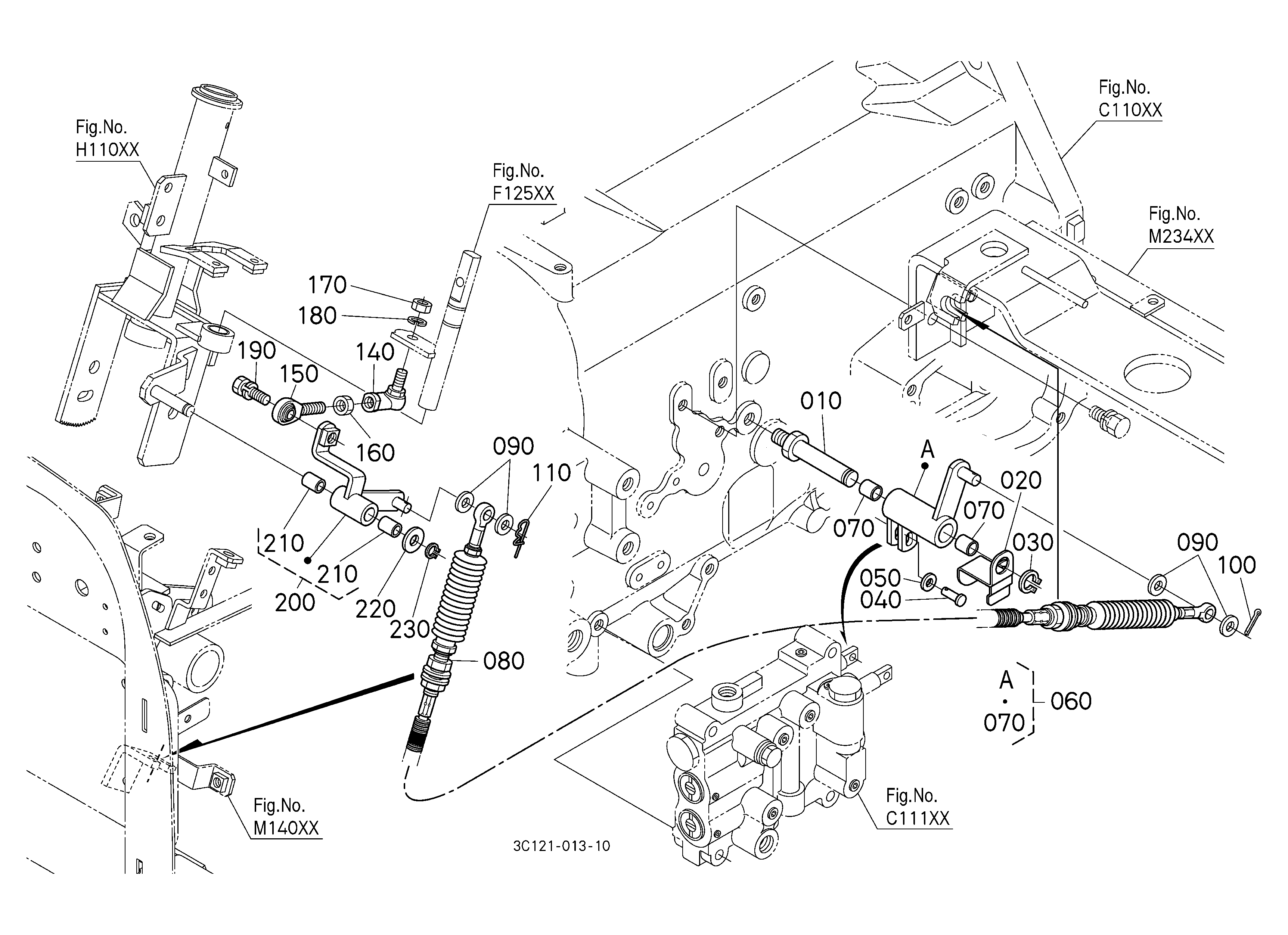

DIAG-F13300-96499 F13300 SHUTTLE CABLE
View Diagram -
DIAG-F15300-96499 F15300 FRONT WHEEL DRIVE LEVER
View Diagram -
DIAG-F12500-96499 F12500 SHUTTLE SHIFT LEVER
View Diagram
