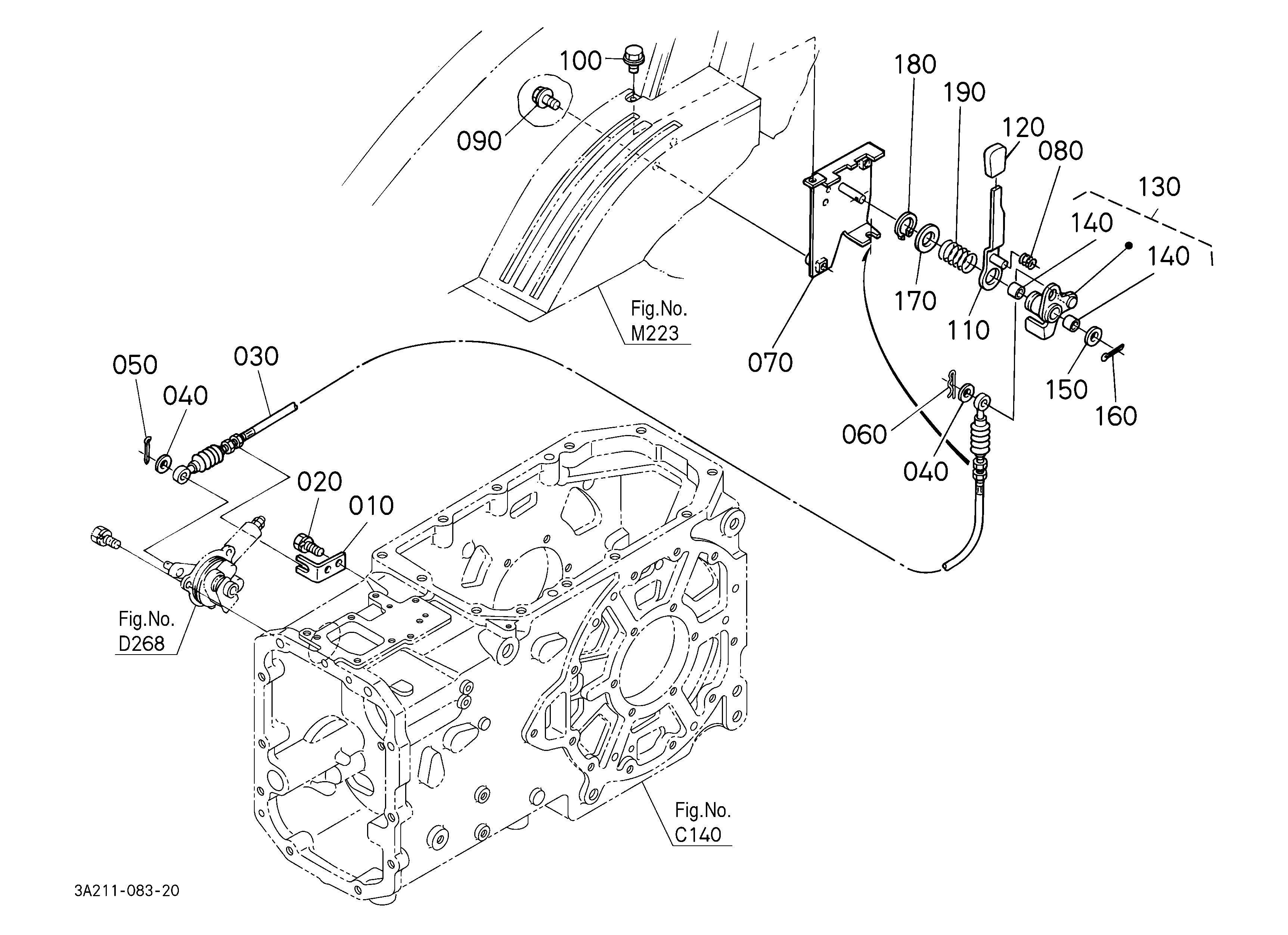

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ROD (CREEP SPEED 3A011-31450 | 1 | $7.66 | |||
| 020 | BALL, LINK 4-CRE 54721-31850 | 1 | $53.41 | |||
| 030 | SCREW, LH NUT-CR 31351-24260 | 1 | $1.91 | |||
| 040 | END, ROD (CREEP 45404-95770 | 1 | $27.49 | |||
| 050 | Replacement Nut 02112-60080 02112-50080 | 1 | $0.60 | |||
| 060 | Spring Washer (Lock Washer) 04512-60080 04512-70080 | 1 | $0.60 | |||
| 070 | Nut Fastener W2336-07200 02114-50080 | 1 | $0.60 | |||
| 080 | PIN 3A011-29790 | 1 | $46.47 | |||
| 090 | LEVER RANGE SHIF 3A212-29910 | 1 | $132.16 | |||
| 100 | BUSH 76535-34880 08511-02812 | 1 | $10.60 | |||
| 110 | ASSY SUPPORT(CRE 3A152-29700 | 1 | $273.97 | |||
| 120 | BUSH (CREEP SPEE 08511-01910 | 1 | $8.57 | |||
| 130 | BUSH (CREEP SPEE 31351-17320 08511-01412 | 1 | $5.05 | |||
| 140 | Plain Washer (Flat Washer) 04013-50180 | 1 | $0.60 | |||
| 150 | External Circlip Retaining Ring 75599-41525 04612-00190 | 1 | $0.80 | |||
| 160 | LEVER RANGE SHIF 3A212-29960 | 1 | $221.95 | |||
| 170 | Washer 04011-50140 | 1 | $0.60 | |||
| 180 | Plain Washer 04015-60100 04015-70100 | 1 | $1.05 | |||
| 190 | Nut (Fastener) 02117-50100 02118-50100 | 1 | $0.80 | |||
| 200 | GRIP, LEVER TA040-69820 | 1 | $24.90 | |||
| 210 | GUIDE, LEVER(CRE 3A011-29730 | 1 | $104.45 | |||
| 220 | CUSHION LEVER GU 3A152-29740 | 1 | $121.66 | |||
| 230 | SCREW W/ WASHER 03024-50620 03004-50620 | 1 | $0.36 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-F13501-85708 F13501 RANGE GEAR SHIFT LEVER [EXCEPT [CS]]
View Diagram -
DIAG-F14500-85708 F14500 PTO CLUTCH LEVER
View Diagram -
DIAG-F12500-85708 F12500 SHUTTLE SHIFT LEVER
View Diagram
