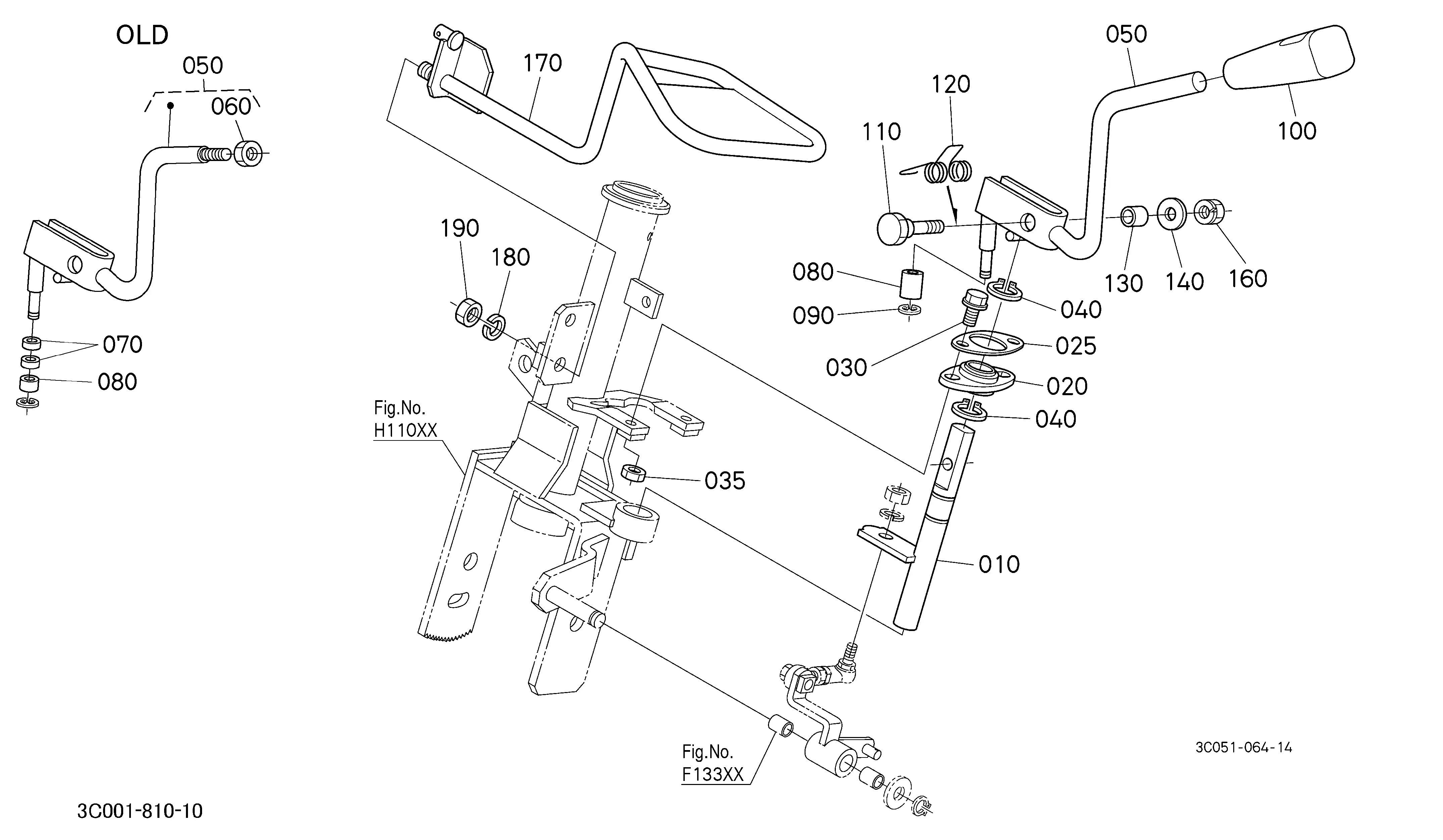

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PIN 3C291-33120 | 1 | $14.73 | |||
| 020 | PLATE (VALVE, SH 3C291-34580 | 1 | $8.93 | |||
| 030 | External Circlip (Snap Ring) 04612-50140 04612-00140 | 1 | $0.60 | |||
| 040 | PIN, JOINT 3A051-26820 | 1 | $25.09 | |||
| 050 | Plain Flat Washer 3J099-05763 04013-50060 | 1 | $0.60 | |||
| 060 | ASSY LEVER, SHUT 3C291-34600 | 1 | $57.70 | |||
| 070 | BUSH (CREEP SPEE 31351-17320 08511-01412 | 1 | $5.05 | |||
| 080 | CABLE, SHUTTLE 3C211-34596 3C211-34597 | 1 | $138.96 | |||
| 090 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.36 | |||
| 100 | PIN, SPLIT 05511-20215 05511-50215 | 1 | $0.14 | |||
| 110 | Snap Pin 52300-34120 | 1 | $3.94 | |||
| 120 | GUIDE CABLE 3C001-34570 | 1 | $107.13 | |||
| 130 | Flange Bolt 01774-51220 | 1 | $4.09 | |||
| 140 | END, ROD (CREEP 45404-95770 | 1 | $27.49 | |||
| 150 | BOLT, RH ROD END 31351-24310 | 1 | $69.71 | |||
| 160 | Replacement Nut 02112-60080 02112-50080 | 1 | $0.60 | |||
| 170 | Nut Fastener 15151-04430 02156-50080 | 1 | $0.60 | |||
| 180 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 190 | Bolt with Washer 01120-50825 01123-50825 | 1 | $1.21 | |||
| 200 | ASSY LEVER, SHUT 3C291-34800 | 1 | $36.16 | |||
| 210 | BUSH 08511-01020 | 1 | $5.05 | |||
| 220 | Plain Washer (Flat Washer) 04013-10100 04013-50100 | 1 | $0.60 | |||
| 230 | CIR-CLIP 04612-50100 04612-00100 | 1 | $0.60 | |||
| 240 | KIT LEVER (HYD.) 3C291-97030 | 1 | $127.05 | |||
| 260 | ASSY BOOT 3C081-97820 | 1 | $28.51 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-
DIAG-F12502-85773 F12502 SHUTTLE SHIFT LEVER
View Diagram -
DIAG-F13304-85773 F13304 SHUTTLE CABLE [NEW]
View Diagram -
DIAG-D41002-85773 D41002 MAIN GEAR SHIFT FORK
View Diagram
