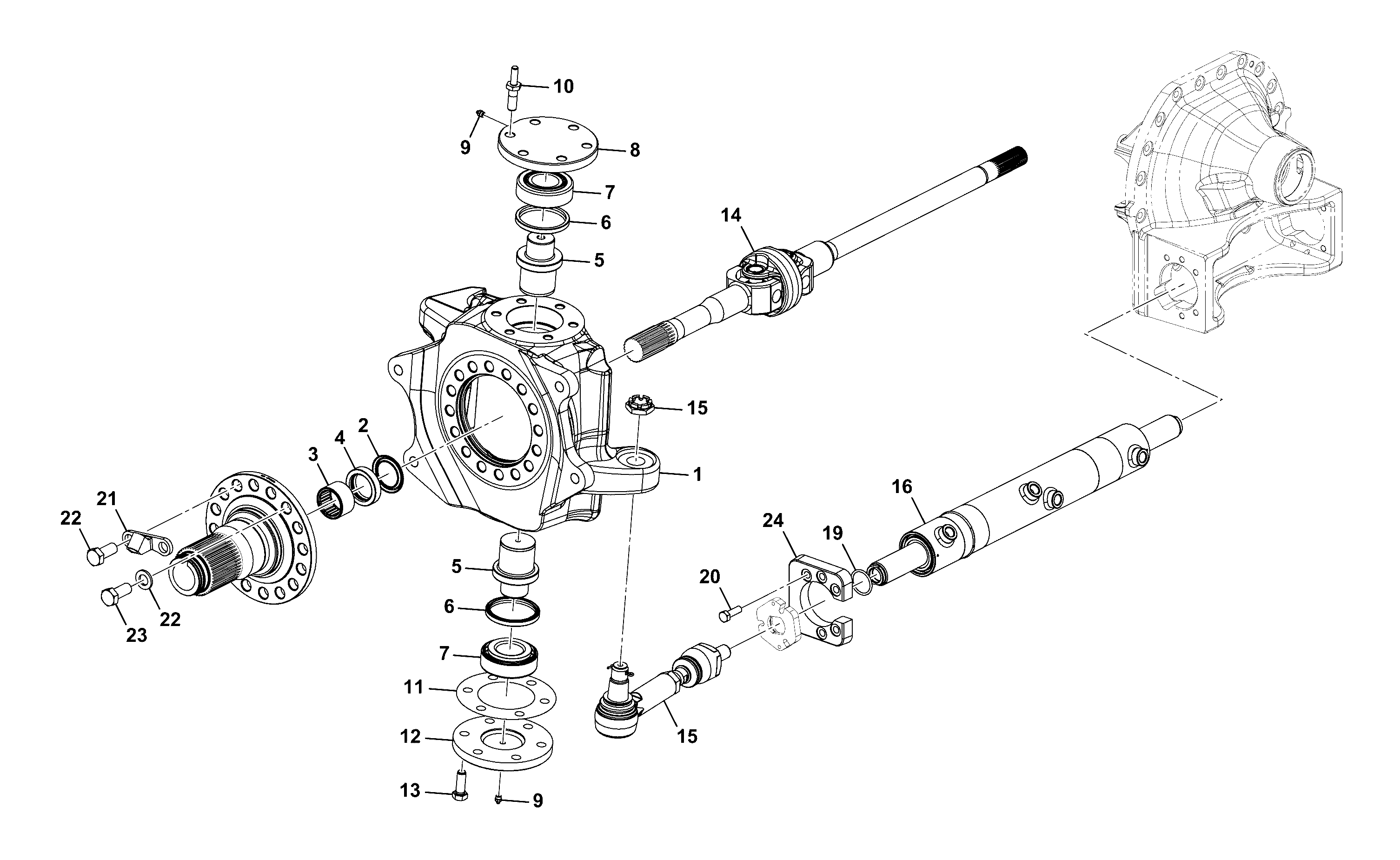

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | RH Swivel 400/13753 | 1 | $4,930.82 | |||
| 2 | Seal Protector 333/C9948 | 1 | $15.95 | |||
| 3 | OIL SEAL 10/301046 | 1 | $125.18 | |||
| 4 | Bearing needle 10/301061 | 1 | $260.70 | |||
| 5 | Knuckle Pin 336/F3841 | 1 | $603.16 | |||
| 6 | O Ring 333/C9949 | 1 | $19.03 | |||
| 7 | Scraper Ring 336/F3834 | 1 | $93.08 | |||
| 8 | Roller Bearing, Tapered 336/F3835 | 1 | $845.89 | |||
| 9 | Top Trunnion Cap 400/13754 | 1 | $613.00 | |||
| 10 | Nipple grease 10/301071 | 1 | $9.69 | |||
| 11 | Stud bolt 400/00464 | 1 | $278.35 | |||
| 12 | Steer Angle Sensor 400/21241 | 1 | $1,024.67 | |||
| 13 | Screw 333/C9951 | 1 | $20.60 | |||
| 15 | TIE ROD 50-50-301 400/A5407 | 1 | $834.88 | |||
| 16 | Bottom Trunnion Cap 400/13752 | 1 | $566.97 | |||
| 17 | Shim, 0.1 MM 400/05832 | 1 | $150.62 | |||
| 17 | Shim, 0.3 MM 400/05833 | 1 | $144.93 | |||
| 17 | Shim, 0.5 MM 400/05834 | 1 | $156.29 | |||
| 17 | Shim, 1.0 MM 400/05835 | 1 | $182.07 | |||
| 18 | Knuckle Pin 336/F3833 | 1 | $417.40 | |||
| 19 | Joint Shaft, RH 336/F3843 | 1 | $6,287.61 | |||
| 23 | BOLT 10/301074 | 1 | $5.16 | |||
| 24 | Bracket sensor sup 10/301049 | 1 | $465.28 | |||
| 25 | Washer 10/301084 | 1 | $7.34 | |||
| 26 | Screw M20x1.5x45 10/301083 | 1 | $27.53 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-
DIAG-F130-1-1-393736 F130-1-1 HUB AND DRIVESHAFT ASSEMBLY PLANETARY GEAR FRONT LEFT
View Diagram -
DIAG-F135-15-1-393736 F135-15-1 DRIVESHAFT ASSEMBLY INSTALLATION
View Diagram -
DIAG-F110-5-1-393736 F110-5-1 AXLES FRONT HOUSING
View Diagram
