Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| AXLE - 213 PAD STD 332/F0578 | 1 | $29,217.55 | ||||
| HP Gear Oil LS Plus 20L 4000/3905 | 1 | $222.63 | ||||
| 1 | Axle Case 334/E3894 | 1 | $6,403.25 | |||
| 3 | Bolt 333/D1549 | 1 | $49.78 | |||
| 4 | Grub Scew 333/D1551 | 1 | $60.20 | |||
| 5 | Nut 333/D1552 | 1 | $4.87 | |||
| 6 | Bolt 333/D1553 | 1 | $26.19 | |||
| 7 | Grease Fitting 333/D1554 | 1 | $8.20 | |||
| 8 | Pin Pivot 333/D1555 | 1 | $550.99 | |||
| 10 | Shim 333/D1556 | 1 | $37.82 | |||
| 10 | Shim 333/D1558 | 1 | $27.55 | |||
| 10 | Shim 333/D1559 | 1 | $34.80 | |||
| 11 | Seal Dust 333/D1560 | 1 | $75.87 | |||
| 12 | Bush 333/D1561 | 1 | $709.26 | |||
| 13 | Pin Pivot 336/F0841 333/D1562 | 1 | $1,245.64 | |||
| 14 | Bearing 333/D1563 | 1 | $759.22 | |||
| 15 | Circlip 333/D1564 | 1 | $9.75 | |||
| 16 | Bush Reduction 333/D1565 | 1 | $975.51 | |||
| 17 | Circlip | 1 | Price on request | |||
| 18 | Bearing 332/D5017 | 1 | $423.02 | |||
| 19 | Seal 333/D1566 | 1 | $128.10 | |||
| 20 | O Ring 333/D1567 | 1 | $12.37 | |||
| 21 | Double Universal Joint 336/F0842 | 1 | $2,990.18 | |||
| 22 | SEAL - COMBI 333/D1569 904/M7099 | 1 | $114.89 | |||
| 23 | Bush Thrust | 1 | Price on request | |||
| 24 | Bolt 333/D1572 | 1 | $16.90 | |||
| 25 | Nut UOI 5off 333/D1573 | 1 | $4.38 | |||
| 26 | Joint 333/D1593 | 1 | $3,252.10 | |||
| 27 | Joint Knuckle 333/D1594 | 1 | $3,833.14 | |||
| 28 | Seal 334/F1704 | 1 | $439.79 | |||
| 29 | Bearing Taper Roll 333/D1575 | 1 | $729.35 | |||
| 30 | Hub Wheel 333/D1576 | 1 | $3,561.67 | |||
| 31 | Stud wheel | 1 | Price on request | |||
| 32 | Nut | 1 | Price on request | |||
| 33 | O Ring 333/D1578 | 1 | $57.76 | |||
| 35 | Stud 333/D1580 | 1 | $82.16 | |||
| 36 | Nut 333/D1581 | 1 | $29.69 | |||
| 37 | Plate Locking 333/D1782 | 1 | $538.58 | |||
| 38 | Gear 333/D1583 | 1 | $2,602.29 | |||
| 39 | Gear Ring Gear 333/D1584 | 1 | $1,530.69 | |||
| 40 | SEAL RING 333/D1585 7232/30192 | 1 | $13.45 | |||
| 41 | Gear 333/D1588 | 1 | $1,035.46 | |||
| 42 | Bearing 333/D1590 | 1 | $479.50 | |||
| 43 | Carrier Planet Gea 333/D1591 | 1 | $7,754.58 | |||
| 44 | Carrier 333/D1592 | 1 | $3,238.20 | |||
| 46 | Plug 10/301228 | 1 | $32.19 | |||
| 47 | Bolt | 1 | Price on request | |||
| 53 | Bolt 333/D1595 | 1 | $17.43 | |||
| 54 | Stud 333/D1596 | 1 | $170.51 | |||
| 55 | Washer JCB UOI 25off 333/D1597 | 1 | $0.92 | |||
| 56 | Nut 333/D1598 | 1 | $7.69 | |||
| 59 | Bolt steering adju 333/D1792 333/D1599 | 1 | $33.11 | |||
| 60 | Gear Ring Support 333/D1600 | 1 | $4,006.22 | |||
| 62 | Plug | 1 | Price on request | |||
| 63 | Spacer Spacer 333/D1788 | 1 | $27.69 | |||
Showing 1 to 55 of 55 parts
Related Assemblies
-

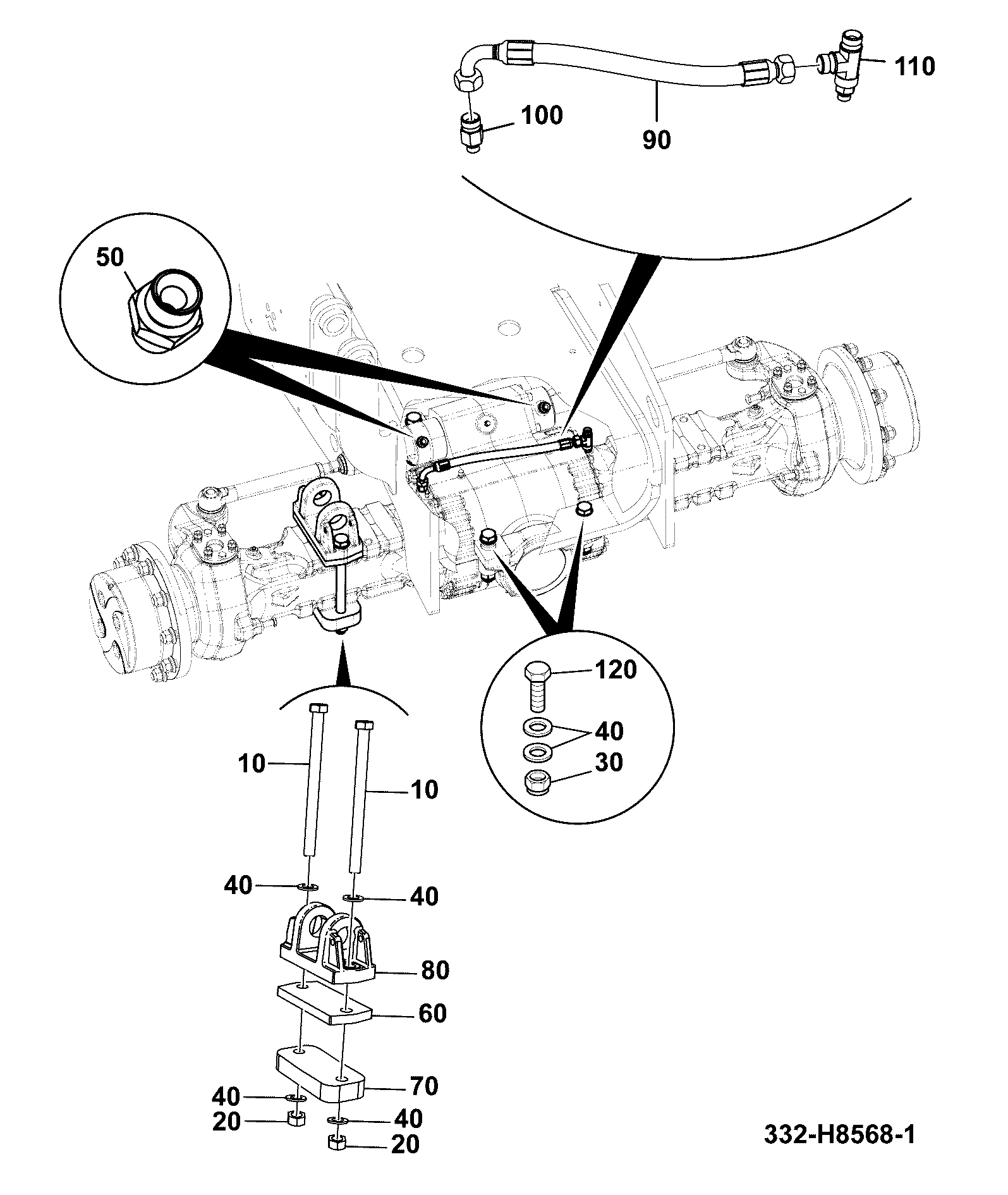

DIAG-F100-40-1-402725 F100-40-1 FRONT AXLE INSTALLATION ASSEMBLIES MOUNTING PAD MOUNT FRONT AXLE, 332/H8568 DANA
View Diagram -
DIAG-F130-5-1-402725 F130-5-1 HUB AND DRIVESHAFT ASSEMBLY AXLES DANA
View Diagram -
DIAG-F100-35-1-402725 F100-35-1 FRONT AXLE INSTALLATION ASSEMBLIES MOUNTING PAD MOUNT FRONT AXLE
View Diagram
