Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Casing 333/C6054 | 1 | $7,909.83 | |||
| 2 | Washer 400/02717 | 1 | $387.44 | |||
| 2 | Washer 0.5 mm 400/05579 | 1 | $291.17 | |||
| 2 | Washer 1.1 mm 400/05581 | 1 | $291.17 | |||
| 2 | Washer 1.2 mm 400/05582 | 1 | $291.17 | |||
| 2 | Washer 1.3 mm 400/05583 | 1 | $291.17 | |||
| 2 | Washer 1.4 mm 400/05584 | 1 | $291.17 | |||
| 2 | Washer, 1 mm 400/05580 | 1 | $395.97 | |||
| 3 | Shaft 400/05585 | 1 | $861.09 | |||
| 4 | Disc 334/C0577 | 1 | $2.89 | |||
| 4 | Disc 334/C0578 | 1 | $5.52 | |||
| 5 | Screw 333/D3458 | 1 | $20.04 | |||
| 6 | O Ring . 333/C6070 | 1 | $49.98 | |||
| 7 | Bolt . 332/F6569 | 1 | $47.34 | |||
| 8 | O Ring . 332/F6521 | 1 | $32.49 | |||
| 9 | Plug . 333/D3481 | 1 | $29.57 | |||
| 9A | O RING 10/904305 | 1 | $5.61 | |||
| 10 | Plug 334/C0580 | 1 | $2.44 | |||
Showing 1 to 18 of 18 parts

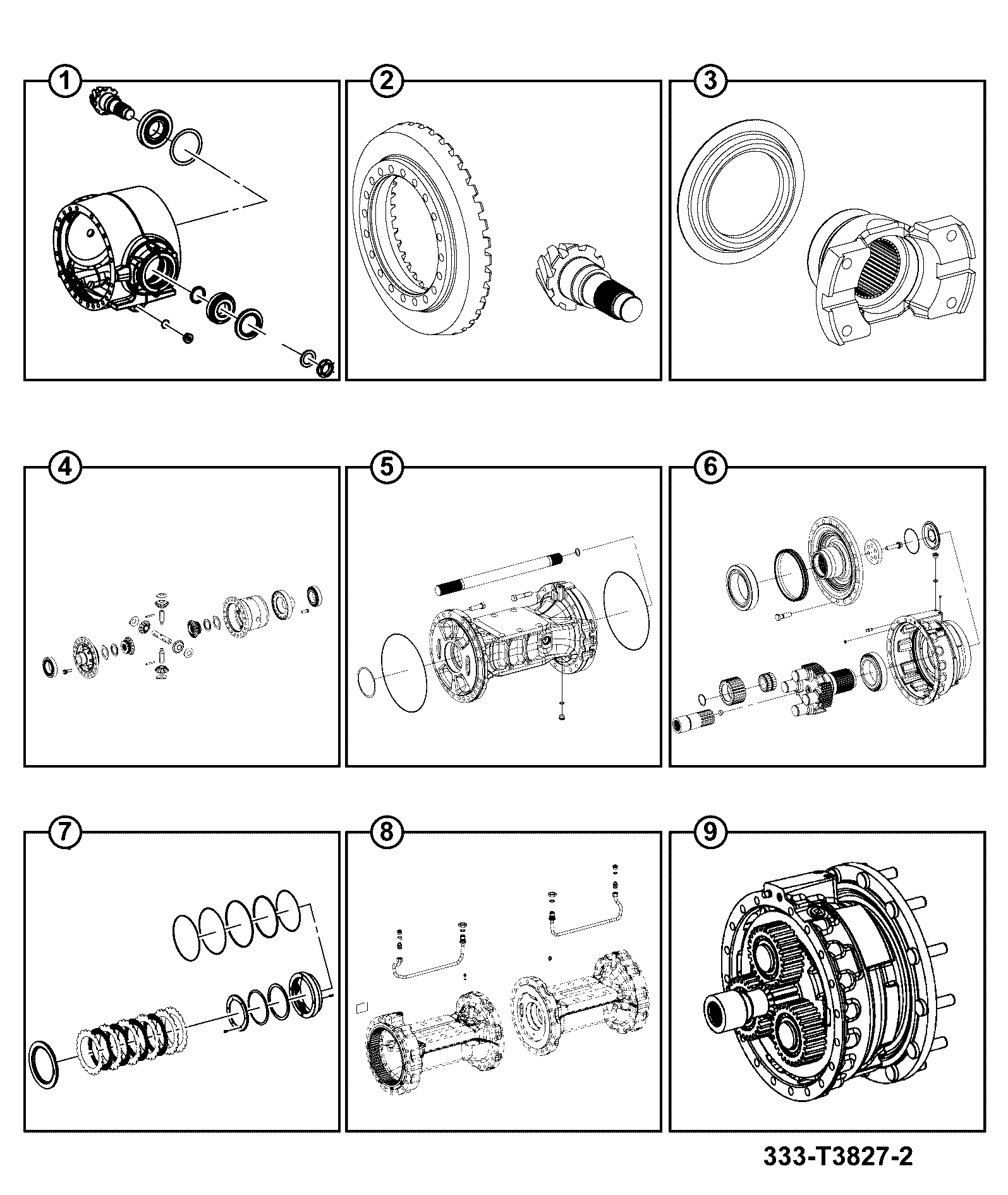

Related Assemblies
-
DIAG-F120-5-1-404814 F120-5-1 AXLE ARM AND HUB ASSEMBLY BRAKE
View Diagram -
DIAG-F140-2-1-404814 F140-2-1 HUB ASSEMBLY COMPONENTS
View Diagram -
DIAG-F110-35-1-404814 F110-35-1 AXLES FRONT LSD 400/K0881, ZF REF. 4474-052-342
View Diagram
