| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

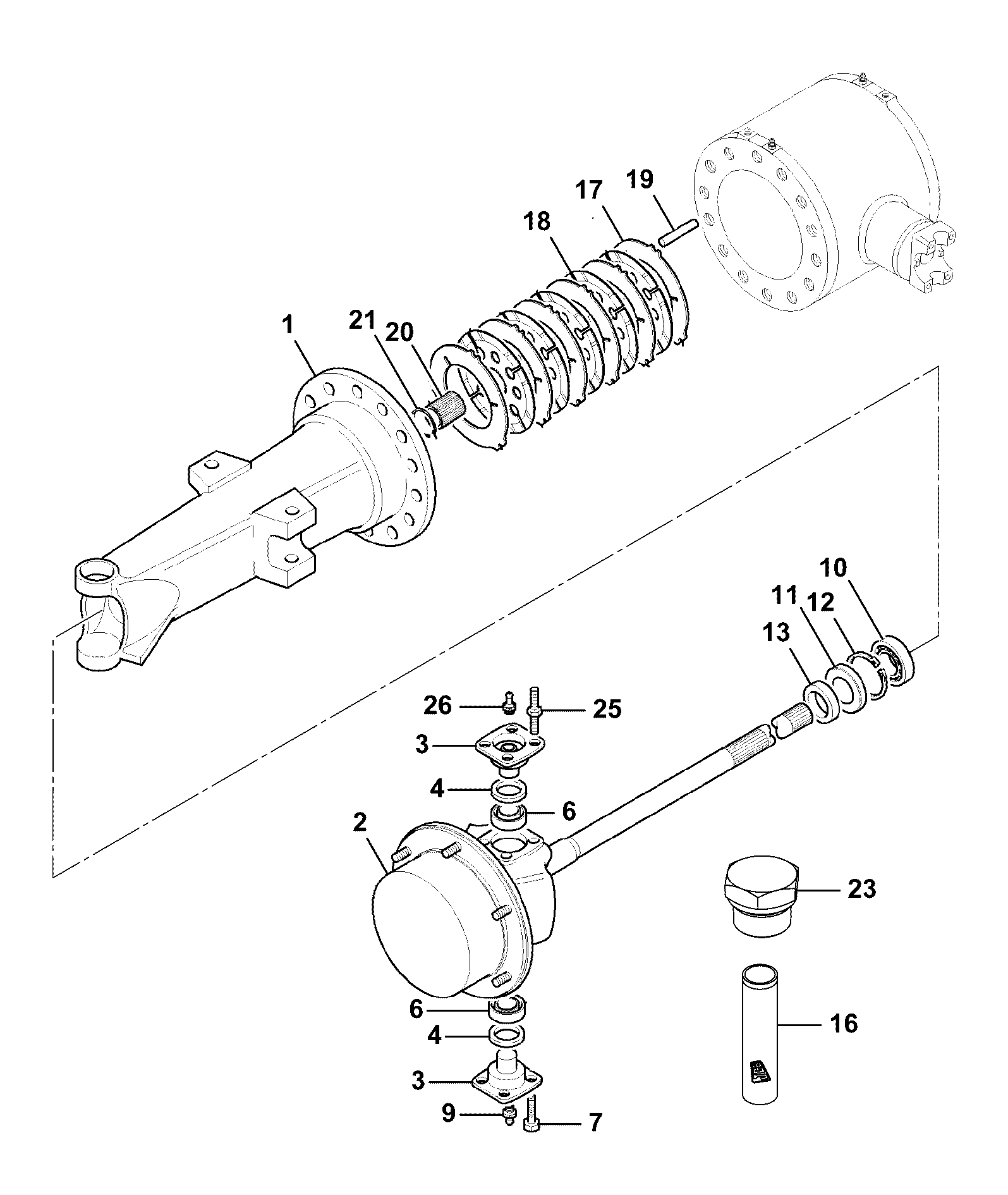

| GA AXLE ARM & WHEEL HUB 458/M0418 | 1 | $7,983.16 | ||||
| 1 | P.T.R. MM ARM BLACK 458/M0346 | 1 | $2,068.84 | |||
| 2 | G.A.WHEEL HUB 453/23110 | 1 | $4,333.30 | |||
| 3 | TRUNNION CAST IHK BLACK 458/20061 | 1 | $113.25 | |||
| 4 | SEAL-TRUNNION 904/06700 | 1 | $18.36 | |||
| 6 | BEARING - TAPER ROLLER 907/M5375 | 1 | $254.73 | |||
| 7 | CAPSCREW M12 x 35 LG. 1392/3509 | 1 | $10.15 | |||
| 9 | NIPPLE GREASE 816/60056 816/60056A | 1 | $2.11 | |||
| 10 | CYLINDRICAL ROLLER BEARIN 907/08400 | 1 | $111.82 | |||
| 11 | DRIVESHAFT SEAL 904/50040 | 1 | $61.12 | |||
| 12 | INT CIRCLIP 80mm [1300 08 2203/1082 | 1 | $2.14 | |||
| 13 | MASKING RING 448/04802 | 1 | $1.49 | |||
| 17 | BRAKE FRICTION PLATE IH 453/15301 458/20353 | 1 | $73.14 | |||
| 18 | BRAKE COUNTERPLATE -IH 12pk 458/20285 | 1 | $91.59 | |||
| 19 | REACTION PIN 450/10213 | 1 | $21.95 | |||
| 20 | CARRIER - BRAKE PLATE EXTENDED 331/11963 | 1 | $484.23 | |||
| 21 | EXT CIRCLIP 60mm [1400 06. 2203/0071 | 1 | $26.72 | |||
| 23 | 3/4" BSP TAPER PLUG 816/M3849 | 1 | $6.69 | |||
| 25 | M12 DOUBLE ENDED STUD 826/01363 | 1 | $7.62 | |||
| 26 | NIPPLE - GREASE LONG 454/17401 | 1 | $7.72 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-
DIAG-F120-5-1-401570 F120-5-1 AXLE ARM & HUB ASSY HUB ASSEMBLY
View Diagram -

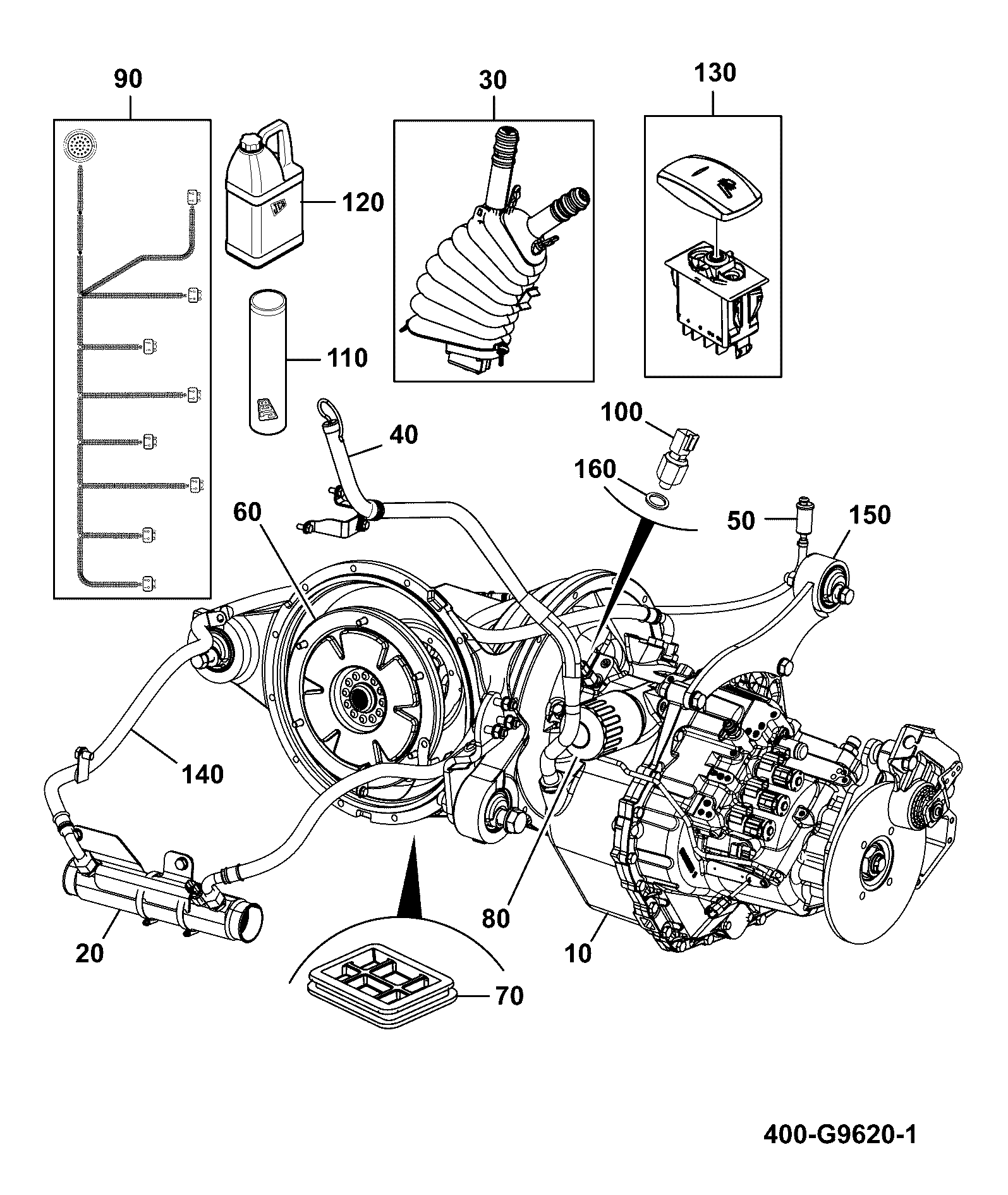

DIAG-F0-780-1-401570 F0-780-1 TRANSMISSION INSTALLATION ASSEMBLIES PS750 4-SPEED ELECTRIC CONTROL , 2/4WD, 33 KPH SAHR
View Diagram -
DIAG-F140-10-1-401570 F140-10-1 HUB ASSEMBLY ARM & WHEEL HUB , AXLE SD70
View Diagram
