Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BOLT - M16 X 80 FLANGED 826/M0006 | 1 | $5.82 | ||||
| CHOBERT RIVET 826/01231 | 1 | $4.26 | ||||
| GA SD70 TRUNNION MT AXLE 453/M5643 | 1 | $26,458.39 | ||||
| LOCTITE 495 BO20G EN/DE 4103/0900 | 1 | $41.23 | ||||
| MASKING CYLINDER 458/M7000 | 1 | $12.40 | ||||
| PLUG-TRANSIT 458/20340 | 1 | $4.11 | ||||
| SERIAL PLATE-JCB 817/02980 | 1 | $21.43 | ||||
| TRANSIT PLUG REF:10549 835/00181 | 1 | $21.74 | ||||
| 1 | GA AXLE ARM & WHEEL HUB 458/M0418 | 1 | $7,983.16 | |||
| 2 | GA AXLE ARM & WHEEL HUB 458/M0419 | 1 | $7,959.81 | |||
| 7 | AXLE BREATHER (PLASTIC) 450/13001 453/00303 | 1 | $83.88 | |||
| 8 | BLEED SCREW(KANBAN) 816/60040 | 1 | $0.00 | |||
| 9 | BOLT - M16 X 70 FLANGED 826/01083 | 1 | $0.00 | |||
| 10 | MULTIGASKET 4102/1200 4102/1212 | 1 | $30.21 | |||
| 11 | WA STEER SENSOR AXLE MOUN 333/D9116 | 1 | $85.40 | |||
| 16 | PTR NEW SEALS 458/M3585 | 1 | $688.78 | |||
| 17 | PIVOT PIN W.A. 911/25700 911/22800 | 1 | $24.06 | |||
| 18 | BOLT 1321/0405Z | 1 | $2.15 | |||
| 24 | G.A. STEER LINK 453/23400 | 1 | $750.70 | |||
| 25 | BOLT M12 X 55L VERBUS RIP 826/01435 | 1 | $24.54 | |||
| 26 | SENSOR DISC PTR 448/16403 | 1 | $39.07 | |||
| 27 | CAP NIPPLE 835/00017 835/00017A | 1 | $4.12 | |||
| 98 | .PLUG - PROTECTION 835/00147 | 1 | $0.44 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-F100-175-1-401793 F100-175-1 FRONT AXLE INSTALLATION ASSEMBLIES 453/M0805
View Diagram -

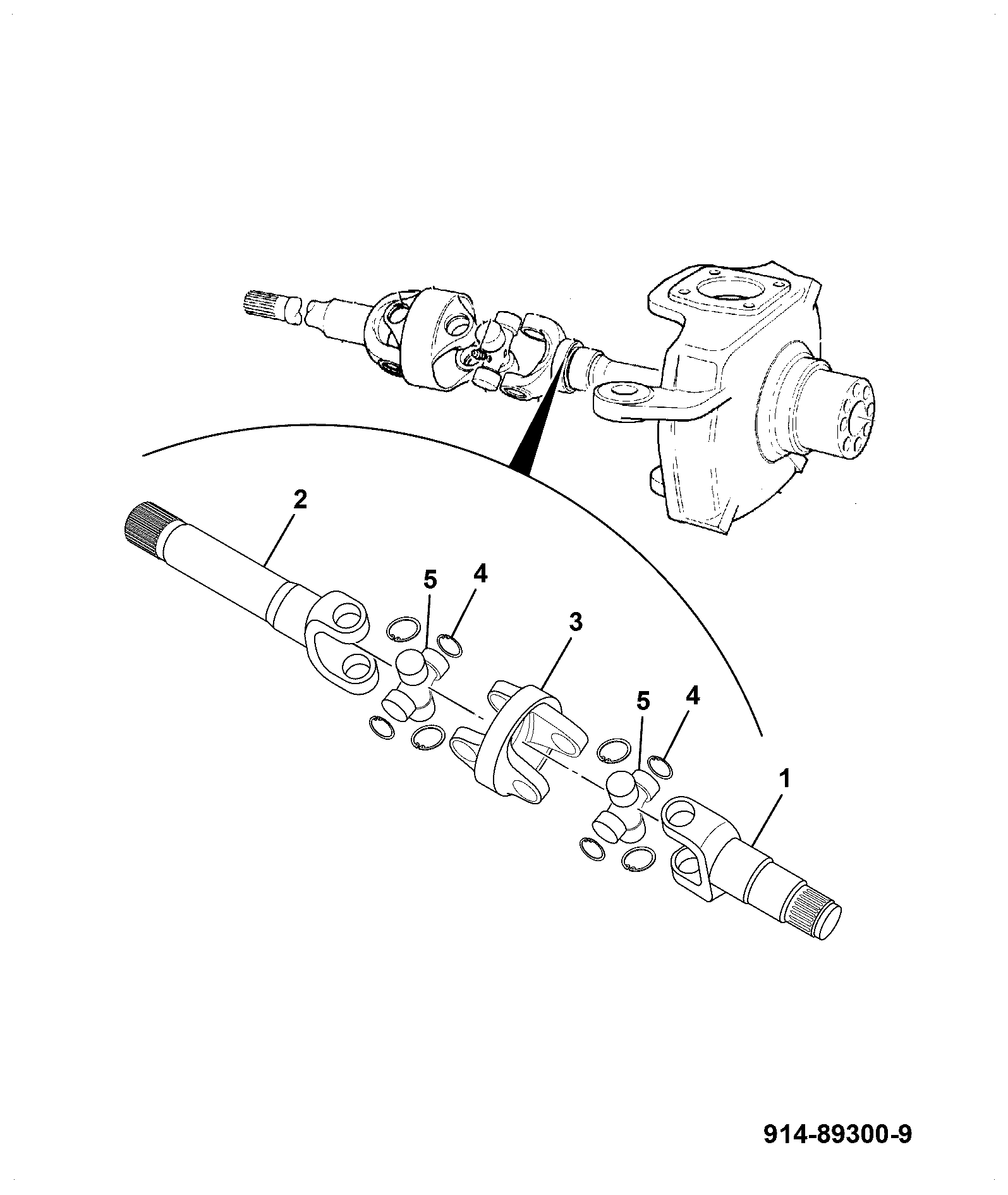

DIAG-F135-1-1-401793 F135-1-1 DRIVESHAFT ASSEMBLY 914/89300
View Diagram -
DIAG-F150-1-1-401793 F150-1-1 DRIVE HEAD ASSEMBLY 458/11210
View Diagram
