Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| GA DRIVEHEAD NORM M30 RH 458/M1193 | 1 | $3,919.67 | ||||
| 1 | DRIVEHEAD CASING ROUND STD. BLACK 450/17102 453/30601 | 1 | $2,736.24 | |||
| 2 | BEARING -TAPER ROLLER 907/09000 | 1 | $292.88 | |||
| 3 | SHIM KIT 921/01900 | 1 | $32.86 | |||
| 4 | SPACER KIT 921/53400 | 1 | $745.77 | |||
| 5 | BEARING - TAPER ROLLER 907/M5375 | 1 | $254.73 | |||
| 6 | SEAL - TRIPLE LIP 904/20172 | 1 | $37.32 | |||
| 7 | COUPLING YOKE - 1480 438/00006 458/20813 | 1 | $302.90 | |||
| 8 | STAKE NUT M30 X 2 826/01744 826/M7635 | 1 | $12.55 | |||
| 10 | BOLT - VERBUS RIPP - M12 x 30 826/01080 | 1 | $3.41 | |||
| 11 | CROWNWHEEL & PINION ASSY 16/37 458/M7142 | 1 | $926.01 | |||
| 12 | BEARING -TAPER ROLLER 907/50100 | 1 | $229.63 | |||
| 13 | DIFF SIDE NUT 450/10403 | 1 | $141.40 | |||
| 14 | TENSION PIN 826/00818 | 1 | $0.51 | |||
| 15 | G.A. DIFFERENTIAL LSD 453/31090 | 1 | $4,409.29 | |||
| 16 | BRAKE PISTON HOUSING (PRB 458/M5579 | 1 | $560.92 | |||
| 17 | M10 X 25 SOCKET CAP SCREW 1391/3407 | 1 | $4.09 | |||
| 18 | MULTIGASKET 4102/1200 4102/1212 | 1 | $30.15 | |||
| 21 | DOWEL 16X55 826/00919 | 1 | $50.94 | |||
| 22 | 3/4" BSP TAPER PLUG - MAG 450/10216 816/M3848 | 1 | $11.39 | |||
| 24 | BRAKE PISTON PRB 458/M2801 | 1 | $215.10 | |||
| 25 | BRAKE SEAL 813/50012 | 1 | $24.79 | |||
| 26 | BRAKE SEAL 813/50026 | 1 | $20.45 | |||
| 27 | 3/4" BSP TAPER PLUG 816/M3849 | 1 | $6.69 | |||
| 33 | COMPRESSION SPRING 814/00367 | 1 | $1.39 | |||
| 34 | PIN - HEADED BACKOFF 450/24303 | 1 | $47.90 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-

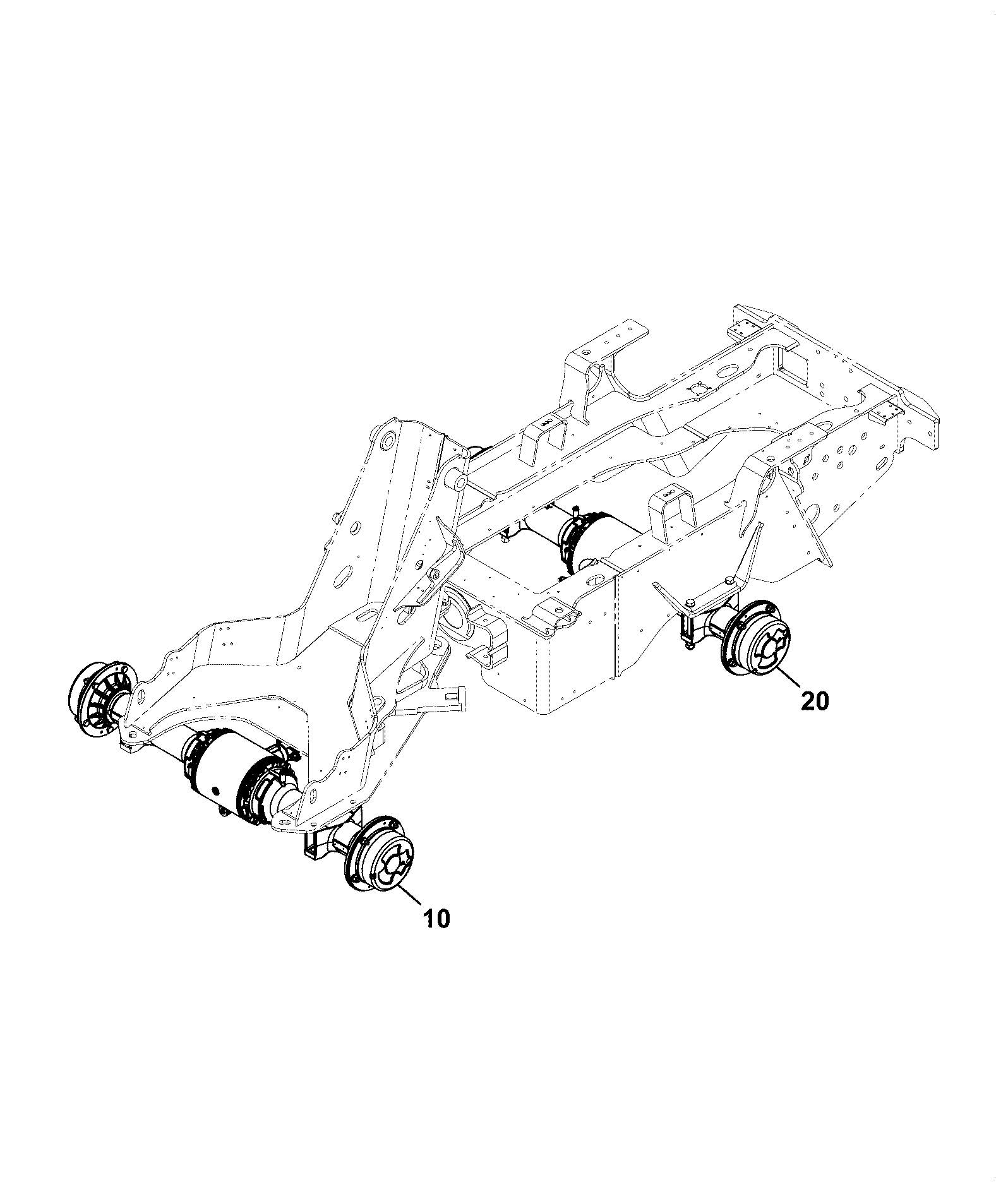

DIAG-F100-5-1-403027 F100-5-1 FRONT AXLE INSTALLATION ASSEMBLIES ASSEMBLY PD70 AXLE
View Diagram -
DIAG-F120-10-1-403027 F120-10-1 AXLE ARM AND HUB ASSEMBLY ASSEMBLY AXLE ARM & WHEEL HUB PAD MOUNT
View Diagram -
DIAG-F0-35-1-403027 F0-35-1 TRANSMISSION INSTALLATION ASSEMBLIES ABI AXLE PAIR PD70
View Diagram
