Scroll to zoom Click a part # to view details

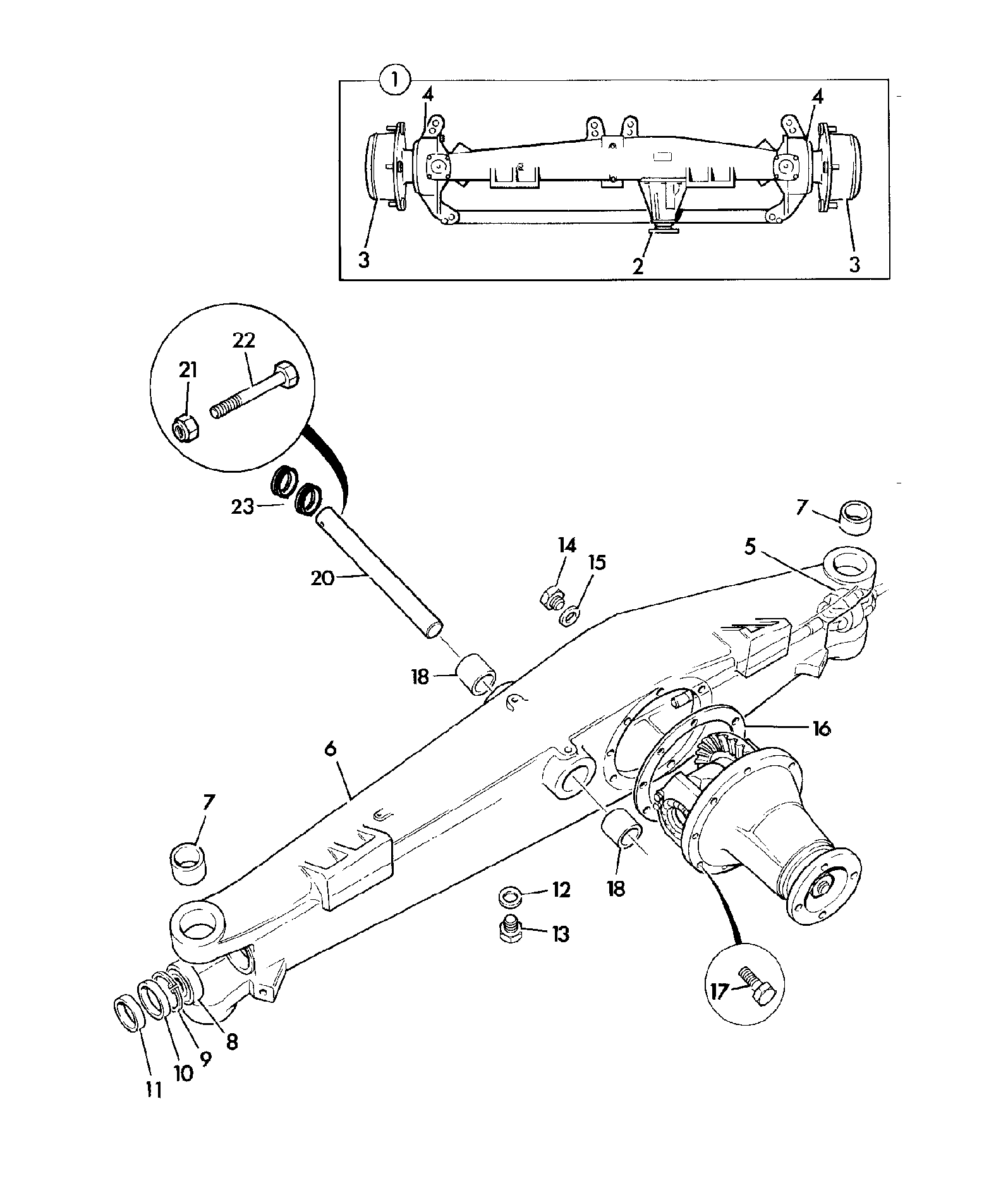

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| WASHER 1" SMALL PLAIN 1410/0010Z | 1 | $4.80 | ||||
| 1"UNF X 10.5" BOLT 826/01665 | 1 | $54.30 | ||||
| BOLT M12x100 1315/3520Z | 1 | $10.52 | ||||
| BOLT M12X150 1315/3525Z | 1 | $15.15 | ||||
| NUT 1"UNF 826/01714 | 1 | $10.72 | ||||
| NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | ||||
| O RING 2400/0223 | 1 | $12.38 | ||||
| P/PIN 50.80/50.70 * 187 403/H0073 403/G1193 | 1 | $82.25 | ||||
| P/PIN 50.80/50.70 * 270 403/H0077 1021/2027 403/G1089 | 1 | $118.02 | ||||
| P/PIN 69.96/69.935x498 811/50161 | 1 | $805.87 | ||||
| SEAL 813/00356 | 1 | $51.19 | ||||
| SWAY PIVOT BRACKET M/CG. 332/D3522 334/F5464 | 1 | $181.04 | ||||
| WASHER -HARDENED 823/10631 | 1 | $6.02 | ||||
Showing 1 to 13 of 13 parts
Related Assemblies
-

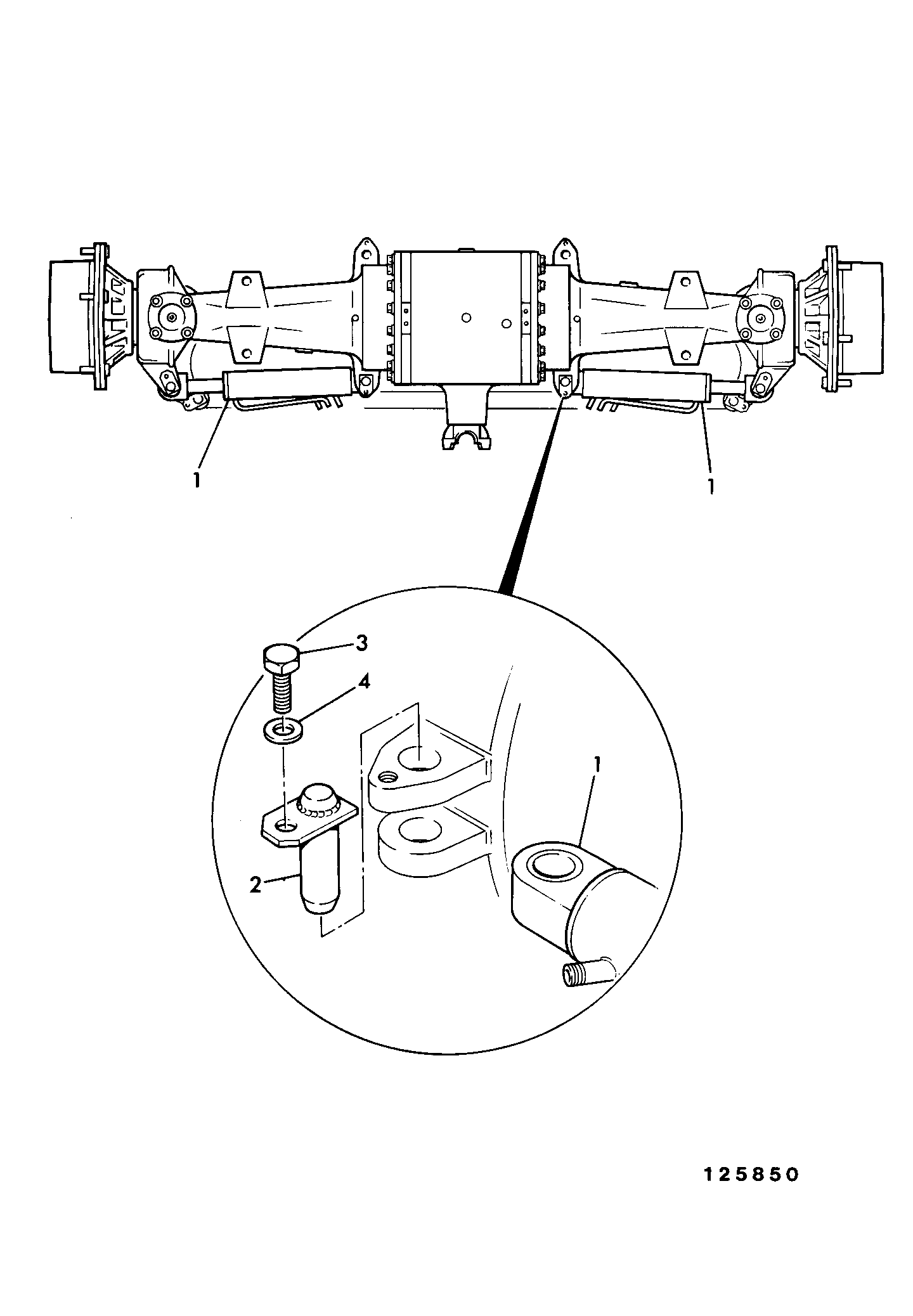

DIAG-F1-7-1-400211 F1-7-1 RAM,STEERING FRONT AXLE INSTALLATION
View Diagram -
DIAG-F2-1-1-400211 F2-1-1 AXLE ASSEMBLY DRIVE STEERING PIVOT MOUNTED (448/56060)
View Diagram -

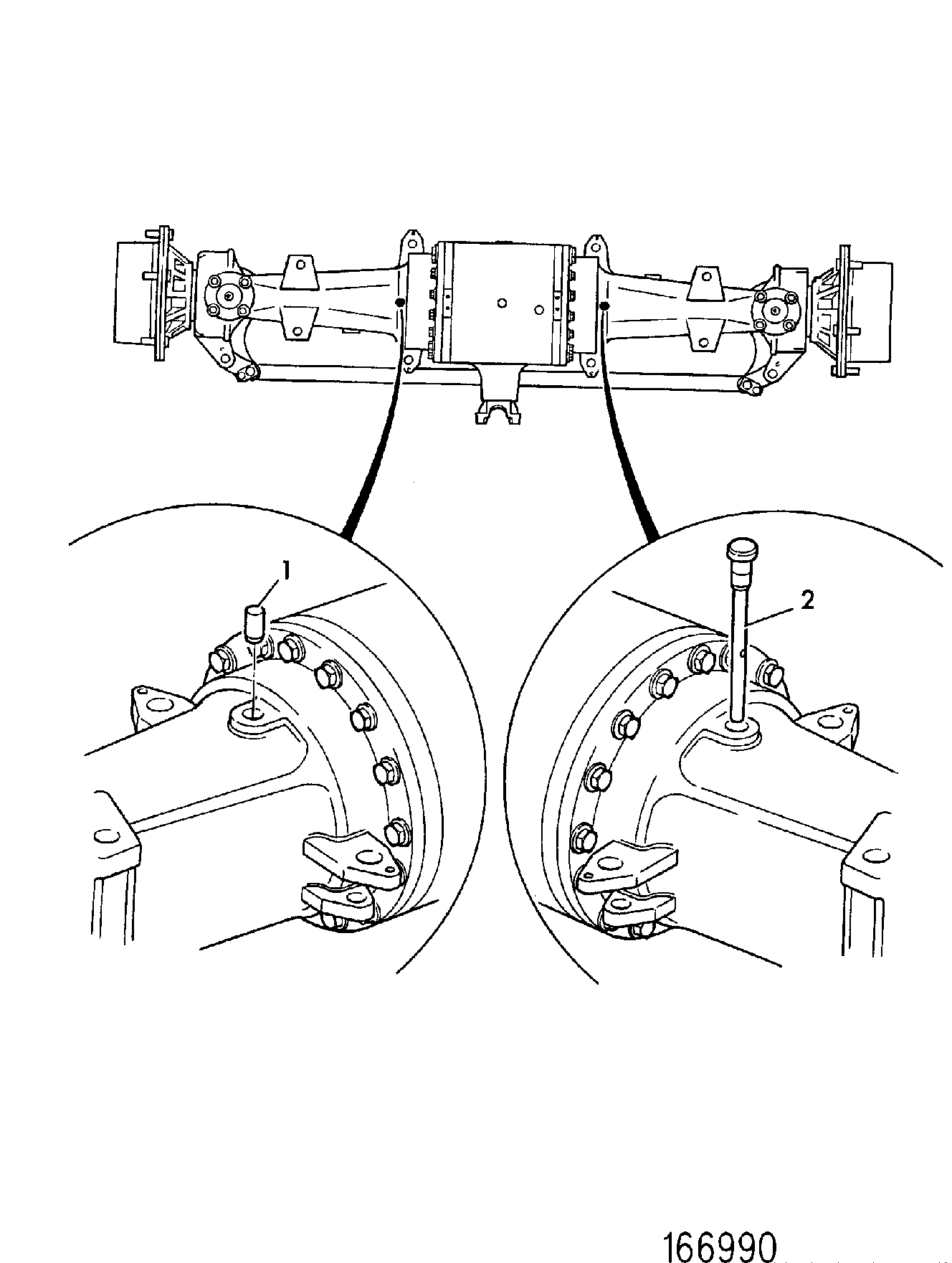

DIAG-F1-6-1-400211 F1-6-1 AXLE BREATHER
View Diagram
