Scroll to zoom Click a part # to view details

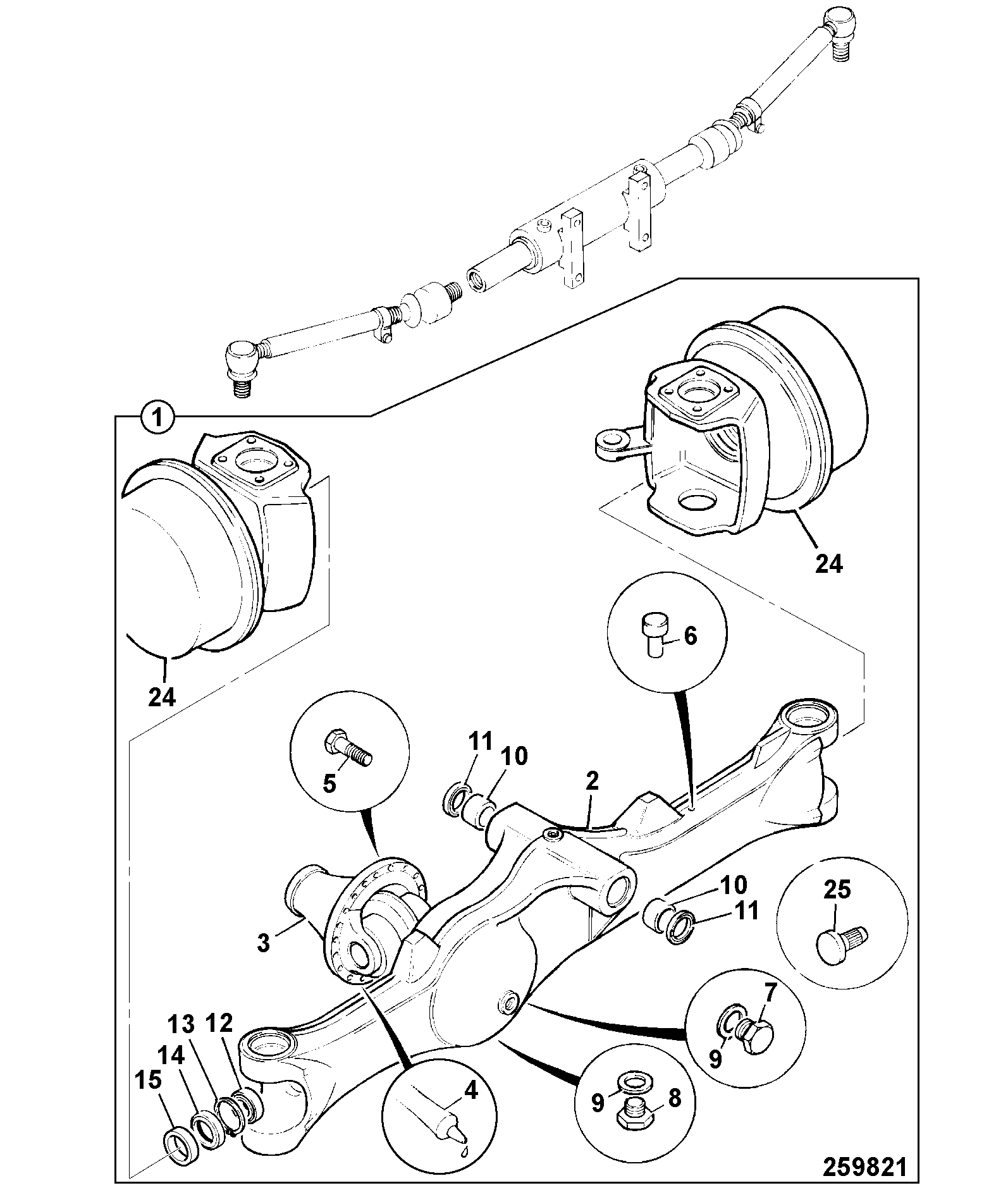

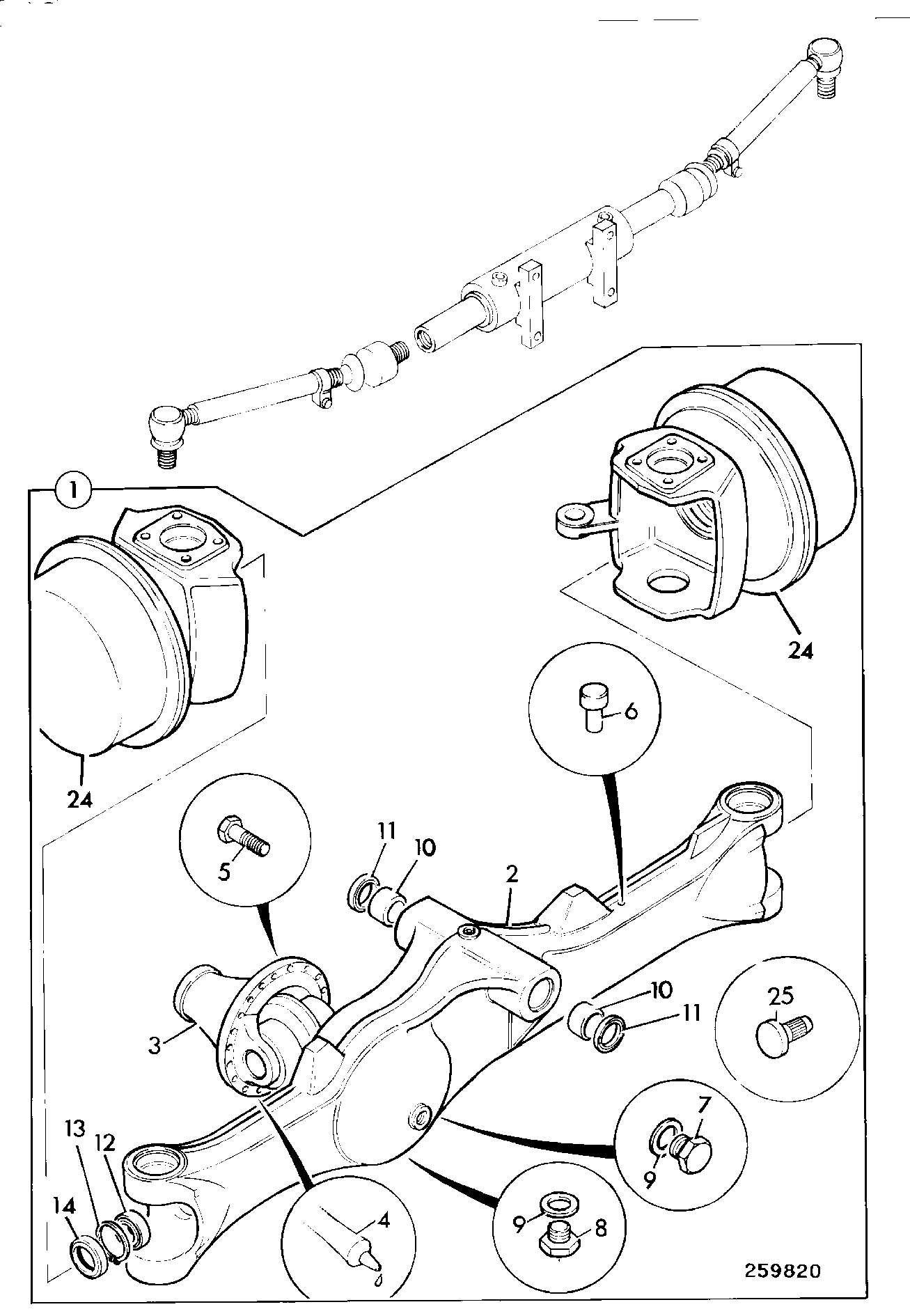

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | GA DRIVEHEAD 448/56250 458/M1862 | 1 | $10,462.03 | |||
| 2 | DRIVEHEAD CASING STD. PLUG-IN BLK. 454/06601 448/15701 | 1 | $2,219.17 | |||
| 3 | G.A. DIFFERENTIAL 448/36300 | 1 | $3,061.25 | |||
| 4 | DIFF. CASE ASSEMBLY 448/23500 | 1 | $2,020.75 | |||
| 5 | SETSCREW M8 X 65L G12.9 M 826/M4110 | 1 | $2.44 | |||
| 6 | ASSY - DIFF. PINION/GEAR 448/36400 | 1 | $544.60 | |||
| 9 | DIFF TRUNNION PIN 448/05408 | 1 | $181.02 | |||
| 10 | DIFF SPHERICAL WASHER 808/00210 | 1 | $25.00 | |||
| 11 | DIFF SIDE GEAR WASHER 808/00209 | 1 | $15.69 | |||
| 12 | DIFF PIN - TENSION 2102/0816 | 1 | $1.32 | |||
| 13 | TAPERROLLER BEARING-DIFF. 907/09200 | 1 | $93.64 | |||
| 14 | DIFF SIDE NUT 448/05405 | 1 | $92.70 | |||
| 15 | GA C/WHEEL & PINION 9/32 458/70029 | 1 | $2,173.46 | |||
| 15 | GA C/WHEEL & PINION 9/32 458/M1760 | 1 | $837.78 | |||
| 16 | BOLT M10 x 25L 826/01084 | 1 | $5.25 | |||
| 17 | BEARING -TAPER ROLLER 907/09000 | 1 | $292.88 | |||
| 18 | SHIM KIT 921/01900 | 1 | $32.86 | |||
| 19 | SPACER KIT 921/53300 | 1 | $356.34 | |||
| 20 | TAPERROLLER BEARING-PIN.T 907/09100 | 1 | $81.41 | |||
| 21 | SEAL - TRIPLE LIP 904/20172 | 1 | $37.32 | |||
| 22 | COUPLING YOKE - 1480 438/00006 458/20813 | 1 | $302.90 | |||
| 22 | YOKE - COUPLING 1480 450/27200 | 1 | $345.73 | |||
| 23 | M24 Stake Nut (s/s by 826/M4711) 826/01483 | 1 | $9.70 | |||
| 23 | STAKE NUT M30 X 2 826/01744 826/M7635 | 1 | $12.55 | |||
| 24 | TENSION PIN 826/00818 | 1 | $0.51 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-
DIAG-F1-4-20-395145 F1-4-20 HUB & COMPONENTS 2WS 4WD STEERING AXLE 448/57390
View Diagram -
DIAG-F1-5-1-395145 F1-5-1 AXLE ASSEMBLY, 2WS 4WD STEERING 448/57400
View Diagram -
DIAG-F1-4-1-395145 F1-4-1 AXLE ASSEMBLY, 2WS 4WD STEERING 448/57390 20" FRONT TYRES
View Diagram
