Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | BEARING -TAPER ROLLER 907/09000 | 1 | $292.88 | |||
| 3 | SHIM KIT 921/01900 | 1 | $32.86 | |||
| 4 | SPACER KIT 921/53300 | 1 | $356.34 | |||
| 5 | TAPERROLLER BEARING-PIN.T 907/09100 | 1 | $81.41 | |||
| 6 | SEAL - TRIPLE LIP 904/20172 | 1 | $37.32 | |||
| 7 | YOKE - COUPLING 1480 440/11900 | 1 | $698.14 | |||
| 8 | STK,NUT M22 2mm C,Bore 826/11555 | 1 | $36.52 | |||
| 10 | BOLT M10 x 25L 826/01084 | 1 | $5.25 | |||
| 11 | GA C/WHEEL AND PINION 17/33 458/70236 | 1 | $1,482.52 | |||
| 12 | TAPERROLLER BEARING-DIFF. 907/09200 | 1 | $93.64 | |||
| 13 | Diff side nut 458/20356 | 1 | $77.18 | |||
| 14 | TENSION PIN 826/00818 | 1 | $0.51 | |||

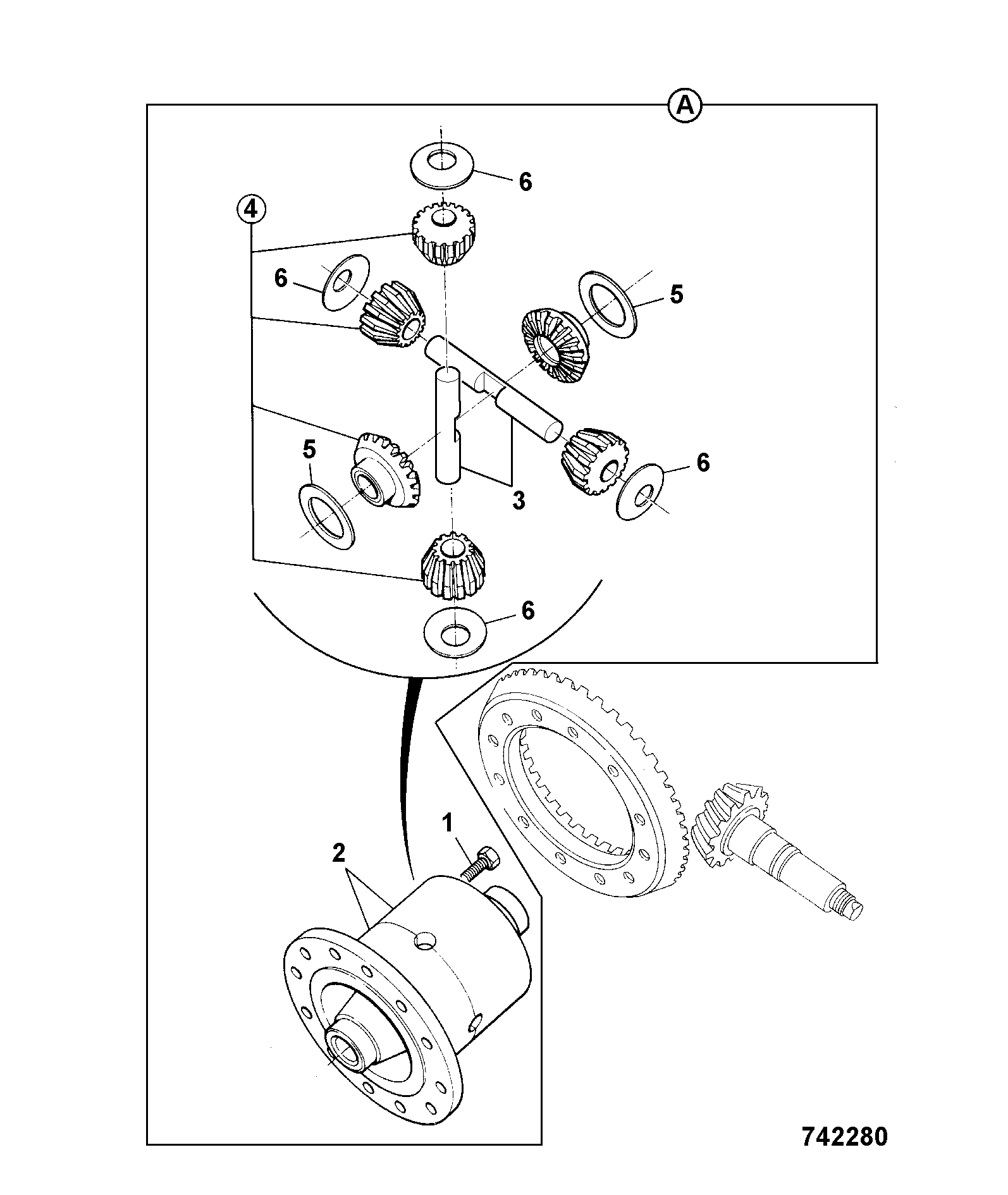

| 15 | GA DIFFERENTIAL - MAX TRA 458/11162 | 1 | $1,245.03 | |||
| 16 | DIFF BEARING HOUSING 458/20801 | 1 | $206.18 | |||
| 18 | MULTIGASKET 4102/1200 4102/1212 | 1 | $30.15 | |||
| 21 | Dowel 10 x 55 long 458/20805 | 1 | $9.15 | |||
| 22 | DRAIN PLUG - MAGNETIC 816/80012 | 1 | $45.32 | |||
| 23 | WASHER BONDED 1" BSP 1406/0021 | 1 | $6.00 | |||
| 27 | DRAIN PLUG - NON-MAGNETIC 816/80037 | 1 | $25.01 | |||
| A | GA DRIVEHEAD 458/11159 | 1 | $6,169.50 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-

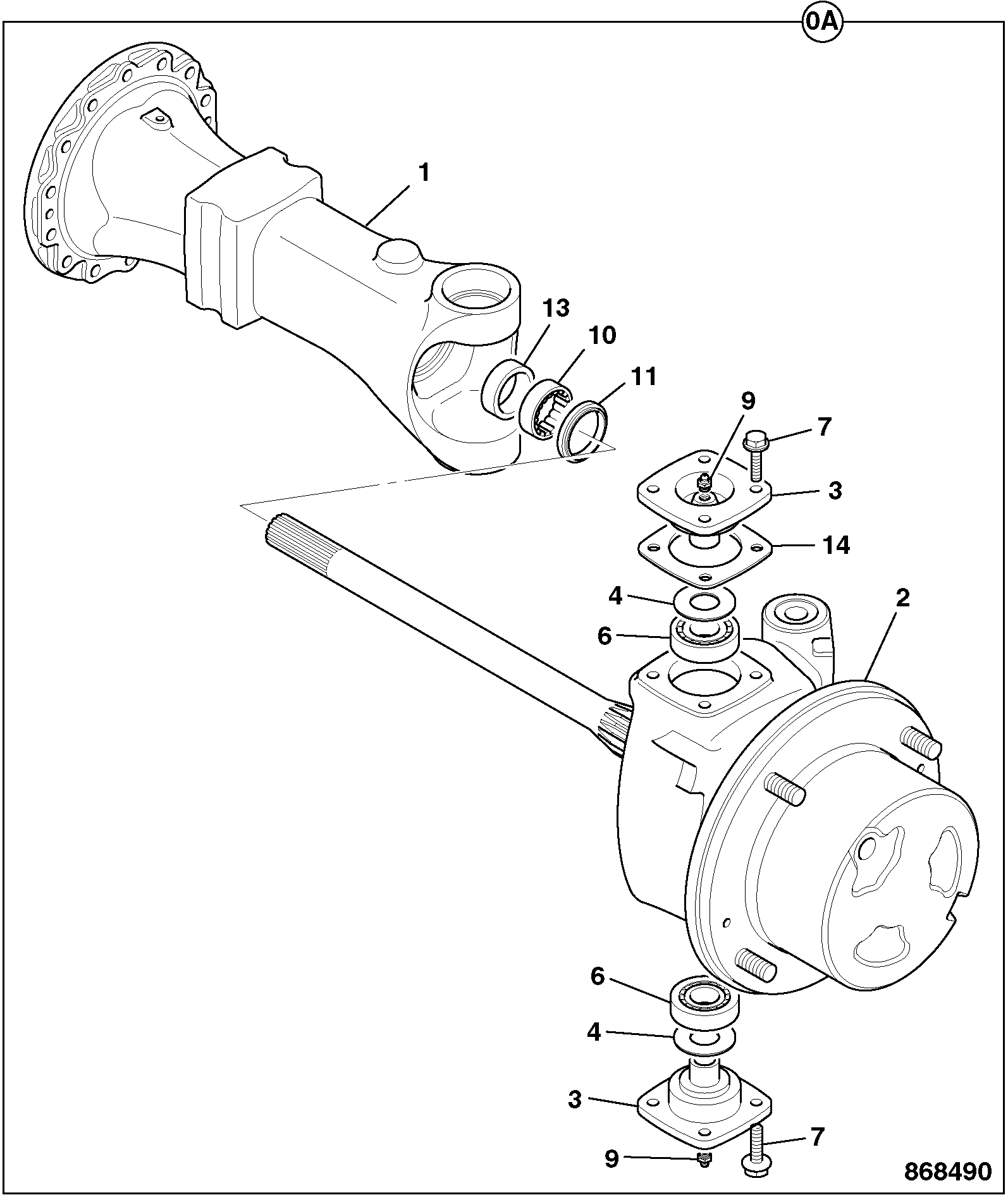

DIAG-F1-2-2-395175 F1-2-2 ARM + WHEELHUB ASSEMBLY 458/11158
View Diagram -
DIAG-F1-4-1-395175 F1-4-1 DIFFERENTIAL ASSEMBLY 458/11162
View Diagram -
DIAG-F1-2-1-395175 F1-2-1 ARM + WHEELHUB ASSEMBLY 458/11157
View Diagram
