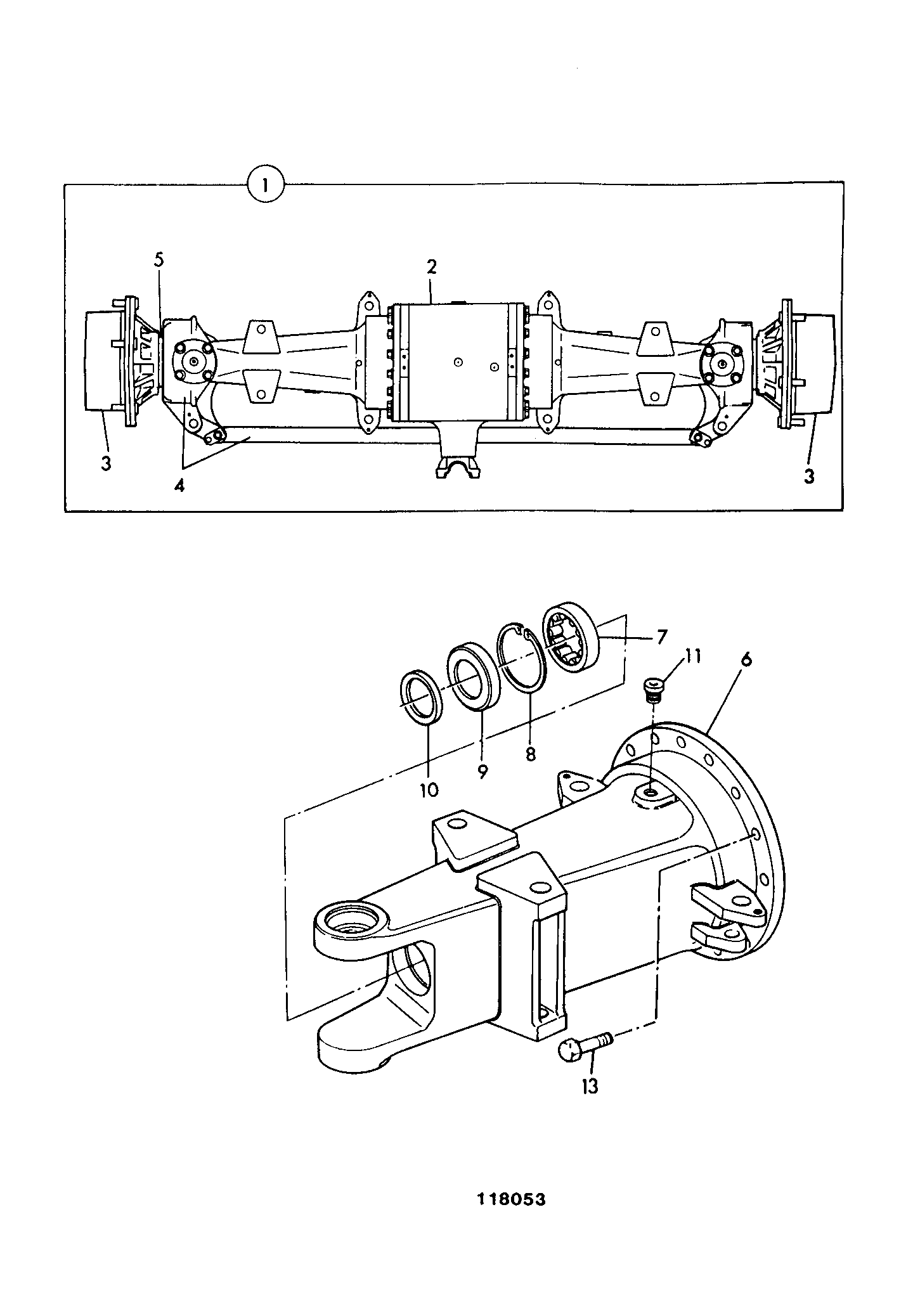

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| GA DRIVEHEAD, NORM, CBO 458/10548 | 1 | $4,707.65 | ||||
| 2 | DRIVEHEAD CASING ROUND PIN MOUNT BLK. 453/30691 | 1 | $3,412.29 | |||
| 3 | BRAKE PISTON HOUSING (CRB 458/20365 458/M5480 | 1 | $1,240.77 | |||
| 4 | DOWEL 16X55 826/00919 | 1 | $50.94 | |||
| 5 | CAPSCREW M10 X 25 LG 1392/3407 | 1 | $5.87 | |||
| 6 | PISTON BRAKE 458/20371 | 1 | $602.35 | |||
| 7 | DIFF SIDE NUT 450/10403 | 1 | $141.40 | |||
| 8 | BRAKE SEAL 813/50012 | 1 | $24.79 | |||
| 9 | BRAKE SEAL 813/50026 | 1 | $20.45 | |||
| 10 | WASHER BONDED 1" BSP 1406/0021 | 1 | $6.00 | |||
| 11 | DRAIN PLUG - NON-MAGNETIC 816/80037 | 1 | $25.01 | |||
| 13 | DRAIN PLUG - MAGNETIC 816/80012 | 1 | $45.32 | |||
| 14 | TENSION PIN 826/00818 | 1 | $0.51 | |||
| 15 | G.A. DIFFERENTIAL 450/10900 | 1 | $6,081.82 | |||
| 16 | DIFF. CASE ASSEMBLY 450/10800 | 1 | $3,778.54 | |||
| 18 | ASSY - DIFF. PINION/GEAR 450/16900 | 1 | $778.53 | |||
| 19 | DIFF SIDE GEAR WASHER 808/00209 | 1 | $15.69 | |||
| 21 | DIFF SPHERICAL WASHER 808/00210 | 1 | $25.00 | |||
| 22 | PIN - TRUNNION 450/10903 458/M3121 | 1 | $20.97 | |||
| 24 | BOLT - VERBUS RIPP - M12 x 30 826/01080 | 1 | $3.41 | |||
| 25 | BEARING -TAPER ROLLER 907/50100 | 1 | $229.63 | |||
| 26 | BEARING -TAPER ROLLER 907/09000 | 1 | $292.88 | |||
| 27 | SHIM KIT 921/01900 | 1 | $32.86 | |||
| 28 | SPACER KIT 921/53400 | 1 | $745.77 | |||
| 29 | BEARING - TAPER ROLLER 907/M5375 | 1 | $254.73 | |||
| 30 | SEAL - TRIPLE LIP 904/20172 | 1 | $37.32 | |||
| 31 | YOKE - COUPLING 1480 450/27200 | 1 | $345.73 | |||
| 32 | M 24 HARDENED WASHER 823/00328 | 1 | $12.61 | |||
| 33 | M24 Stake Nut (s/s by 826/M4711) 826/01483 | 1 | $9.70 | |||
| 33 | STAKE NUT M24 826/00817 | 1 | $3.32 | |||
| 34 | COMPRESSION SPRING 814/00365 | 1 | $19.86 | |||
| 35 | 2IN - BRAKE BACK-OFF 450/18204 | 1 | $5.16 | |||
| 36 | EXTERNAL TENSION BUSH -FL 448/16905 | 1 | $20.82 | |||
| 37 | CIRCLIP(KANBAN) 2203/1020 | 1 | $5.07 | |||
Showing 1 to 34 of 34 parts
