Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PIN 10/906407 | 1 | $2.51 | |||
| 2 | BEARING 10/908810 | 1 | $149.46 | |||
| 3 | Nut locking 10/908811 | 1 | $262.63 | |||
| 4 | SCREW 10/908812 | 1 | $74.08 | |||
| 5 | Washer thrust 10/300272 | 1 | $113.98 | |||
| 6 | GEAR SIDE 10/908814 | 1 | $815.18 | |||
| 7 | TRUNNION 10/300251 | 1 | $474.97 | |||
| 8 | PINION 10/908816 | 1 | $646.95 | |||
| 9 | BEARING 10/908906 | 1 | $70.22 | |||
| 10 | WASHER 10/908818 | 1 | $232.21 | |||
| 11 | SCREW 10/906703 | 1 | $19.43 | |||
| 12 | NUT 10/906463 | 1 | $167.52 | |||
| 13 | SCREW 10/908819 | 1 | $16.25 | |||
| 14 | BEARING 10/908820 | 1 | $303.60 | |||
| 15 | LIP SEAL 10/908821 | 1 | $151.45 | |||
| 16 | BEARING 10/908822 | 1 | $243.17 | |||
| 17 | SHIM 3.50 MM 10/908823 | 1 | $236.25 | |||
| 17 | SHIM 3.60mm 10/908824 | 1 | $236.25 | |||
| 17 | SHIM 3.7 MM 10/908825 | 1 | $279.30 | |||
| 17 | SHIM 4.0 MM 10/908828 | 1 | $236.25 | |||
| 17 | SHIM 4.10 MM 10/908829 | 1 | $279.30 | |||
| 17 | SHIM, 3.80 MM 10/908826 | 1 | $236.25 | |||
| 17 | SHIM, 3.90 MM 10/908827 | 1 | $236.25 | |||
| 17 | SHIM, 4.20 MM 10/908830 | 1 | $236.25 | |||
| 17 | SHIM, 4.30 MM 10/908831 | 1 | $236.25 | |||
| 17 | SHIM, 4.40 MM 10/908832 | 1 | $285.05 | |||
| 17 | SHIM, 4.50 MM 10/908833 | 1 | $213.65 | |||
| 18 | PUMP 10/908834 | 1 | $844.62 | |||
| 19 | SHIM 0.5 MM 10/908835 | 1 | $36.41 | |||
| 19 | SHIM 1.00 MM 10/908836 | 1 | $36.41 | |||
| 19 | SHIM 1.025 MM 10/908837 | 1 | $36.41 | |||
| 19 | SHIM 1.05 MM 10/908838 | 1 | $59.03 | |||
| 19 | SHIM 1.075 MM 10/908839 | 1 | $36.41 | |||
| 19 | SHIM 1.100 MM 10/908840 | 1 | $65.12 | |||
| 19 | SHIM 1.125 MM 10/908841 | 1 | $30.99 | |||
| 19 | SHIM 1.150 MM 10/908842 | 1 | $76.98 | |||
| 19 | SHIM 1.175 MM 10/908843 | 1 | $76.98 | |||
| 19 | SHIM 1.20 MM 10/908844 | 1 | $68.25 | |||
| 19 | SHIM 1.225 MM 10/908845 | 1 | $76.98 | |||
| 19 | SHIM 1.250 MM 10/908846 | 1 | $65.12 | |||
| 19 | SHIM 1.275 MM 10/908847 | 1 | $62.64 | |||
| 19 | SHIM 1.3 MM 10/908848 | 1 | $76.98 | |||
| 19 | SHIM 1.325 MM 10/908849 | 1 | $62.64 | |||
| 19 | SHIM 1.35 MM 10/908850 | 1 | $62.64 | |||
| 19 | SHIM 1.375 MM 10/908851 | 1 | $62.64 | |||
| 19 | SHIM 1.4 MM 10/908852 | 1 | $66.85 | |||
| 19 | SHIM 1.425 MM 10/908853 | 1 | $76.98 | |||
| 19 | SHIM 1.45 MM 10/908854 | 1 | $65.12 | |||
| 19 | SHIM 1.475 MM 10/908855 | 1 | $66.82 | |||
| 19 | SHIM 1.5 MM 10/908856 | 1 | $61.78 | |||
| 20 | YOKE 10/300273 | 1 | $5,571.61 | |||
| 21 | BEARING 10/908858 | 1 | $126.62 | |||
| 24 | Casing assembly 10/908861 | 1 | $4,361.63 | |||
| 26 | Differential assem 10/300274 | 1 | $8,566.18 | |||
Showing 1 to 54 of 54 parts
Related Assemblies
-

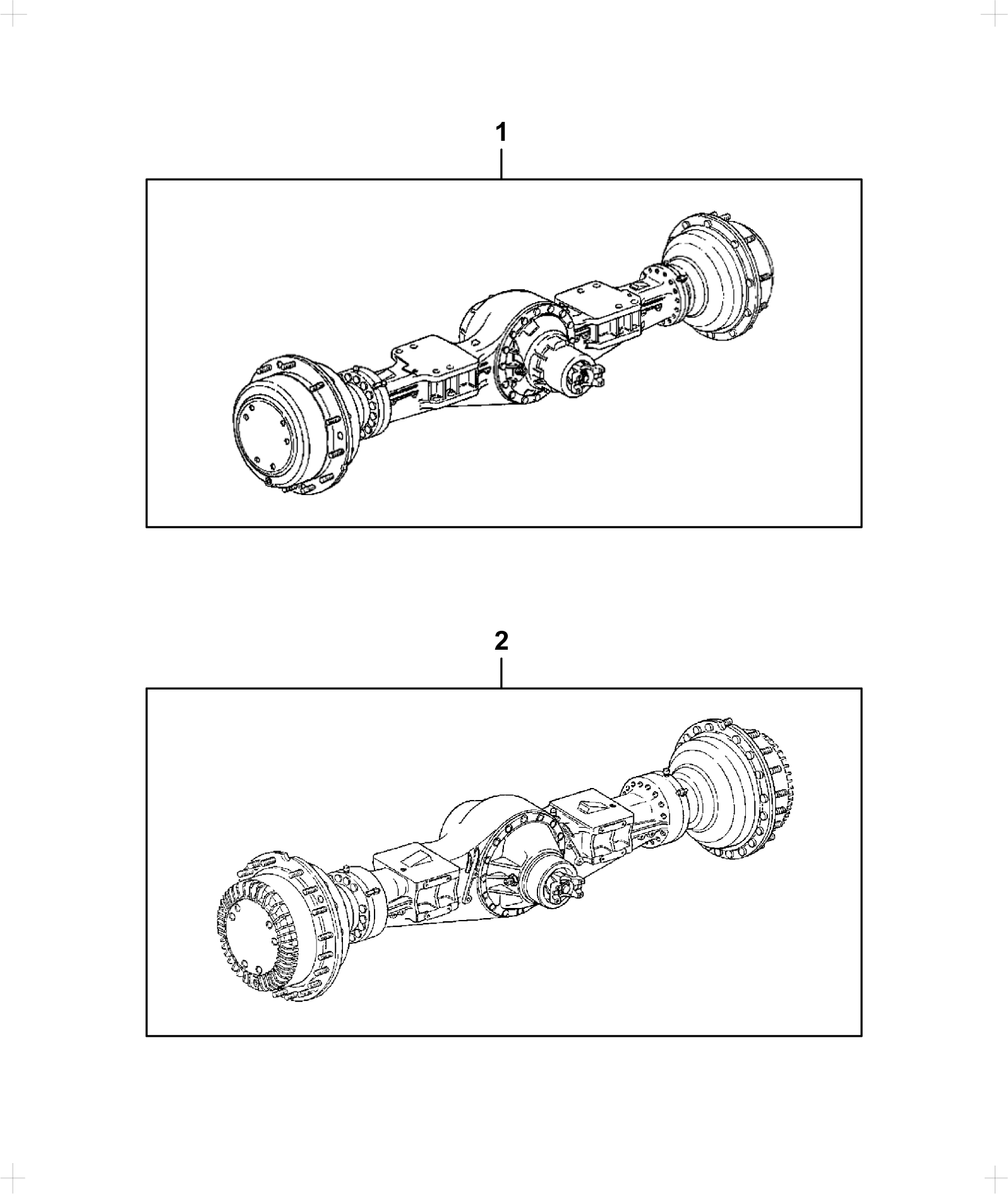

DIAG-F1-1-1-404913 F1-1-1 AXLE ASSEMBLY FRONT PR15, STD. 10/300214, DATA PLATE REF. 3286103
View Diagram -
DIAG-F1-3-1-404913 F1-3-1 HUB & COMPONENTS FRONT 10/300214, 10/300216
View Diagram -
DIAG-F1-0-1-404913 F1-0-1 AXLE ASSEMBLY FRONT & REAR STANDARD
View Diagram
