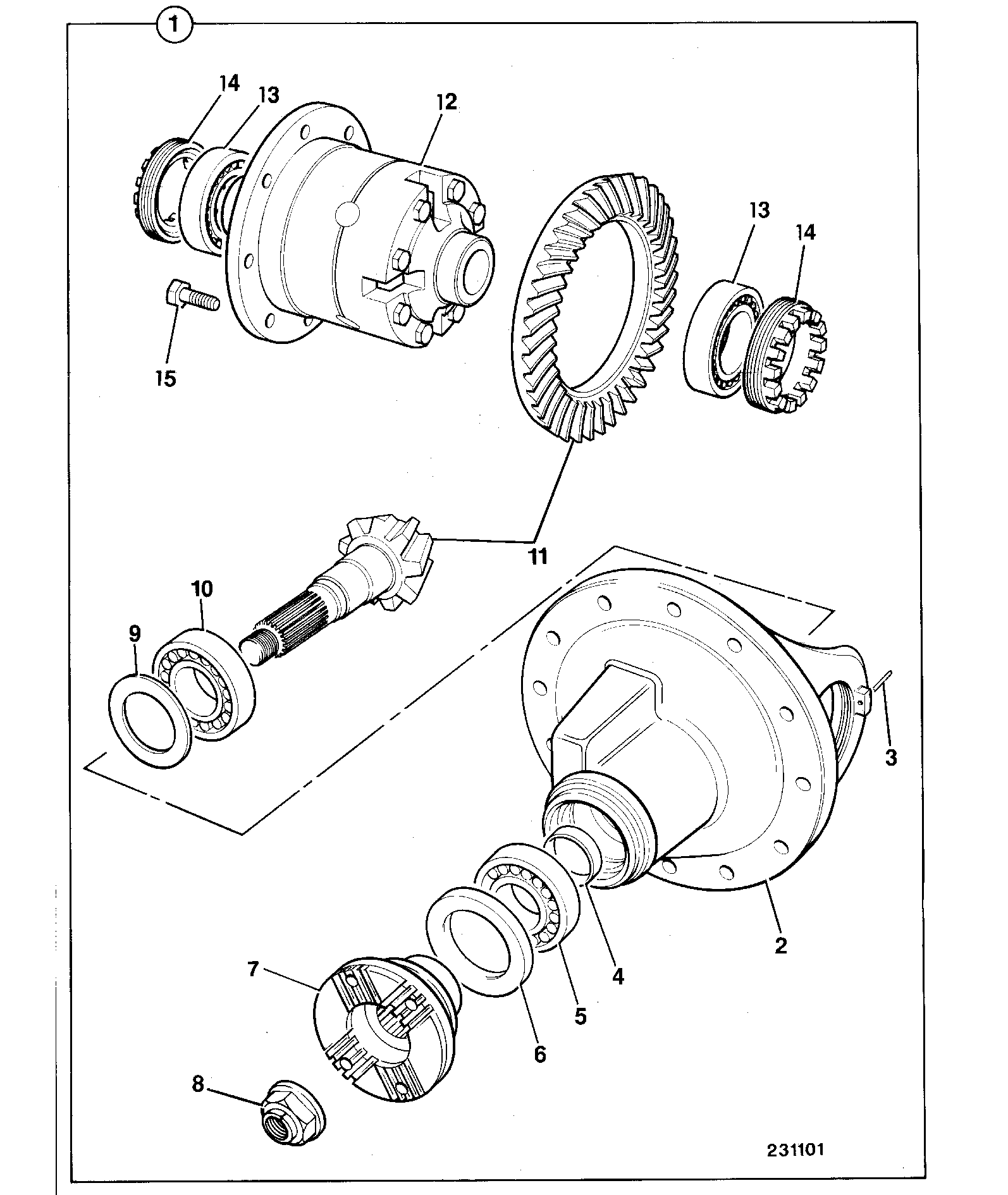

F1-14-1 454/07600 DIFFERENTIAL ASSY NO SPIN DIFFERENTIAL 4WS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	G.A. DIFFERENTIAL 454/07600	1	AVAILABLE TO ORDER	$6,053.23	Quantity
2	DIFF. CASE ASSEMBLY 454/09200	1	AVAILABLE TO ORDER	$1,194.77	Quantity
3	SETSCREW M8 X 65L G12.9 M 826/M4110	1	AVAILABLE TO ORDER	$2.44	Quantity
4	NOSPIN DIFFERENTIAL (70418) 454/05100	1	AVAILABLE TO ORDER	$1,935.84	Quantity
5	Spring 454/05101 336/E9778	1	AVAILABLE TO ORDER	$59.49	Quantity

Showing 1 to 5 of 5 parts
