Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | SEAL, O-RING 904/20262 | 1 | $82.22 | |||
| 3 | STOP-SHAFT 450/24415 | 1 | $21.19 | |||
| 4 | BOLT 450/24423 | 1 | $5.10 | |||
| 5 | Casing hub outer 10/300710 | 1 | $4,951.43 | |||
| 8 | WHEEL NUT - M22X1.5 332/P9932 | 1 | $27.68 | |||
| 9 | Plate thrust 3mm 10/300712 | 1 | $58.04 | |||
| 10 | Bearing 10/300713 | 1 | $140.65 | |||
| 11 | Spacer 10/300714 | 1 | $129.37 | |||
| 12 | Gear pinion 10/300715 | 1 | $1,023.12 | |||
| 13 | Plate thrust 10/300716 | 1 | $157.99 | |||
| 14 | Gear side 10/300717 | 1 | $976.36 | |||
| 15 | CIRCLIP 10/300718 | 1 | $6.39 | |||
| 16 | Disk brake drum 10/300719 | 1 | $813.82 | |||
| 17 | Disk brake 10/300376 | 1 | $859.62 | |||
| 18 | Plate pressure 10/300377 | 1 | $392.06 | |||
| 18 | Plate pressure 10/300378 | 1 | $560.11 | |||
| 19 | Pin 10/300720 | 1 | $96.64 | |||
| 20 | Ring retaining 10/300721 | 1 | $25.13 | |||
| 21 | Plate pressure 10/300724 | 1 | $2,600.15 | |||
| 22 | SPRING 10/908908 | 1 | $704.23 | |||
| 23 | RETAINER 10/908909 | 1 | $47.34 | |||
| 24 | PLATE-LOCKING 450/24414 | 1 | $17.12 | |||
| 25 | Nut adjusting 10/300725 | 1 | $357.04 | |||
| 26 | Circlip 10/300726 | 1 | $19.43 | |||
| 27 | Plate trust 10/300727 | 1 | $45.59 | |||
| 28 | Bearing 10/300658 | 1 | $1,242.06 | |||
| 29 | GEAR, SUPPORT 10/300728 | 1 | $3,423.11 | |||
| 30 | Gear anulus 10/300729 | 1 | $4,756.21 | |||
| 31 | Casing 10/300730 | 1 | $6,181.49 | |||
| 32 | WHEEL STUD 450/24431 | 1 | $11.57 | |||
| 33 | Seal 904/20263 | 1 | $103.31 | |||
| 34 | Piston 10/300731 | 1 | $895.27 | |||
| 35 | Seal 904/20264 | 1 | $134.80 | |||
| 36 | BEARING 10/908876 | 1 | $857.26 | |||
| 37 | SEAL 904/20265 | 1 | $383.47 | |||
| 39 | BREATHER 10/906509 | 1 | $35.66 | |||
| 40 | SCREW 450/24417 | 1 | $4.35 | |||
| 41 | SEAL, O-RING 10/908887 | 1 | $219.44 | |||
| 43 | SCREW 10/908889 | 1 | $79.86 | |||
| 44 | Ring 10/300732 | 1 | $98.97 | |||
| 45 | COVER OIL BREATHER 10/906514 | 1 | $3.91 | |||
| 46 | Seal 10/300733 | 1 | $14.76 | |||
| 47 | Plug 10/300734 | 1 | $9.07 | |||
| 48 | KIT, AXEL HUB 10/300735 | 1 | $8,571.02 | |||
Showing 1 to 44 of 44 parts
Related Assemblies
-

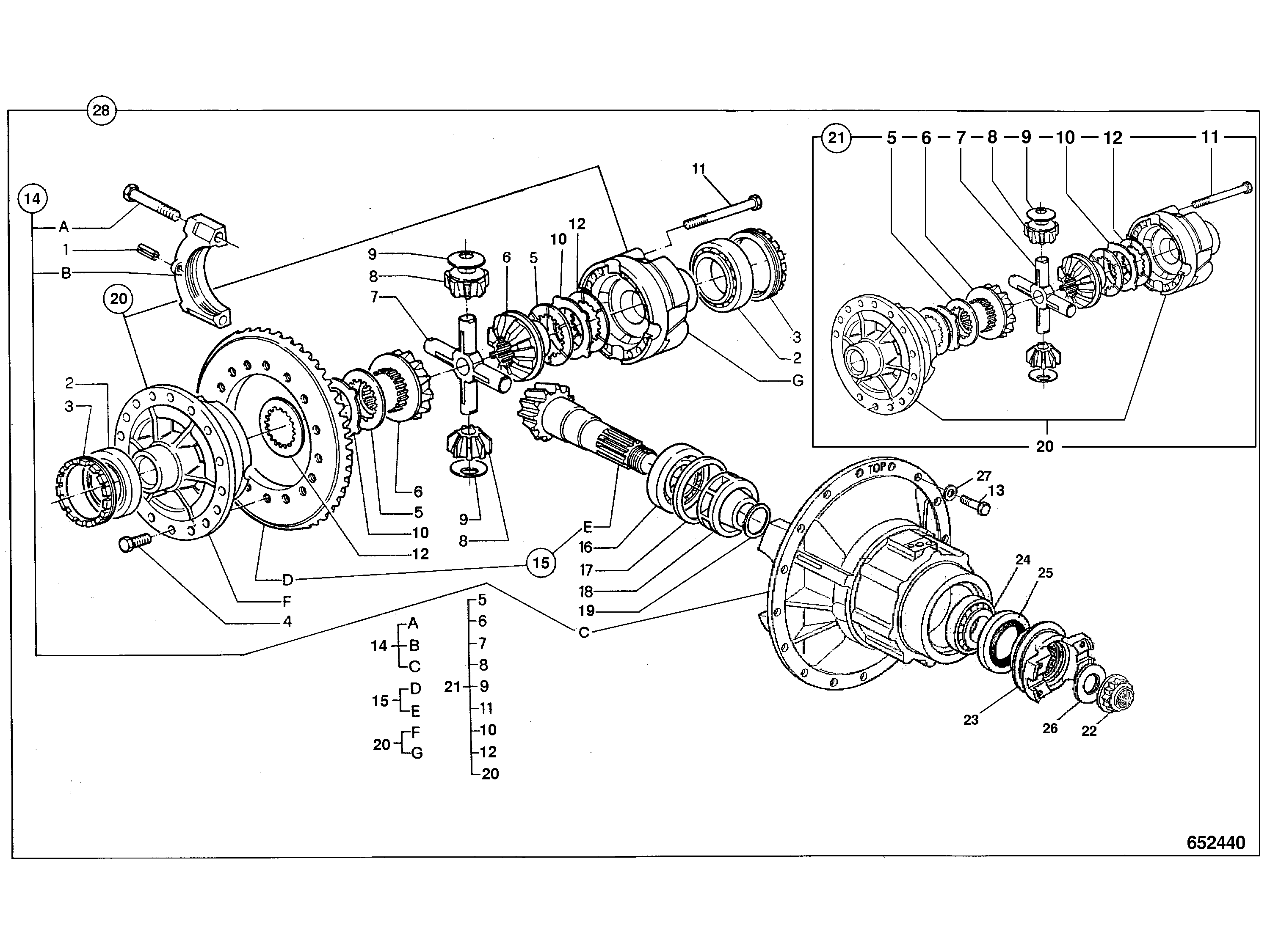

DIAG-F1-12-1-404926 F1-12-1 DIFFERENTIAL COMPONENTS LIMITED SLIP, PR24 10/300271
View Diagram -

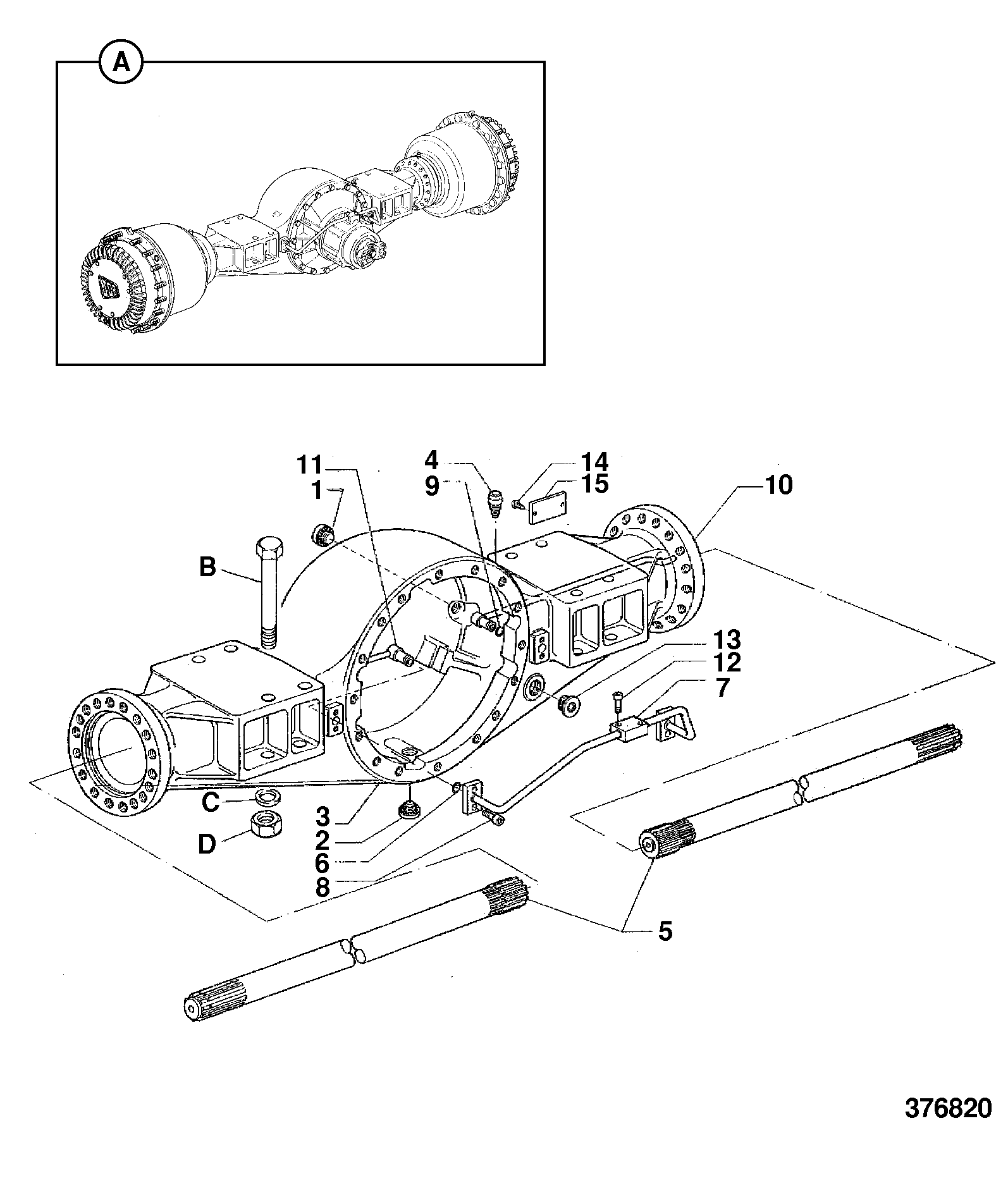

DIAG-F2-1-1-404926 F2-1-1 AXLE ASSEMBLY REAR PR15, STD. 10/908900, DATA PLATE REF. 3.24032.3
View Diagram -

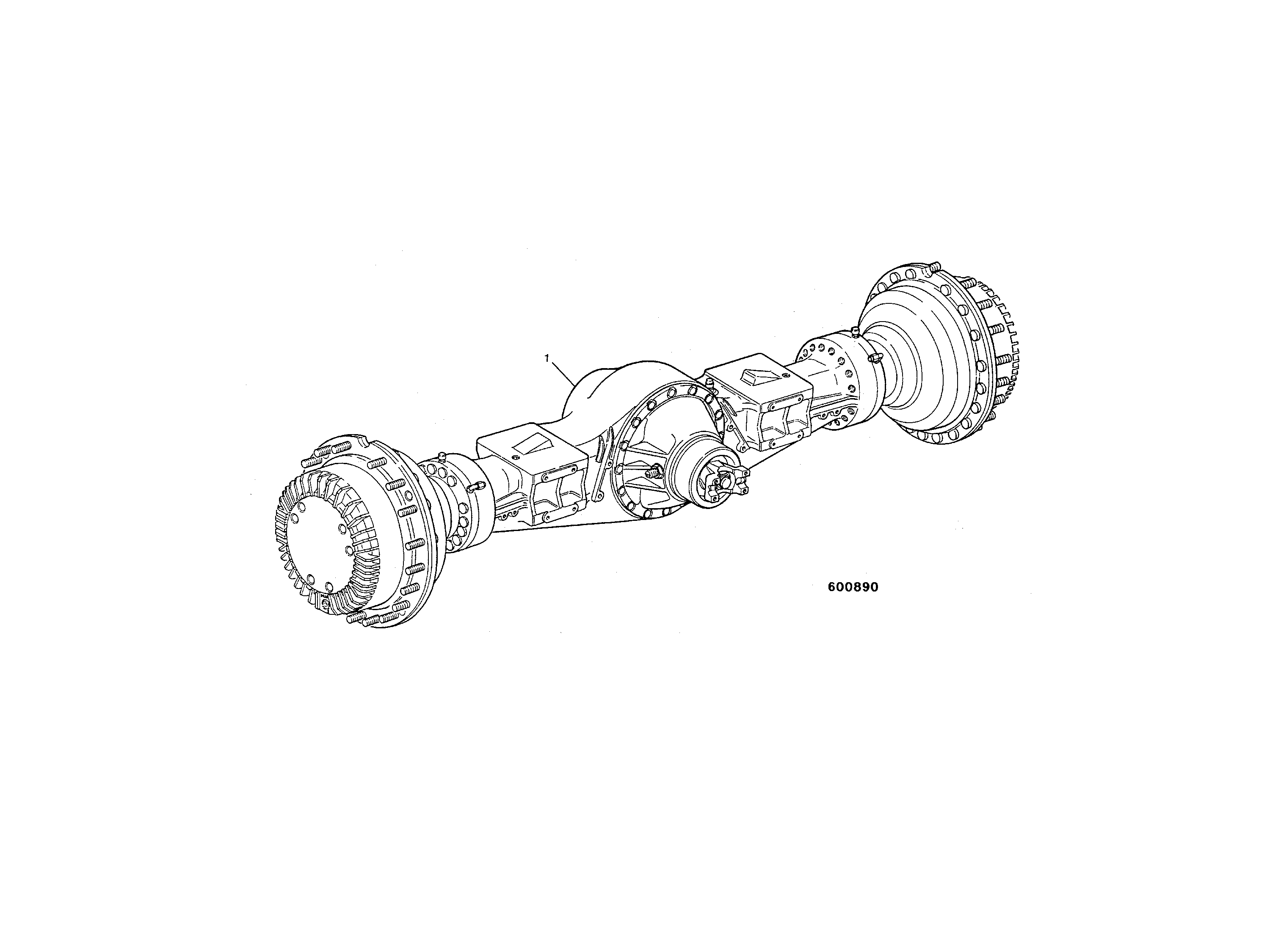

DIAG-F1-11-1-404926 F1-11-1 AXLE ASSEMBLY FRONT PR24, LSD 10/300271, DATA PLATE REF.3.31342.3
View Diagram
