Scroll to zoom Click a part # to view details

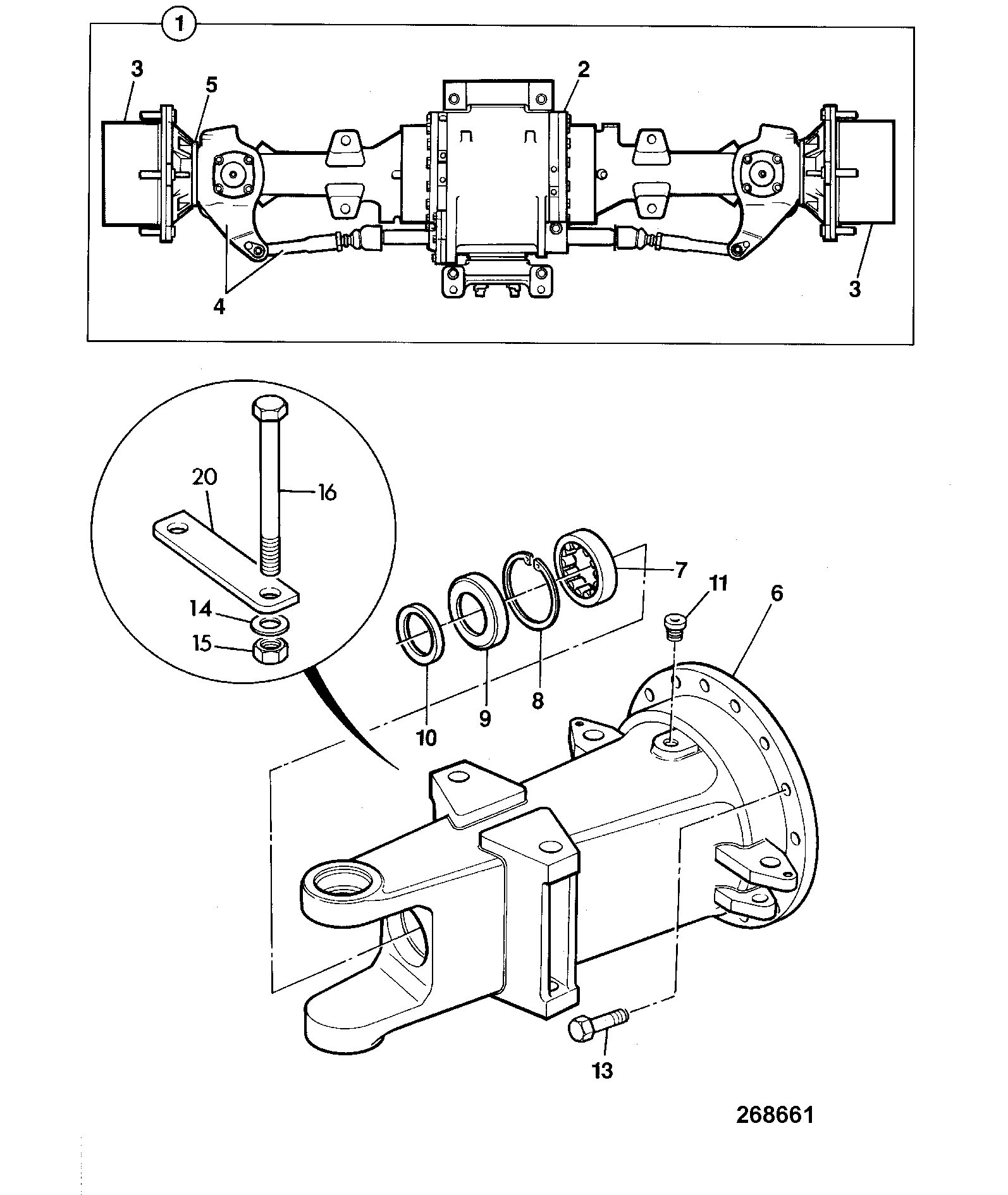

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 6 | P.T.R. MM ARM BLACK 458/M0346 | 1 | $2,068.84 | |||
| 6 | P.T.R. MM ARM BLACK 3/4 TAPPED HOLE 458/M0421 | 1 | $2,297.58 | |||
| 7 | CYLINDRICAL ROLLER BEARIN 907/08400 | 1 | $111.82 | |||
| 8 | INT CIRCLIP 80mm [1300 08 2203/1082 | 1 | $2.14 | |||
| 9 | DRIVESHAFT SEAL 904/50040 | 1 | $61.12 | |||
| 10 | MASKING RING 448/04802 | 1 | $1.49 | |||
| 11 | AXLE BREATHER (PLASTIC) 450/13001 453/00303 | 1 | $83.88 | |||
| 13 | BOLT - M16 X 70 FLANGED 826/01083 | 1 | $27.92 | |||
| 14 | WASHER 1" SMALL PLAIN 1410/0010Z | 1 | $4.80 | |||
| 15 | NUT 1"UNF 826/01714 | 1 | $10.72 | |||
| 16 | 1"UNF X 10.5" BOLT 826/01665 | 1 | $54.30 | |||
| 20 | PLATE SPACER 162/03772 | 1 | $37.06 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-
DIAG-F1-1-3-400909-13048775 F1-1-3 AXLE,SWAY L.S.D.29KPH 453/33410
View Diagram -
DIAG-F1-1-3-400909 F1-1-3 AXLE,SWAY L.S.D. 29KPH 453/33410
View Diagram -
DIAG-F1-1-2-400909-13048773 F1-1-2 AXLE,FIXED SD80 PAD MOUNT AXLE 453/35150
View Diagram
