Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | RH FRONT SWIVEL M/C 332/S1763 | 1 | $742.86 | |||
| 2 | LH FRONT SWIVEL M/C 332/S1764 | 1 | $708.28 | |||
| 3 | BACK-UP WASHER 332/R1117 333/S0030 | 1 | $14.07 | |||
| 4 | Trunnion Seal B 332/R4088 | 1 | $44.69 | |||
| 5 | Taper Bearing 332/U7739 | 1 | $53.62 | |||
| 6 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 7 | BOLT M10x35 1315/3409D | 1 | $8.02 | |||
| 8 | PIN - LINK 440/20604 458/N7750 | 1 | $74.39 | |||
| 10 | ROLL PIN - DIA 5 x 45 332/W3360 | 1 | $1.08 | |||
| 11 | GA - CONTROL ARM 332/R8304 | 1 | $370.44 | |||
| 12 | GREASE NIPPLE G1/8A 90DEG 1450/1001 | 1 | $3.38 | |||
| 13 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 14 | CAP NIPPLE 835/00017 835/00017A | 1 | $4.12 | |||
| 15 | HEX.BOLT M10x40 LG (P664/P545) 1315/3410D | 1 | $1.89 | |||
| 16 | GREASE NIPPLE 1450/1007 | 1 | $7.33 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-

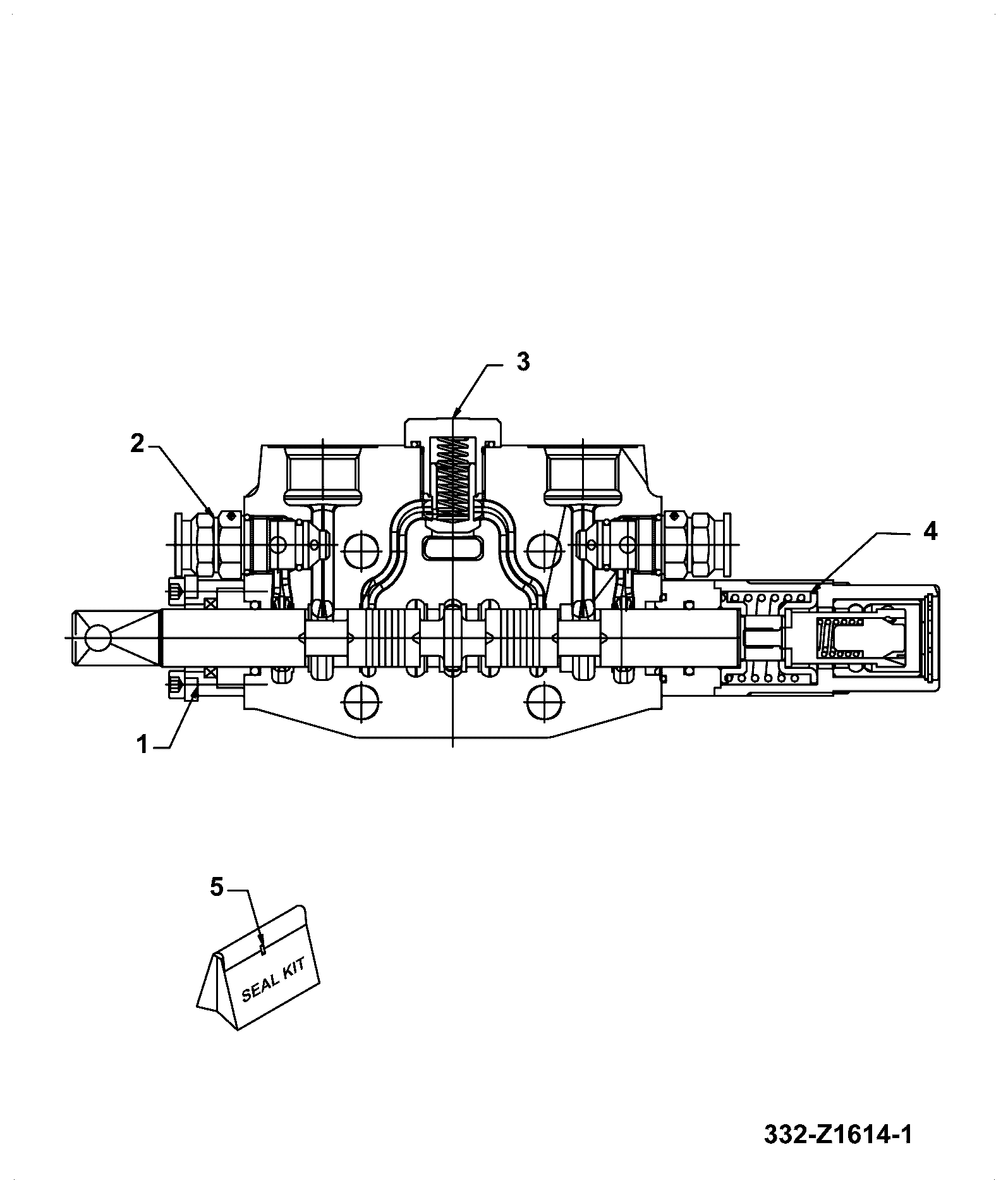

DIAG-E310-69-1-400502 E310-69-1 VALVES LOADER VALVE BLOCK COMPONENTS - END SECTION (BLOCK 333/R2640)
View Diagram -
DIAG-F1-2-1-400502 F1-2-1 ARM CONTROL
View Diagram -
DIAG-E310-68-1-400502 E310-68-1 VALVES LOADER VALVE BLOCK COMPONENTS - AUX (BLOCK 333/R2640)
View Diagram
