Kubota KX71-3S CABIN E80000 OIL PIPING (S/P) Parts Diagram

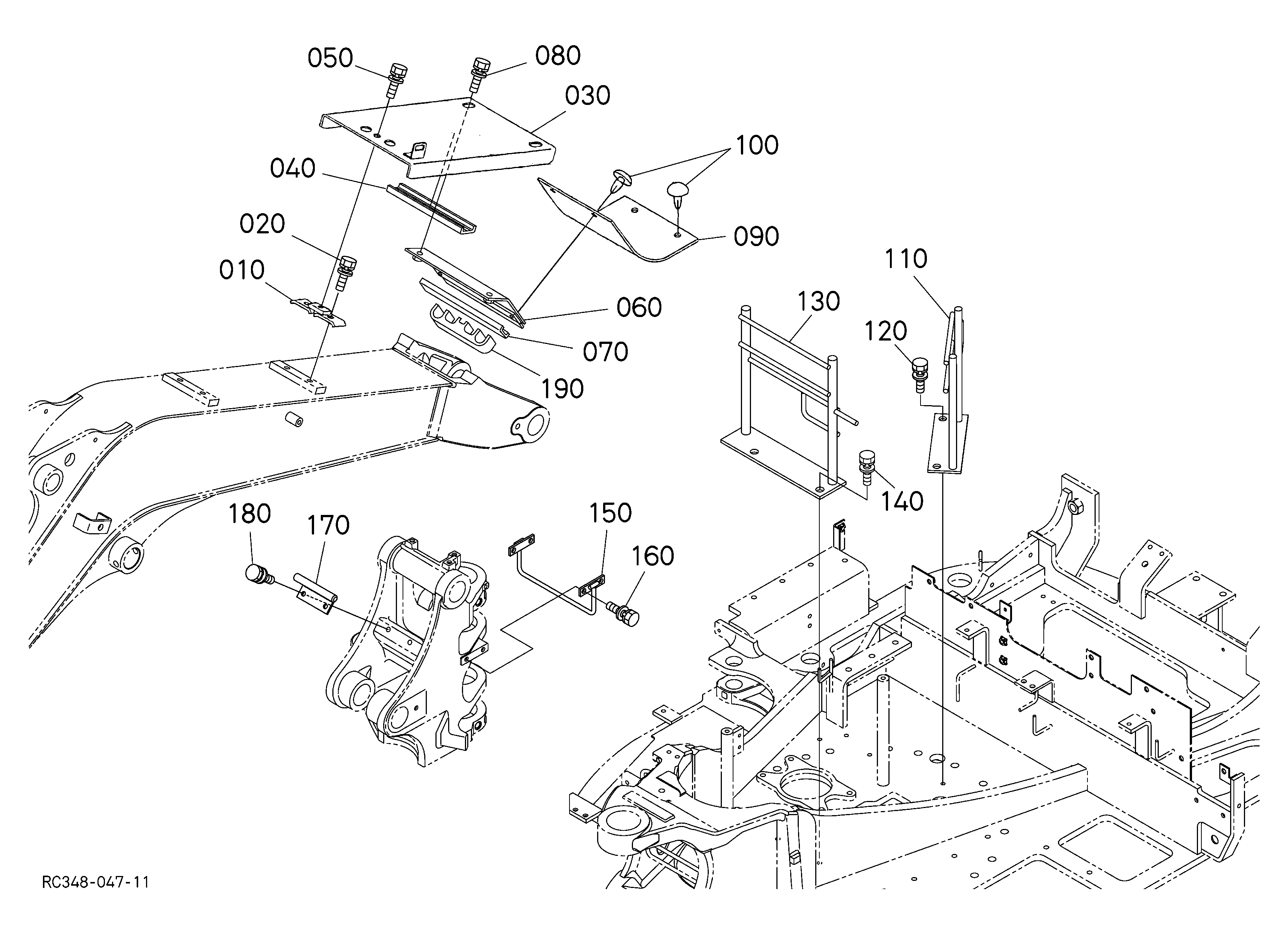

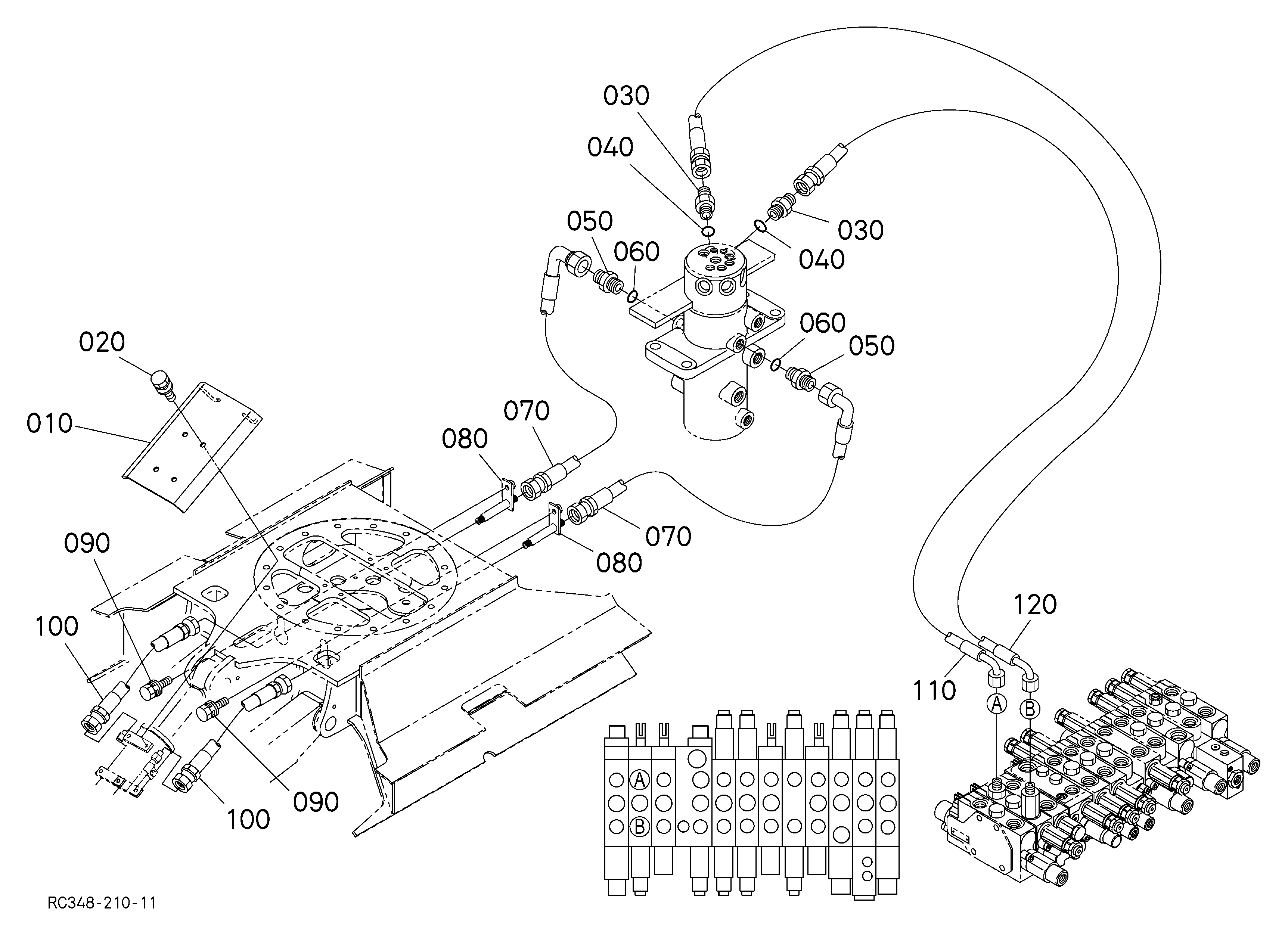

Exploded-view parts diagram "E80000 OIL PIPING (S/P)" for the Kubota KX71-3S CABIN and Kubota KX71-3S CANOPY. 18 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | HOSE, HYDRAULIC RC348-92310 RC348-92312 | 1 | $262.87 | |||
| 020 | HOSE, HYDRAULIC RC348-92320 RC348-92322 | 1 | $269.77 | |||
| 030 | PIPE (HYDRAULIC, RC348-92430 | 1 | $508.74 | |||
| 040 | PIPE (HYDRAULIC, RC348-92440 | 1 | $508.74 | |||
| 050 | Equipment Bolt for Seat, ROPS, and Battery Components 01135-51025 | 1 | $2.17 | |||
| 060 | ASSY CLAMP RD441-92300 RD441-92302 | 1 | $49.45 | |||
| 060 | ASSY CLAMP, SP RD411-92300 69738-92300 | 1 | $48.74 | |||
| 070 | BOLT 01133-51055 | 1 | $3.14 | |||
| 080 | HOSE, HYDRAULIC RC348-92480 | 1 | $196.77 | |||
| 090 | PIPE, HYDRAULIC RD118-92973 | 1 | $150.85 | |||
| 100 | CLAMP 68318-92240 RC348-92240 | 1 | $12.61 | |||
| 110 | Bolt - M10 x 1.25 x 20mm 01135-51020 | 1 | $1.99 | |||
| 120 | PLUG RD819-61810 | 1 | $20.29 | |||
| 120 | PLUG * 06312-10040 | 1 | $9.22 | |||
| 125 | JOINT, W-PLUG + RD358-92950 | 1 | $46.75 | |||
| 130 | HOSE, HYDRAULIC RC348-63820 | 1 | $87.11 | |||
| 140 | HOSE, HYDRAULIC RC348-63830 | 1 | $121.91 | |||
| 150 | BAND, CORD 55311-41261 55311-41260 | 1 | $4.85 | |||
Showing 1 to 18 of 18 parts
