Kubota KX71-3 CANOPY E80000 OIL PIPING(S/P) Parts Diagram

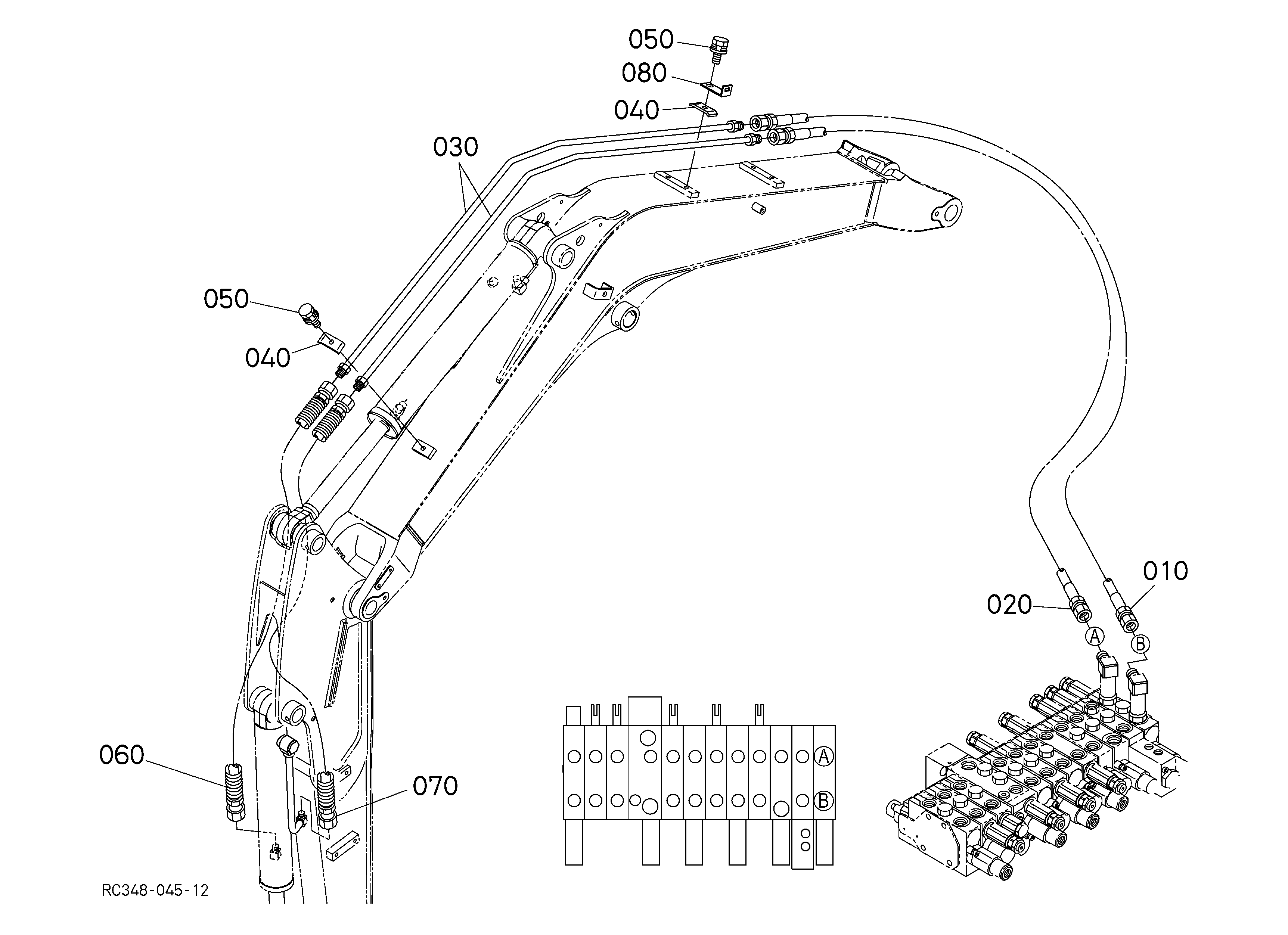

Exploded-view parts diagram "E80000 OIL PIPING(S/P)" for the Kubota KX71-3 CANOPY. 12 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | HOSE, HYDRAULIC RC348-92310 RC348-92312 | 1 | $262.87 | |||
| 020 | HOSE, HYDRAULIC RC348-92320 RC348-92322 | 1 | $269.77 | |||
| 030 | PIPE (HYDRAULIC, RC348-92430 | 1 | $508.74 | |||
| 040 | PIPE (HYDRAULIC, RC348-92440 | 1 | $508.74 | |||
| 050 | replaces #01135-61025 BOLT 01135-61025 01135-71025 | 1 | $2.47 | |||
| 060 | ASSY CLAMP, SP RD411-92300 69738-92300 | 1 | $48.74 | |||
| 070 | BOLT 01133-61055 01133-71055 | 1 | $2.95 | |||
| 080 | HOSE, HYDRAULIC RC348-92480 | 1 | $196.77 | |||
| 090 | PIPE, HYDRAULIC RD118-92973 | 1 | $150.85 | |||
| 100 | CLAMP 68318-92240 RC348-92240 | 1 | $12.61 | |||
| 110 | BOLT 01135-61020 01135-71020 | 1 | $1.99 | |||
| 120 | PLUG * 06312-10040 | 1 | $9.22 | |||
Showing 1 to 12 of 12 parts
