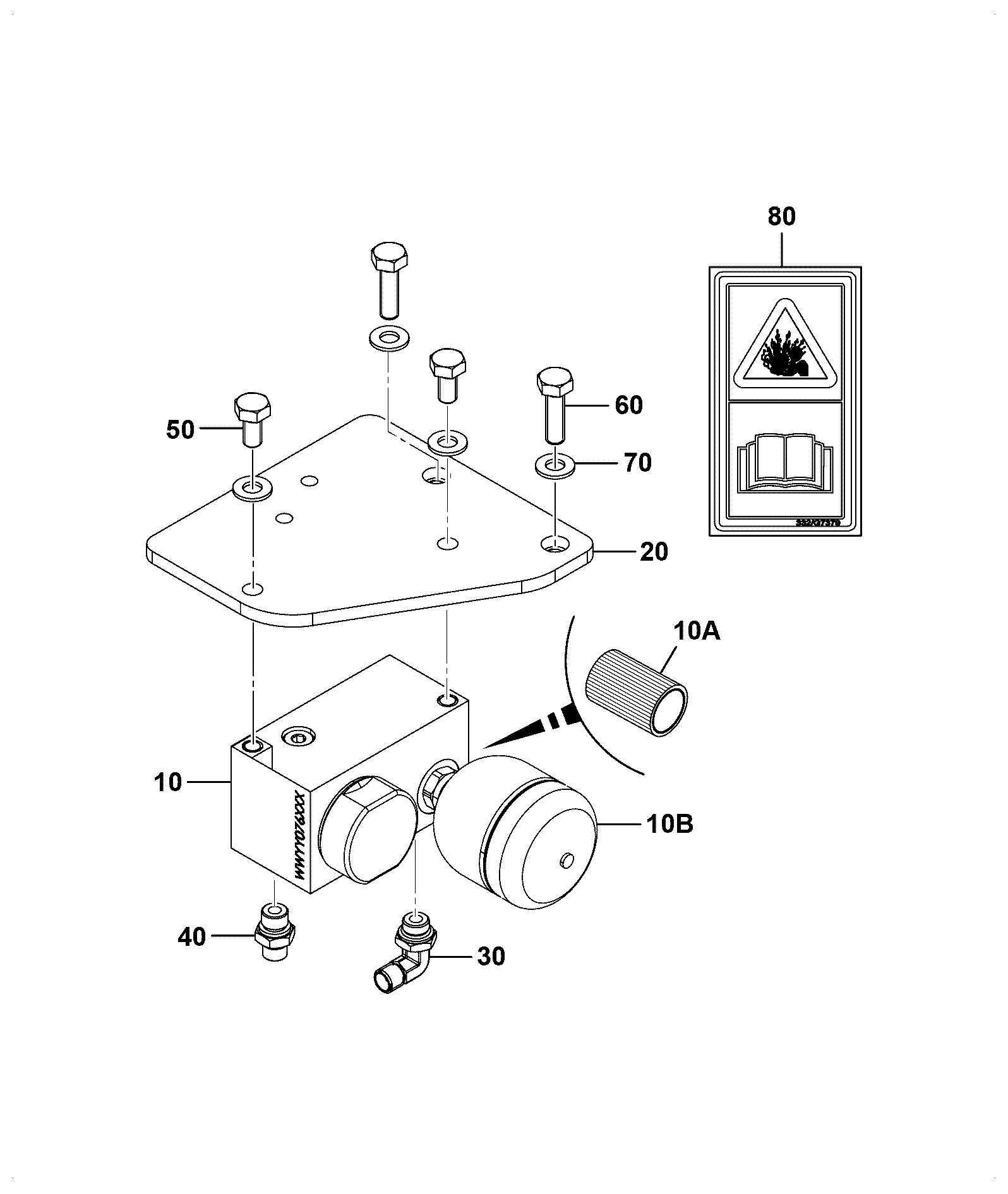

E520-5-1 FILTER OTHER HYDRAULIC ASSEMBLY PILOT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	PILOT FILTER ASSY 401/J3899	1	AVAILABLE TO ORDER	$1,234.67	Quantity
1	10 Micron element 400/06305 400/00629	1	AVAILABLE TO ORDER	$218.97	Quantity
2	Accumulator 0.16LTR Uncharged 400/00630	1	AVAILABLE TO ORDER	$488.27	Quantity
3	Seal Kit 400/17138	1	AVAILABLE TO ORDER	$108.06	Quantity

Showing 1 to 4 of 4 parts

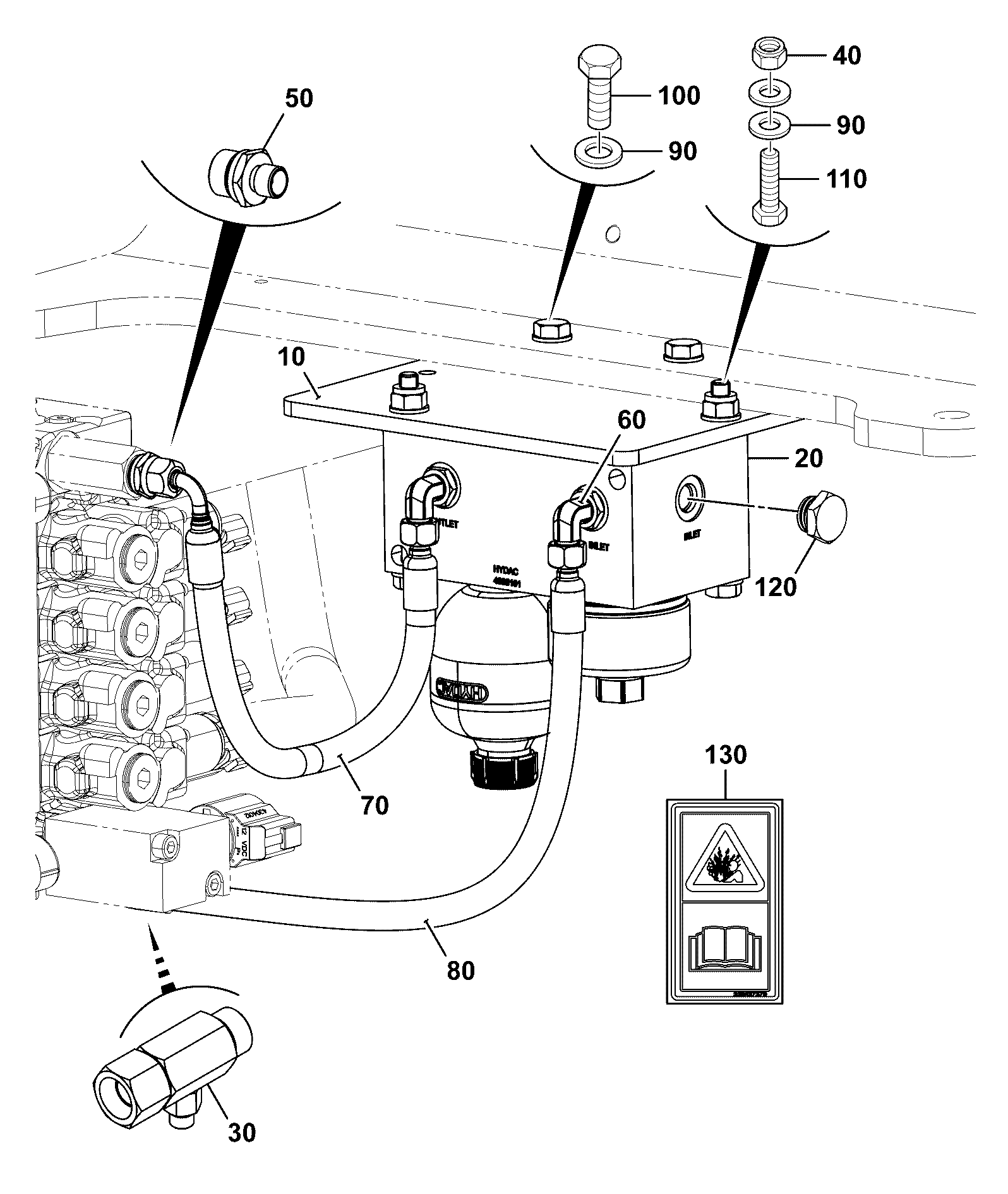

DIAG-E500-5-1-400706 E500-5-1 FILTER INSTALLATION ASSEMBLIES PILOT FILTER
View Diagram

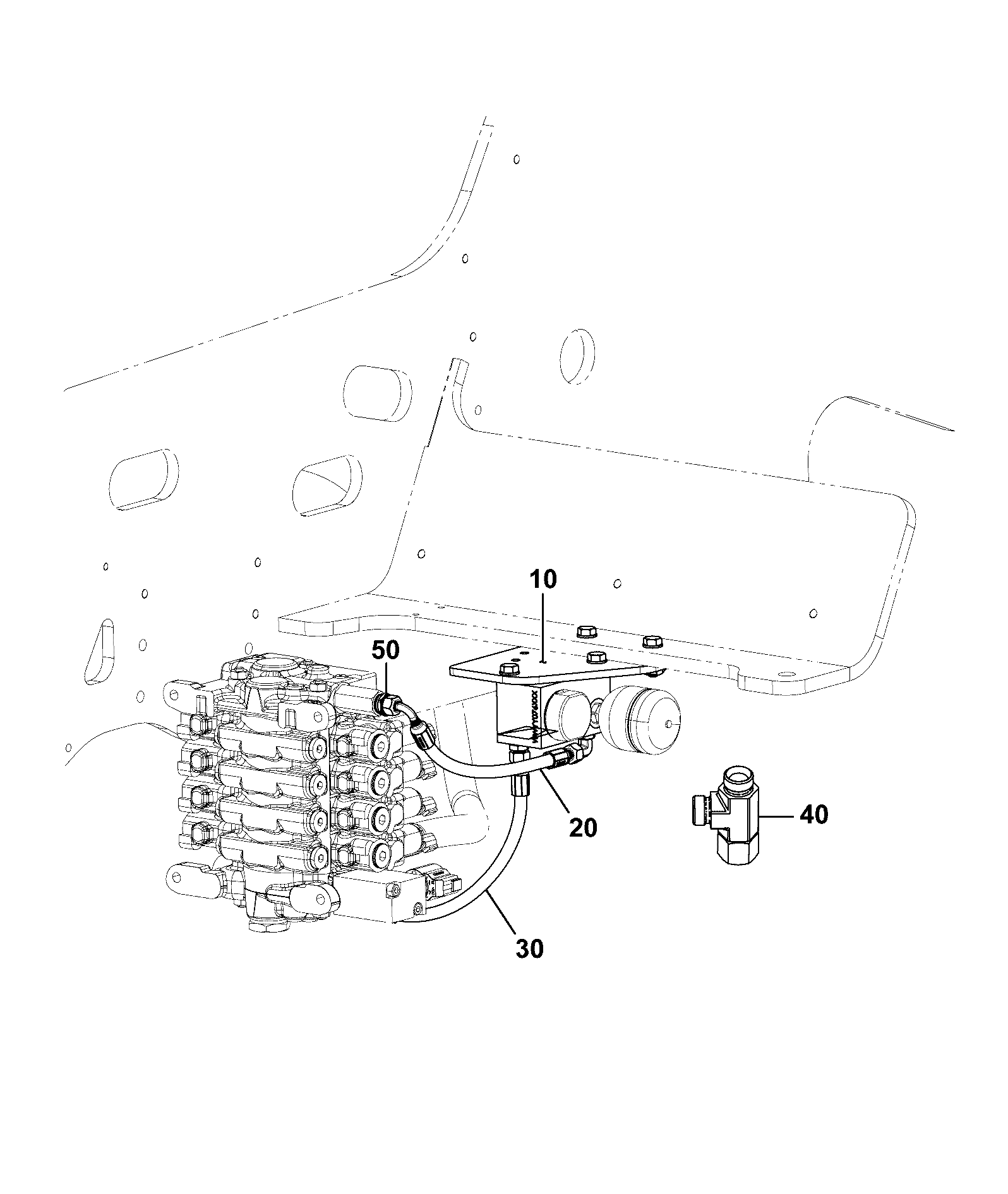

DIAG-E550-5-5-400706 E550-5-5 FILTER SERVO CONTROL (PILOT) INSTALLATION
