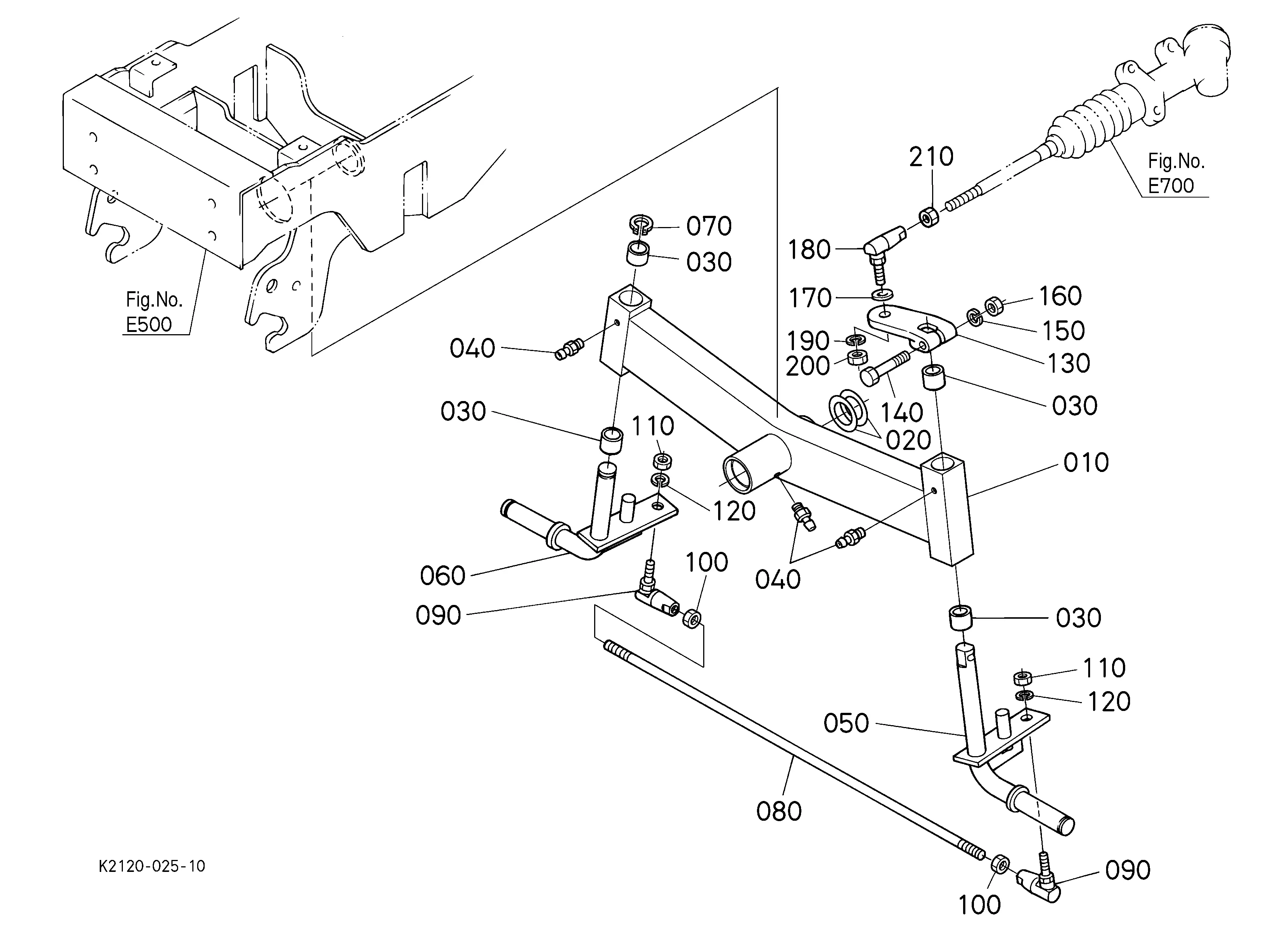

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | KIT, COMPLETE FR K1310-95030 Discontinued | 1 | $787.96 | |||
| 010 | KIT,FRAME K2110-95030 | 1 | $1,548.38 | |||
| 013 | LABEL SET, CAUTI K1310-65170 | 1 | $64.05 | |||
| 013 | LABEL, SET 2 CAU K1122-65190 | 1 | $93.82 | |||
| 015 | LABEL, HOT CAUTI K1213-65320 | 1 | $105.45 | |||
| 020 | EX SUPPORT (STEE K1211-21110 K1211-21119 Discontinued | 1 | $309.36 | |||
| 030 | BOLT K1122-91420 | 1 | $3.75 | |||
| 040 | WASHER, PLAIN K1122-21160 | 1 | $5.20 | |||
| 050 | NUT (FLANGE, M10 K1122-91960 K1122-91962 | 1 | $0.60 | |||
| 060 | SCREEN, AIR INTA K1211-21120 | 1 | $38.61 | |||
| 070 | M6 Flange Bolt 01754-50616 | 1 | $2.36 | |||
| 080 | BOLT 01053-51255 | 1 | $7.87 | |||
| 090 | HEX , BOLT M12X1 01053-51270 | 1 | $5.43 | |||
| 100 | Spring Washer 04512-60120 04512-70120 | 1 | $0.36 | |||
| 110 | BOLT, FLANGE 01053-51065 | 1 | $5.89 | |||
| 120 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 150 | BOLT-G2160 01053-51055 | 1 | $1.78 | |||
Showing 1 to 17 of 17 parts
