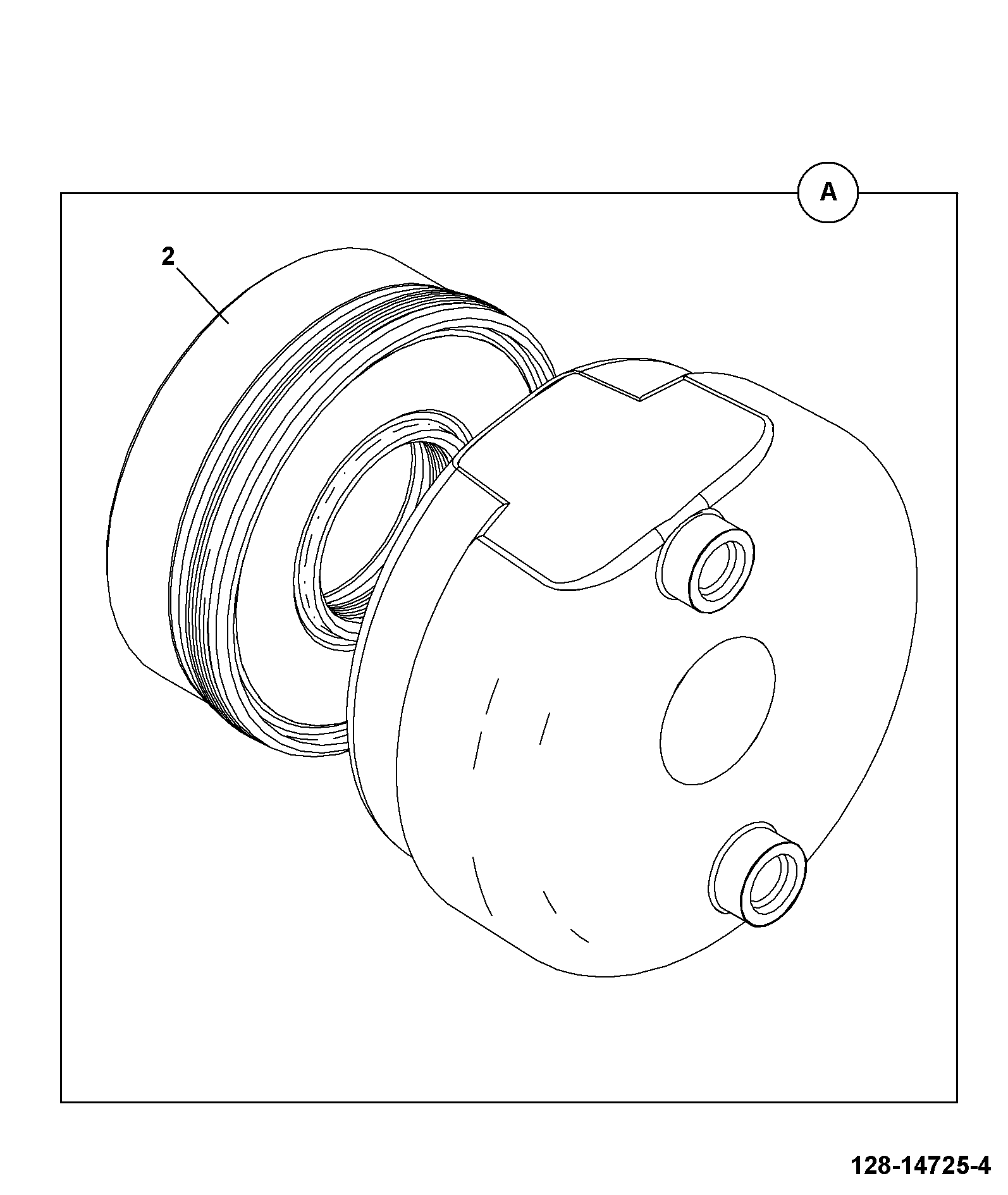

E490-5-1 OTHER RAMS HYDRACLAMP 1 PORT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	PISTON carriage clamp 904/20336	1	AVAILABLE TO ORDER	$123.15	Quantity
A	GA Clamp Cylinder 331/45731 128/14726	1	AVAILABLE TO ORDER	$286.62	Quantity

Showing 1 to 2 of 2 parts
