Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

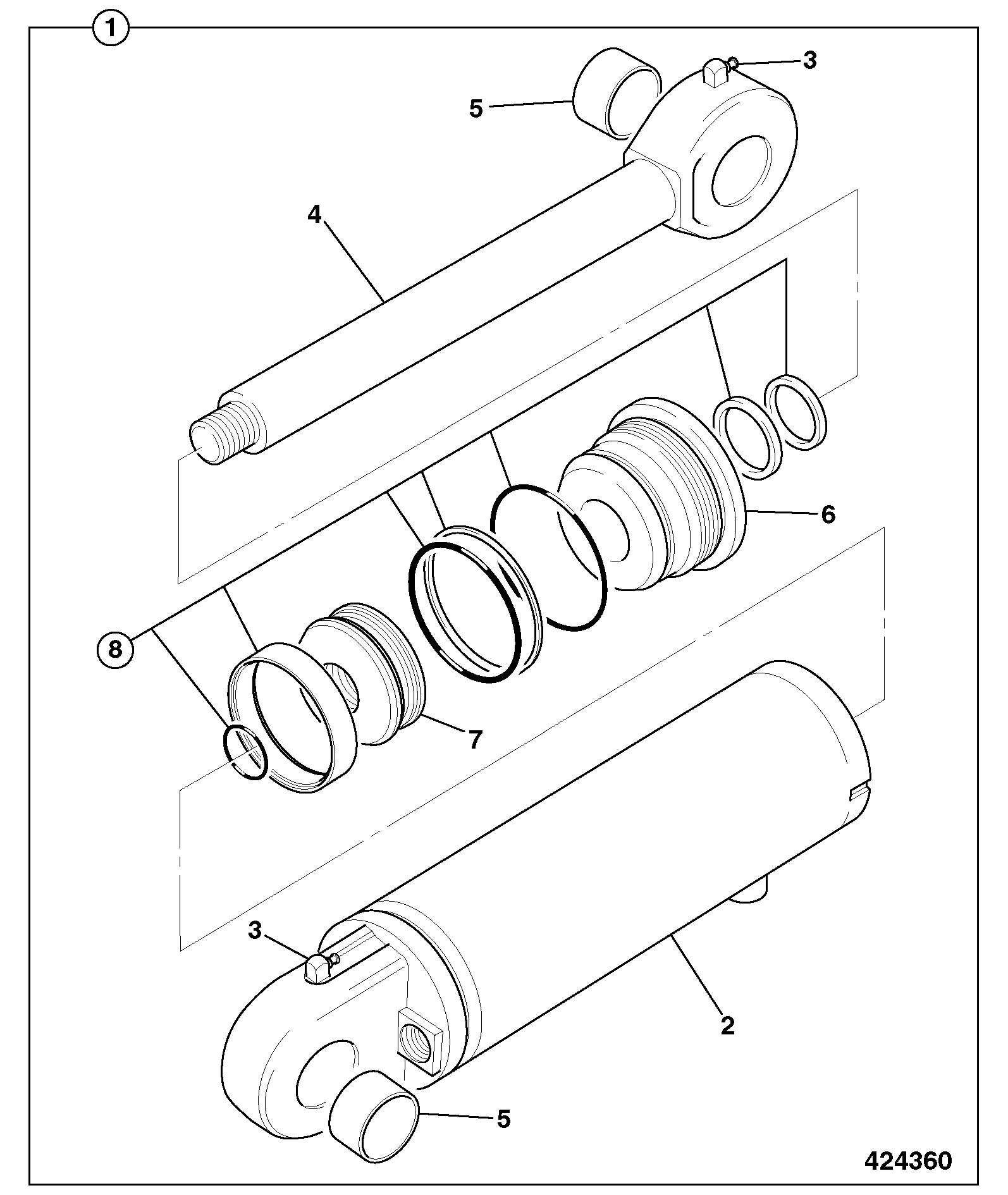

| 1 | SUSP CYL:45 DIAM+CUSH 477/74500 | 1 | $989.67 | |||
| 2 | Cylinder 477/49863 | 1 | $334.50 | |||
| 3 | NIPPLE GREASE 476/09805 | 1 | $11.29 | |||
| 4 | BEARING & SPRING R 477/49862 | 1 | $214.24 | |||
| 5 | ROD PISTON 477/01082 | 1 | $1,056.33 | |||
| 7 | BEARING RING ASSY 476/09804 | 1 | $150.55 | |||
| 8 | Head 477/01086 | 1 | $306.47 | |||
| 9 | Bearing 477/01083 | 1 | $287.05 | |||
| 10 | KIT, SEAL - SUSPENSION RAM 477/01085 | 1 | $258.05 | |||
| 11 | Cover Protective Tube 477/01013 | 1 | $43.64 | |||
Showing 1 to 10 of 10 parts
Related Assemblies
-
DIAG-E490-15-1-393660 E490-15-1 OTHER RAMS AWS RAM INSTALLATION ASSEMBLY
View Diagram -

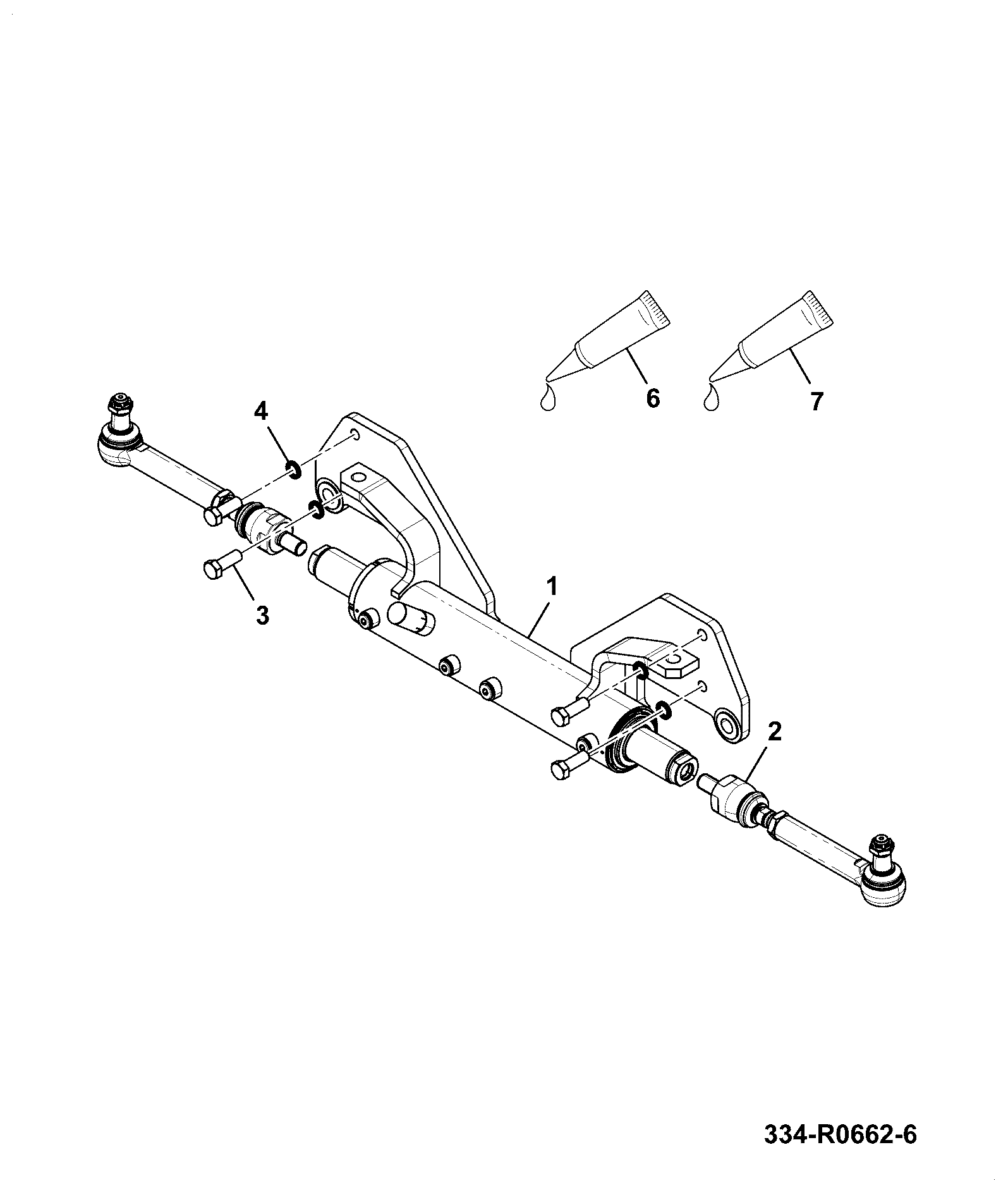

DIAG-E490-30-1-393660 E490-30-1 OTHER RAMS DETAILS REAR STEERING CYLINDER ABI
