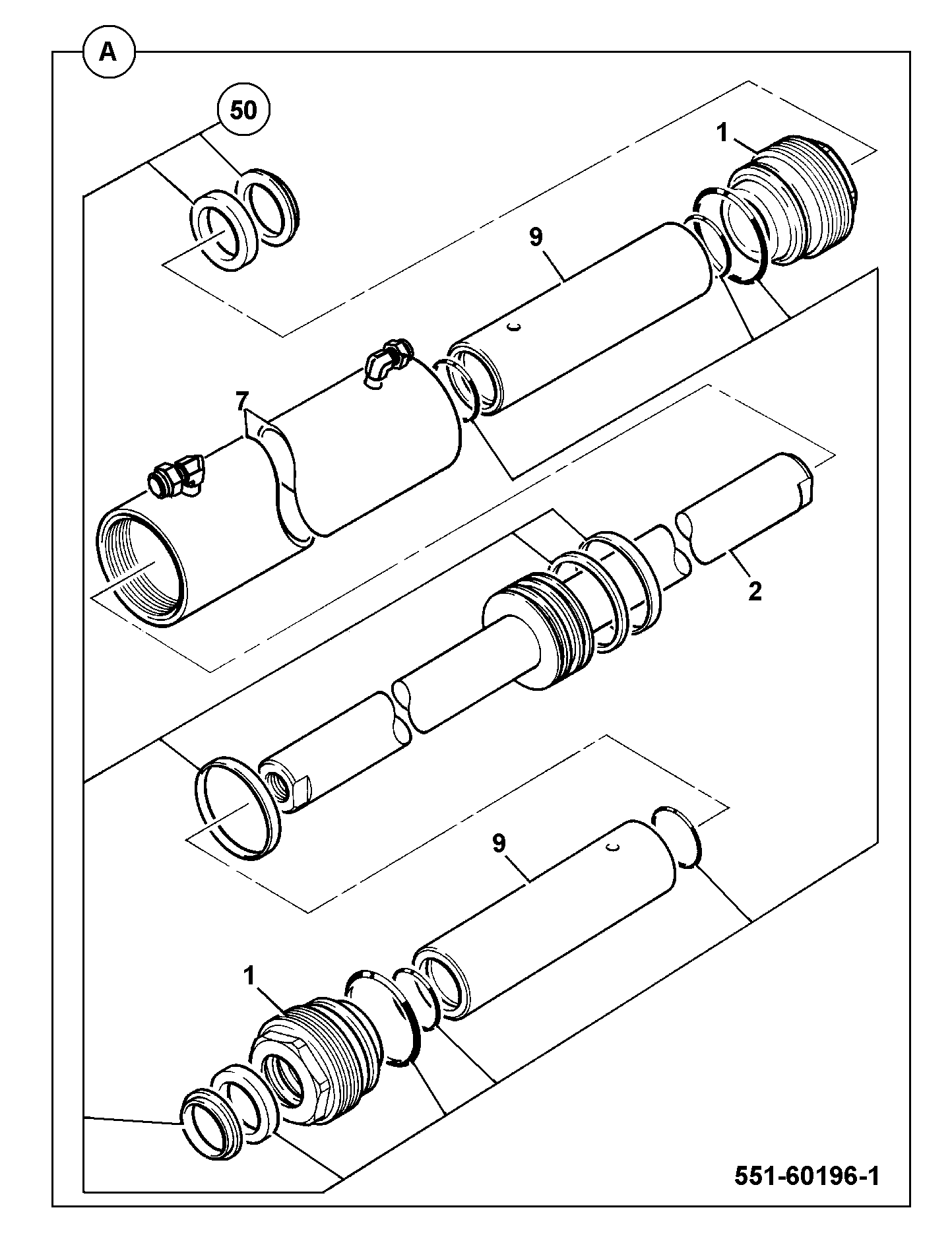

E490-1-103 OTHER RAMS POWERSLIDE 88″ REARFRAME Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	ASSY END CAP 60x25 (333/D5256) 333/D5296	1	AVAILABLE TO ORDER	$374.82	Quantity
2	GA PISTON ROD 25X1690 (PSS Short) 333/D7581	1	AVAILABLE TO ORDER	$789.18	Quantity
50	SERVICE SEAL KIT 60x25 HA 991/20036	1	AVAILABLE TO ORDER	$135.16	Quantity
A	'GA RAM Side Shift (Short 1700 ) *SPACER 553/60227	1	AVAILABLE TO ORDER	$2,222.48	Quantity

Showing 1 to 4 of 4 parts
