Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| GA RAM BUCKET 1CXR 70x40 556/60486 | 1 | $2,133.91 | ||||
| 1 | ASSY E/CAP 70X40 (332/D1338+ Bearing) 332/D4840 332/D4842 | 1 | $587.84 | |||
| 2 | WA PISTON ROD-GUARD 40x60 590/40850 | 1 | $700.09 | |||
| 2A | BUSH 809/00105 | 1 | $126.62 | |||
| 3 | P/HEAD ASSY 70X40 (595/10027) 595/27600 | 1 | $108.09 | |||
| 4 | DOWEL 6*20Mmm (KANBAN) 826/01182 | 1 | $8.07 | |||
| 5 | WEAR RING 70 x 6.8 2411/7912 | 1 | $11.42 | |||
| 6 | PISTON SEAL 70 x 6 2411/1131 | 1 | $36.88 | |||
| 7 | WA CYLINDER 70x523.5 556/70486 | 1 | $1,333.20 | |||
| 7A | BUSH 809/00107 | 1 | $169.45 | |||
| 7B | PIVOT PIN SEAL 35-45-5 813/00467 | 1 | $22.40 | |||
| 10 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 42 | (S) CAP 3/8BSP USE 816/90044 816/00189 | 1 | $4.43 | |||
| 50 | SERVICE SEAL KIT 70X40 UN 332/D4850 991/20021 | 1 | $81.95 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-
DIAG-E465-3-1-394197 E465-3-1 RAMS DIPPER EXTENSION RAM 333/W5821
View Diagram -

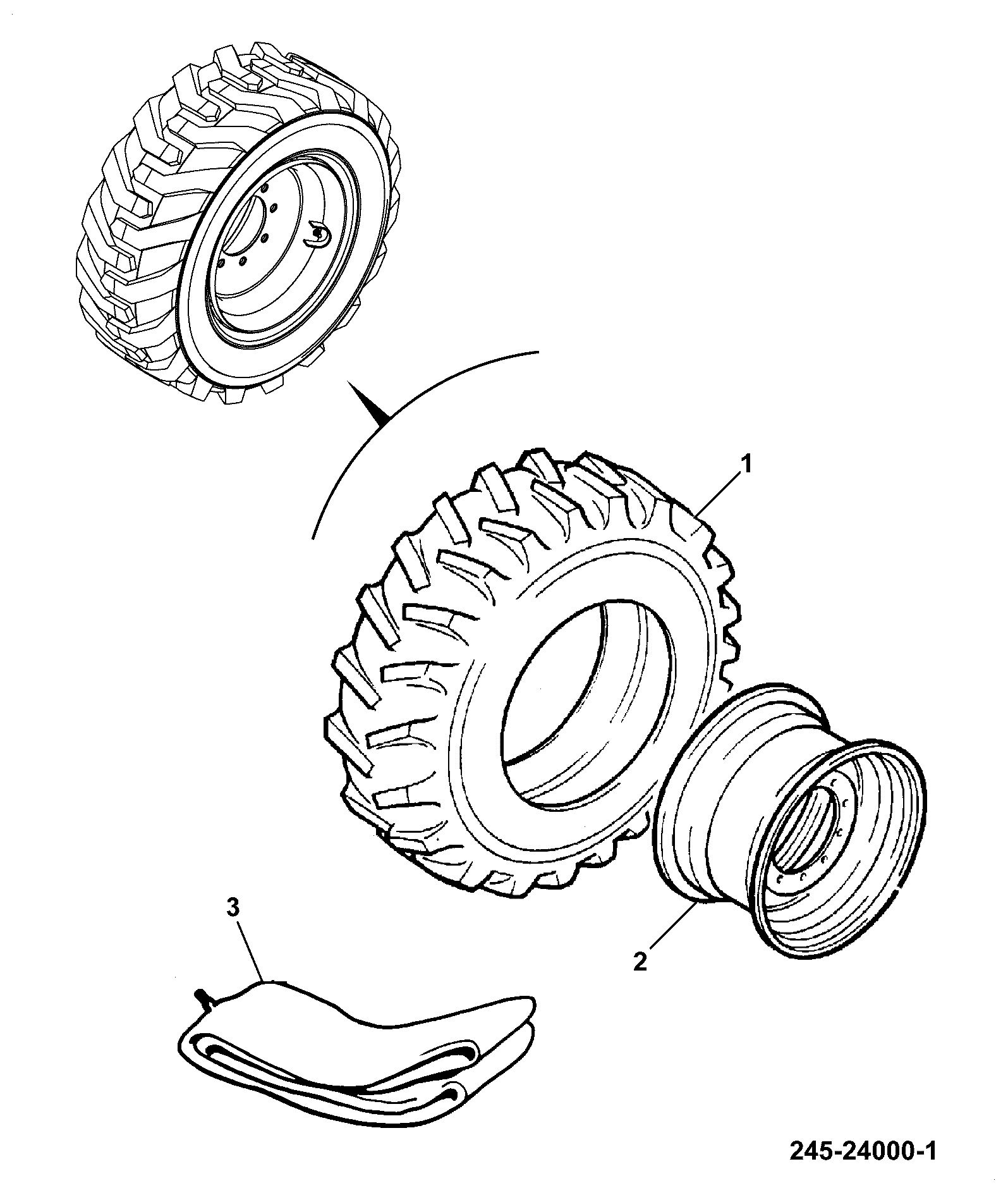

DIAG-F330-2-1-394197 F330-2-1 WHEELS AND TYRES FRONT AND REAR GRASSLAND
View Diagram -

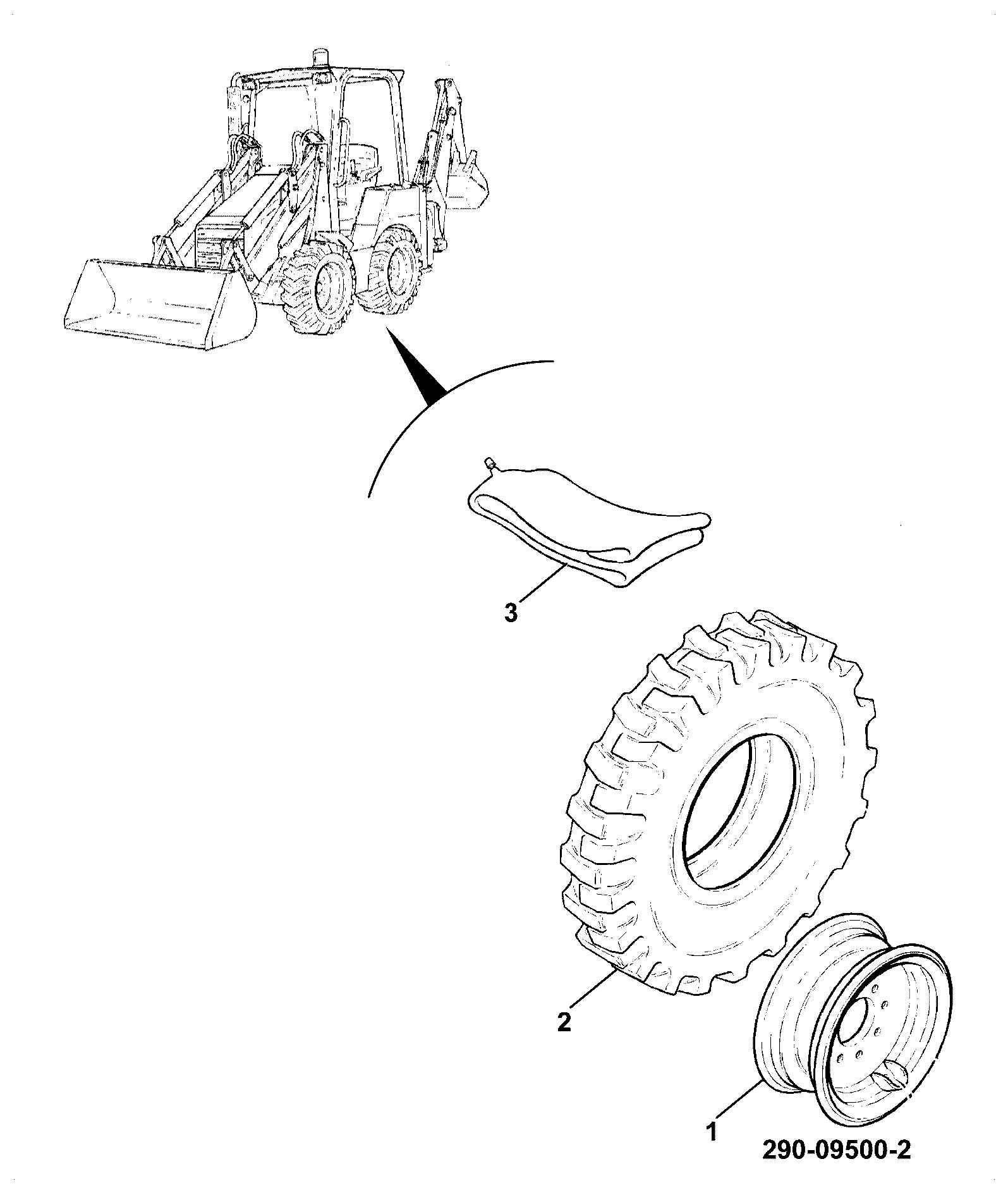

DIAG-F330-7-1-394197 F330-7-1 WHEELS AND TYRES FRONT AND REAR SOLIDEAL,14PLY
View Diagram
