Scroll to zoom Click a part # to view details

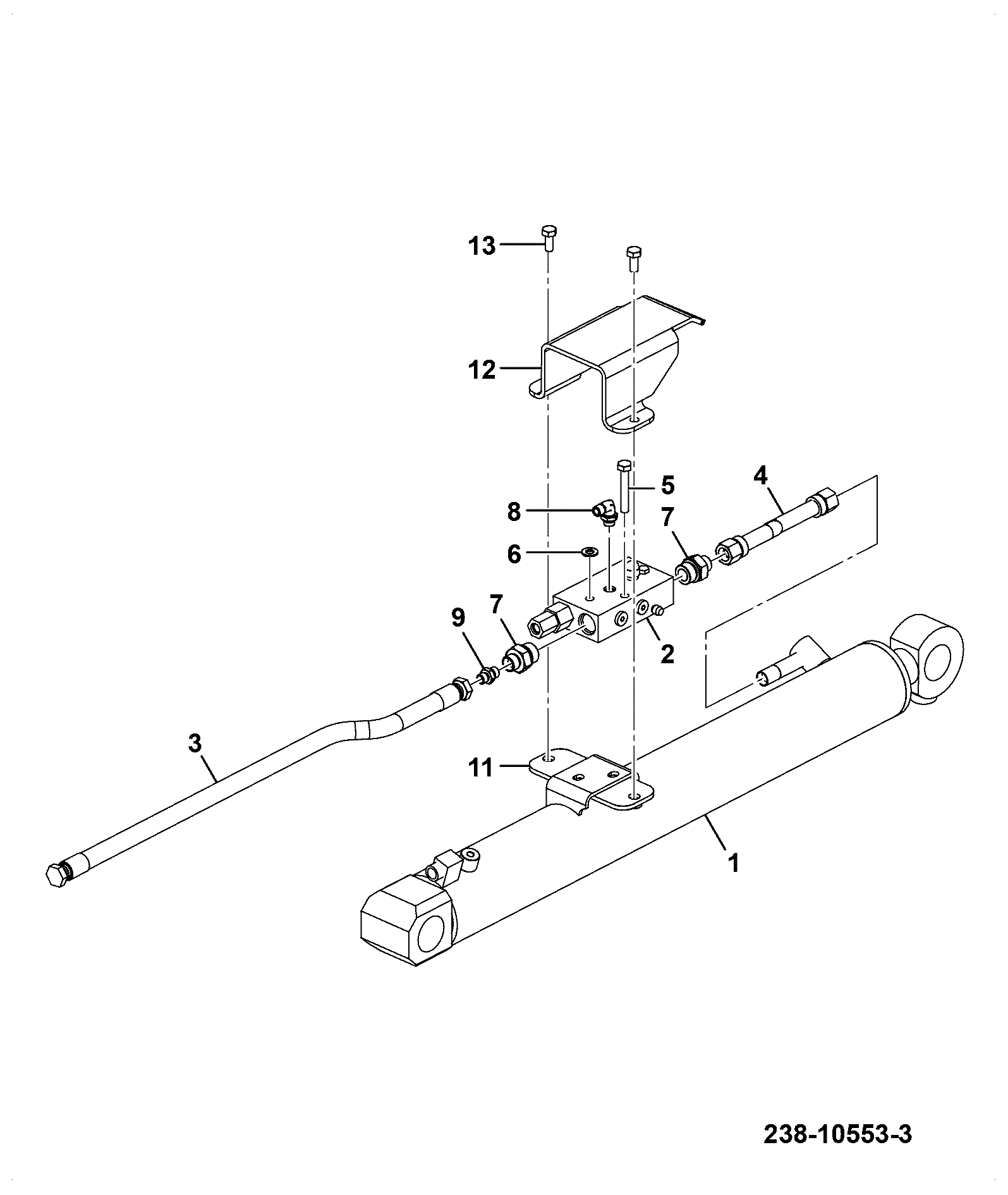

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Adaptor /2BSP X 7/8-14 816/90041 | 1 | $171.61 | |||
| 2 | BALL VALVE 25/222123 | 1 | $576.49 | |||
| 3 | 1.1/16 - 7/8UNF BULKHEAD ADAPTOR 333/R2137 | 1 | $44.19 | |||
| 5 | HOSE -08 BSP HP 1000mm B 333/S1410 | 1 | $62.73 | |||
| 6 | HOSE -08 BSP HP 745mm B 333/R7188 | 1 | $51.71 | |||
| 7 | HOSE -08 BSP HP 745mm B 333/R7340 | 1 | $47.62 | |||
| 8 | QRC 12 FEMALE - 12 SAE 45/920047 | 1 | $194.17 | |||
| 9 | COUPLING QR MALE HQ12 - 12SAE 45/920048 | 1 | $58.34 | |||
| 10 | 90 DEG ELBOW M/F 816/40016 816/90078 | 1 | $22.91 | |||
| 11 | LABEL - BUCKET C/O 333/V3544 | 1 | $1.79 | |||
| 12 | LABEL - BUCKET C/O - LHS 333/V3627 | 1 | $1.79 | |||
Showing 1 to 11 of 11 parts
