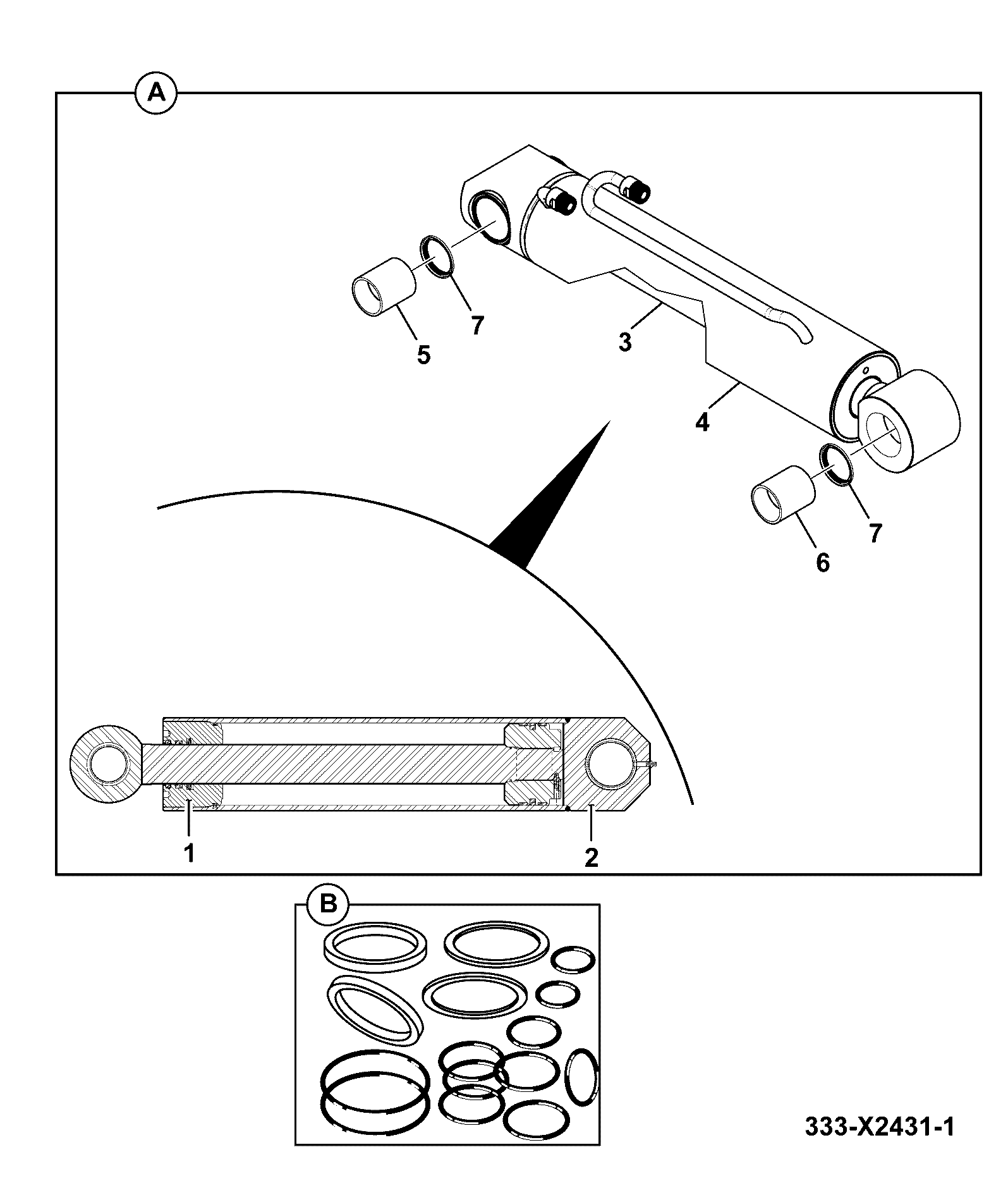

E425-1-1 RAMS LOADER LIFT LIFT RAM ASSEMBLY,VOLVO GREY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Kit Seal 334/P2766	1	AVAILABLE TO ORDER	$320.94	Quantity
4	Rod Piston 334/P2769	1	AVAILABLE TO ORDER	$1,166.49	Quantity
6	ROD END BUSHING (50 X 40 X 60) 334/P2771	1	AVAILABLE TO ORDER	$165.61	Quantity
7	HEAD BUSHING (50 X 40 X 80) 334/P2772	1	AVAILABLE TO ORDER	$131.86	Quantity
A	RAM LIFT 75X50X830 RL VOLVO GREY 333/L6514	1	AVAILABLE TO ORDER	$2,127.69	Quantity

Showing 1 to 5 of 5 parts

DIAG-E390-45-1-399914 E390-45-1 OTHER VALVES FAN REVERSING,ASSEMBLY,TIER 4
View Diagram
DIAG-E425-10-1-399914 E425-10-1 RAMS LOADER LIFT TILT RAM RADIAL LIFT,VOLVO,TIER 4,GREY
View Diagram

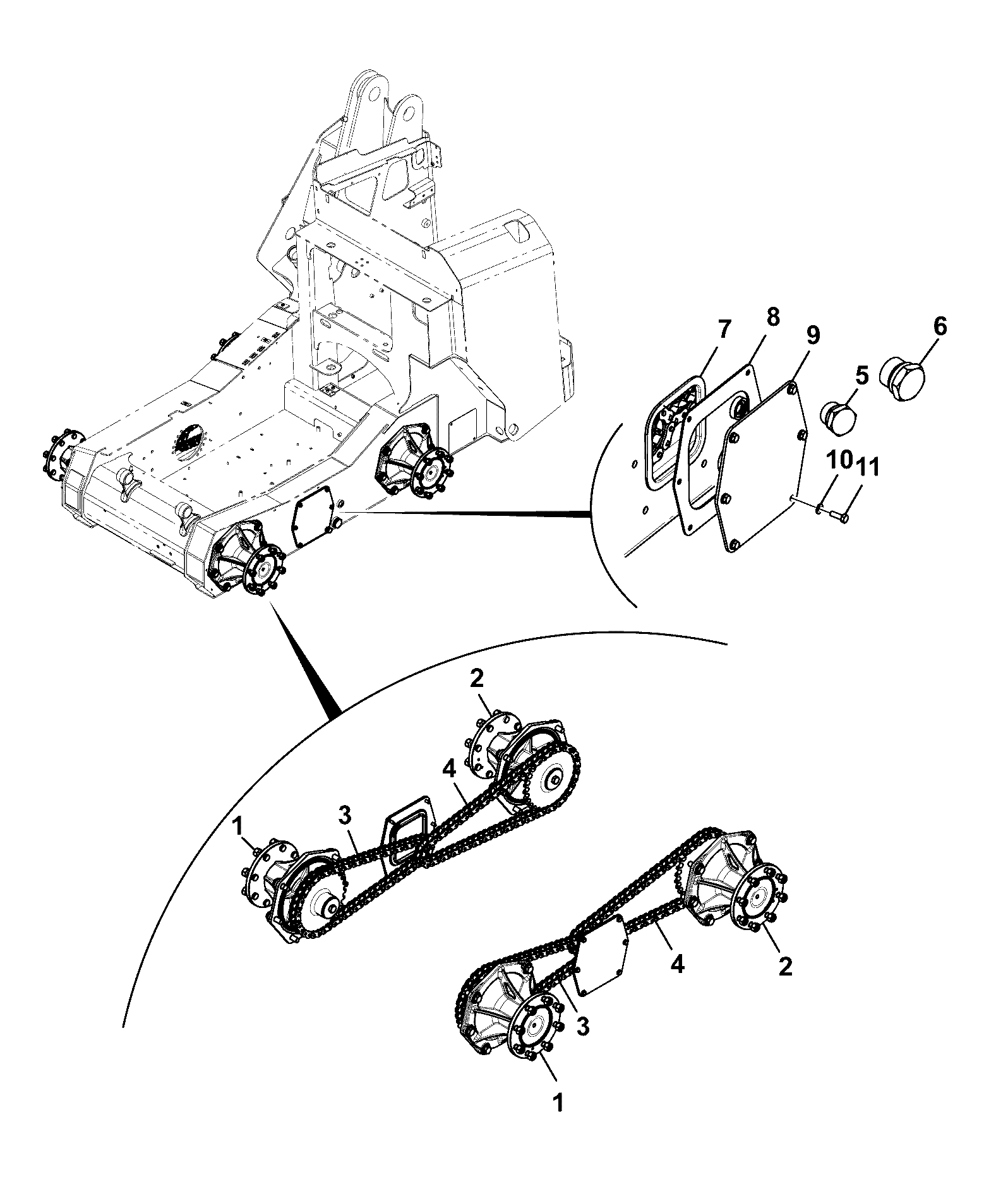

DIAG-F0-10-1-399914 F0-10-1 TRANSMISSION INSTALLATION ASSEMBLIES DRIVE WHEELED, SP, VOLVO, YELLOW
