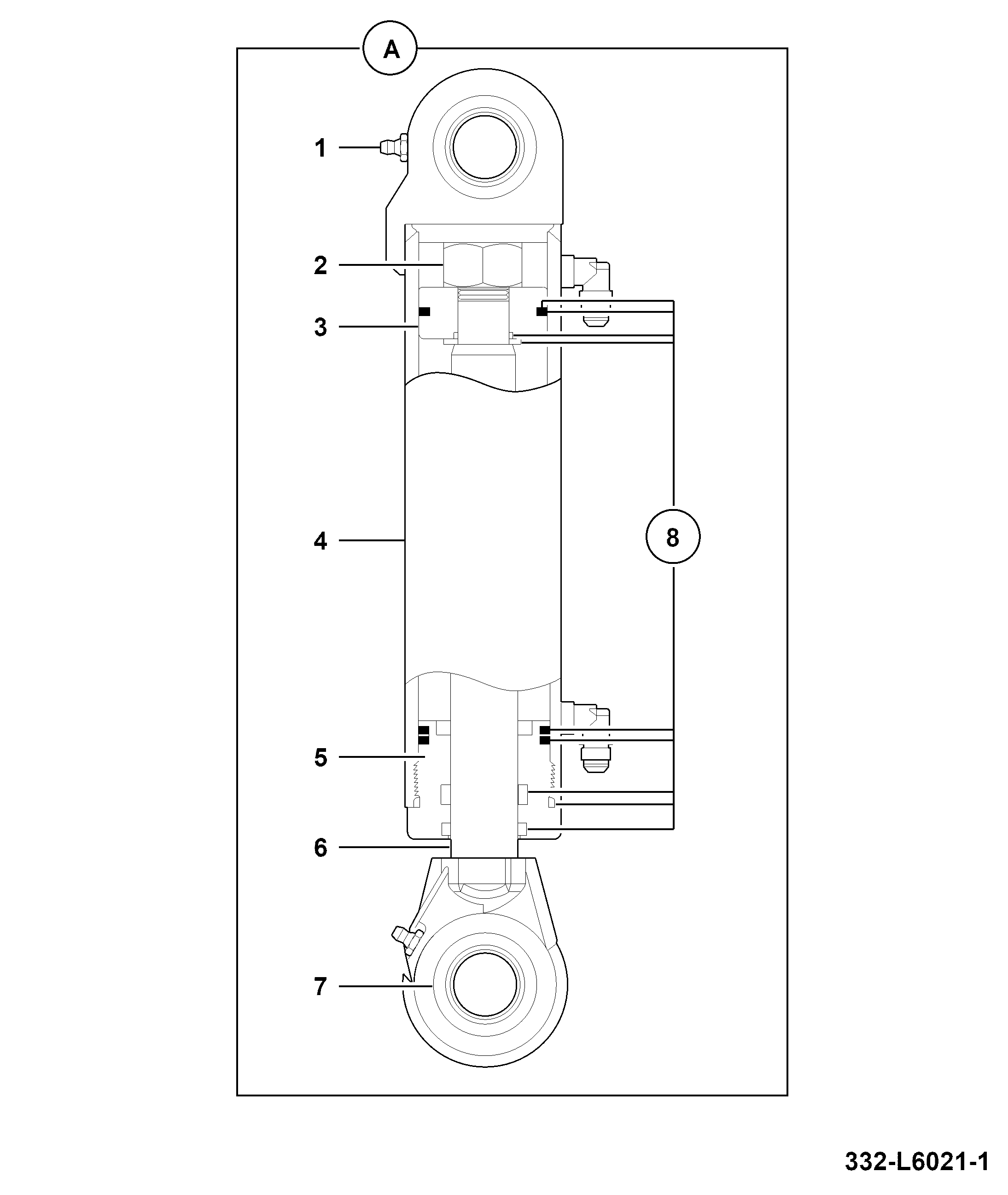

E425-1-1 RAMS LOADER LIFT LIFT RAM ASSEMBLY,BLACK Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Kit Seal 334/P2766	1	AVAILABLE TO ORDER	$320.94	Quantity
4	Rod Piston 334/P2769	1	AVAILABLE TO ORDER	$1,166.49	Quantity
6	ROD END BUSHING (50 X 40 X 60) 334/P2771	1	AVAILABLE TO ORDER	$165.61	Quantity
7	HEAD BUSHING (50 X 40 X 80) 334/P2772	1	AVAILABLE TO ORDER	$131.86	Quantity
A	RAM LIFT 75X50X830 RADIAL BLACK 333/L6538	1	AVAILABLE TO ORDER	$2,603.09	Quantity

Showing 1 to 5 of 5 parts

DIAG-E420-1-1-395193 E420-1-1 RAMS LOADER CROWD/TILT TILT RAM ASSEMBLY,BLACK
View Diagram

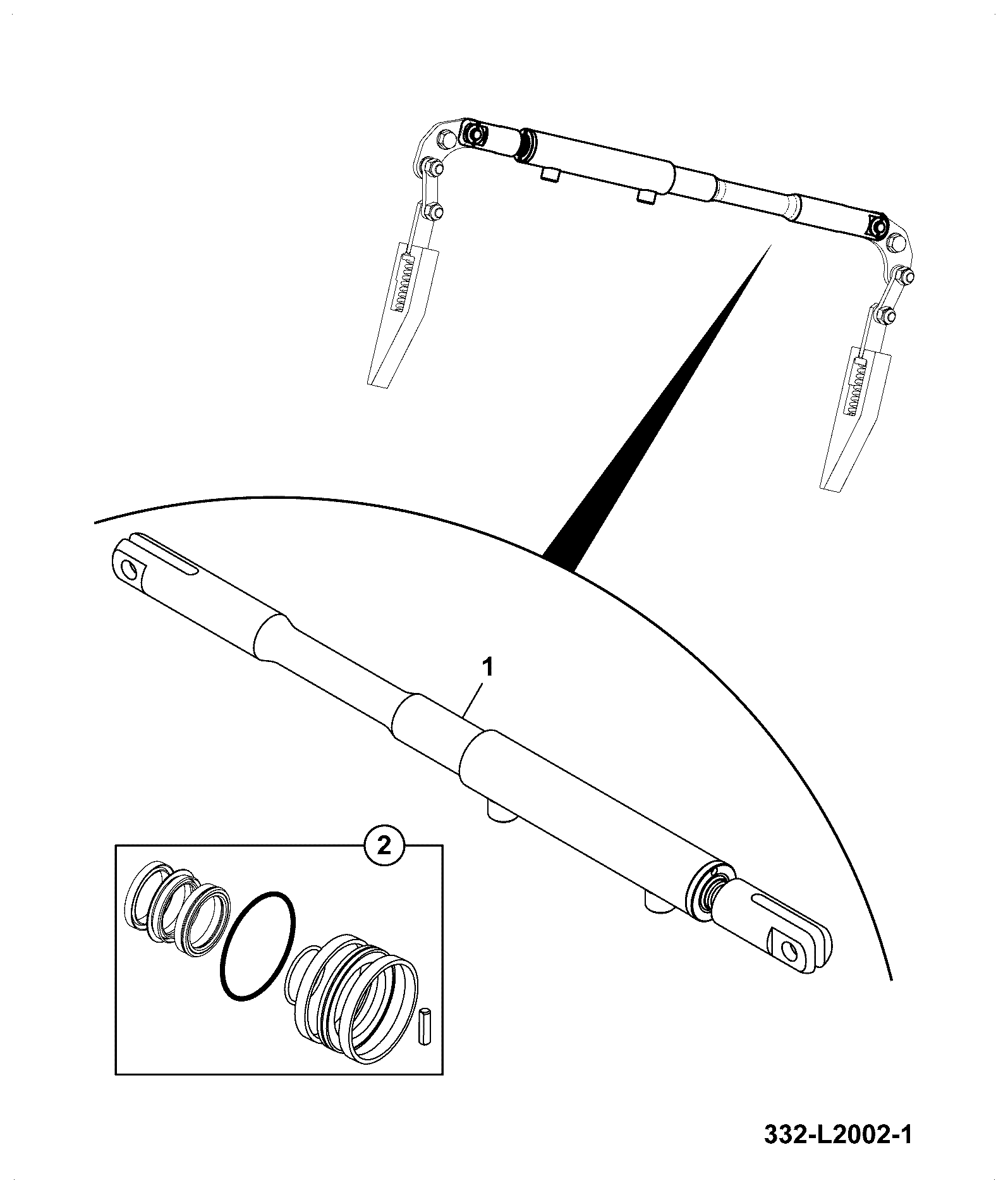

DIAG-E490-1-1-395193 E490-1-1 OTHER RAMS QUICKHITCH CYLINDER,ASSEMBLY
